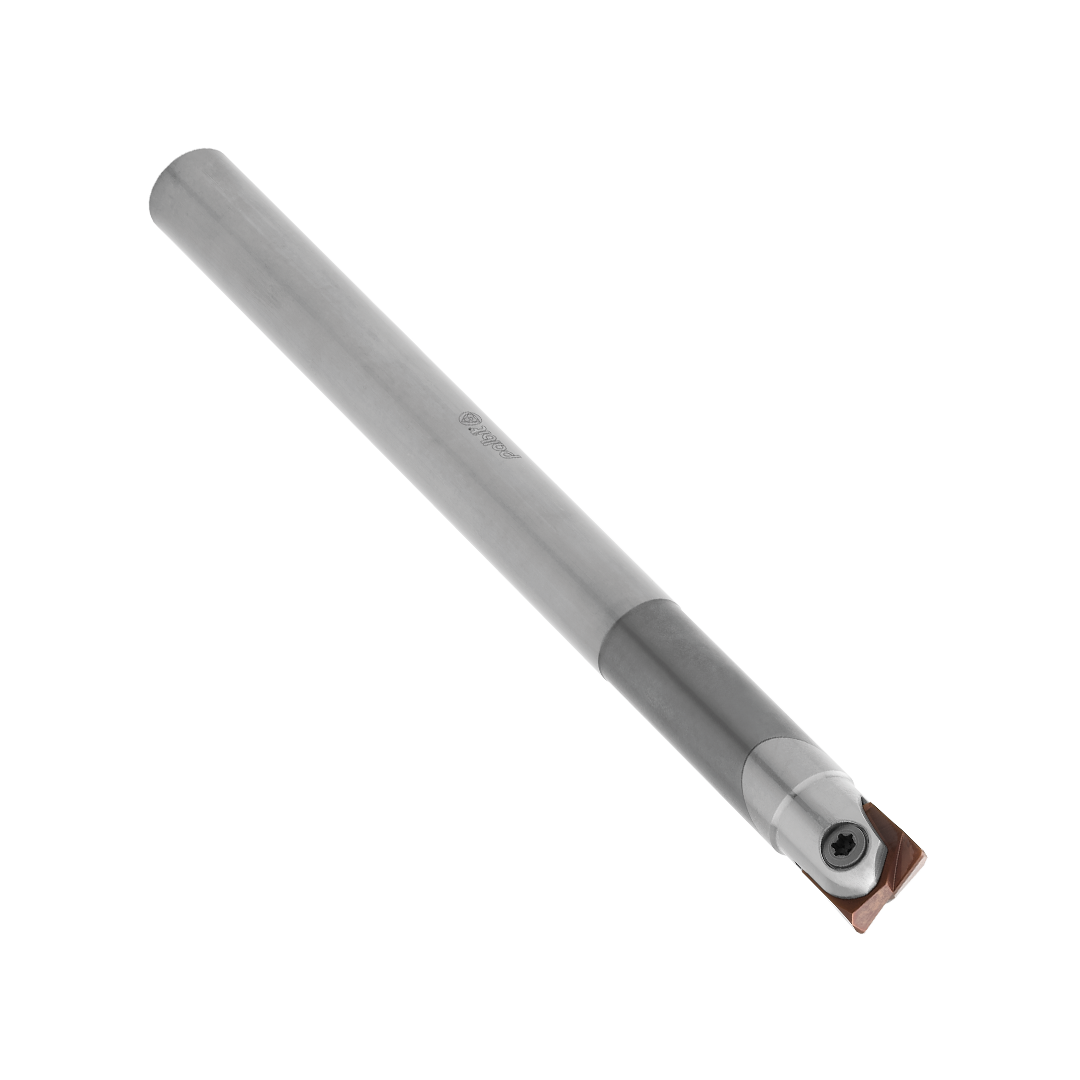

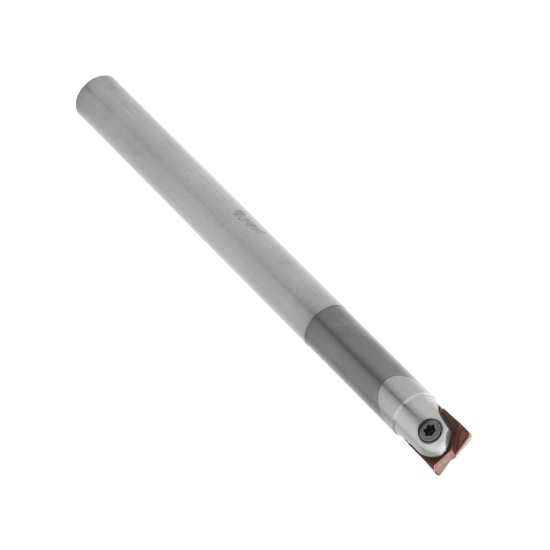

MILLING TOOL 008E62090-02-U008100-035
181222000 | FRESA 008E62090-02-U008100-035
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
4 mm
Connection diameter (DCONMS)
8 mm
Adaptive interface machine direction (ADINTMS)
Cylindrical Shank
Cutting diameter (DC)
8 mm
Tool cutting edge angle (KAPR)
90
Functional length (LF)
100 mm
Usable length (LU)
35 mm
Cutting item count (CICT)
2
Cutting pitch differential (CPDF)
NO
Torque (TQ)
2
Related products
Spare parts
SCREW P0300726
Article code
290084200
Reference
P0300726
TORX KEY XT08
Article code
290011700
Reference
XT08
