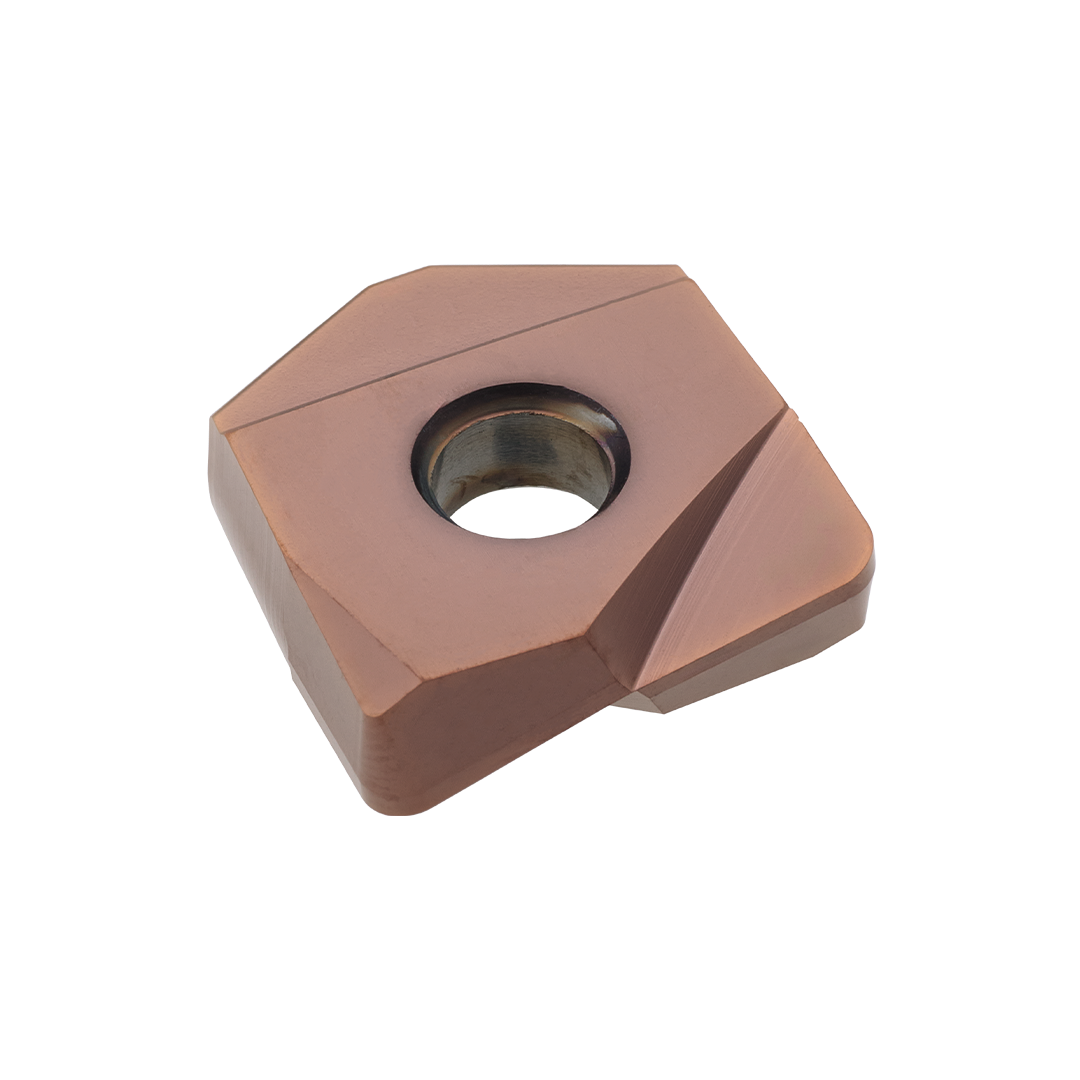

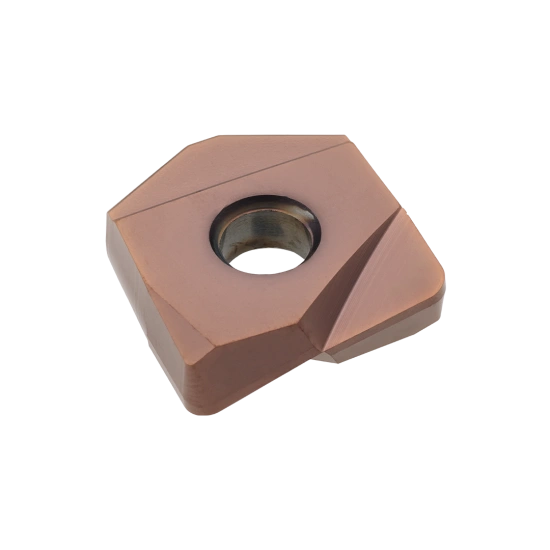

INSERT WCL-08 R0.3 PHF603
11128798F | PAST. WCL-08 R0.3 PHF603
Product data
Material classification level 1 (TMC1ISO)
- P
- H
Operation type (CTPT)
Profile Miling
Cutting edge count (CEDC)
2
Insert shape code (SC)
W

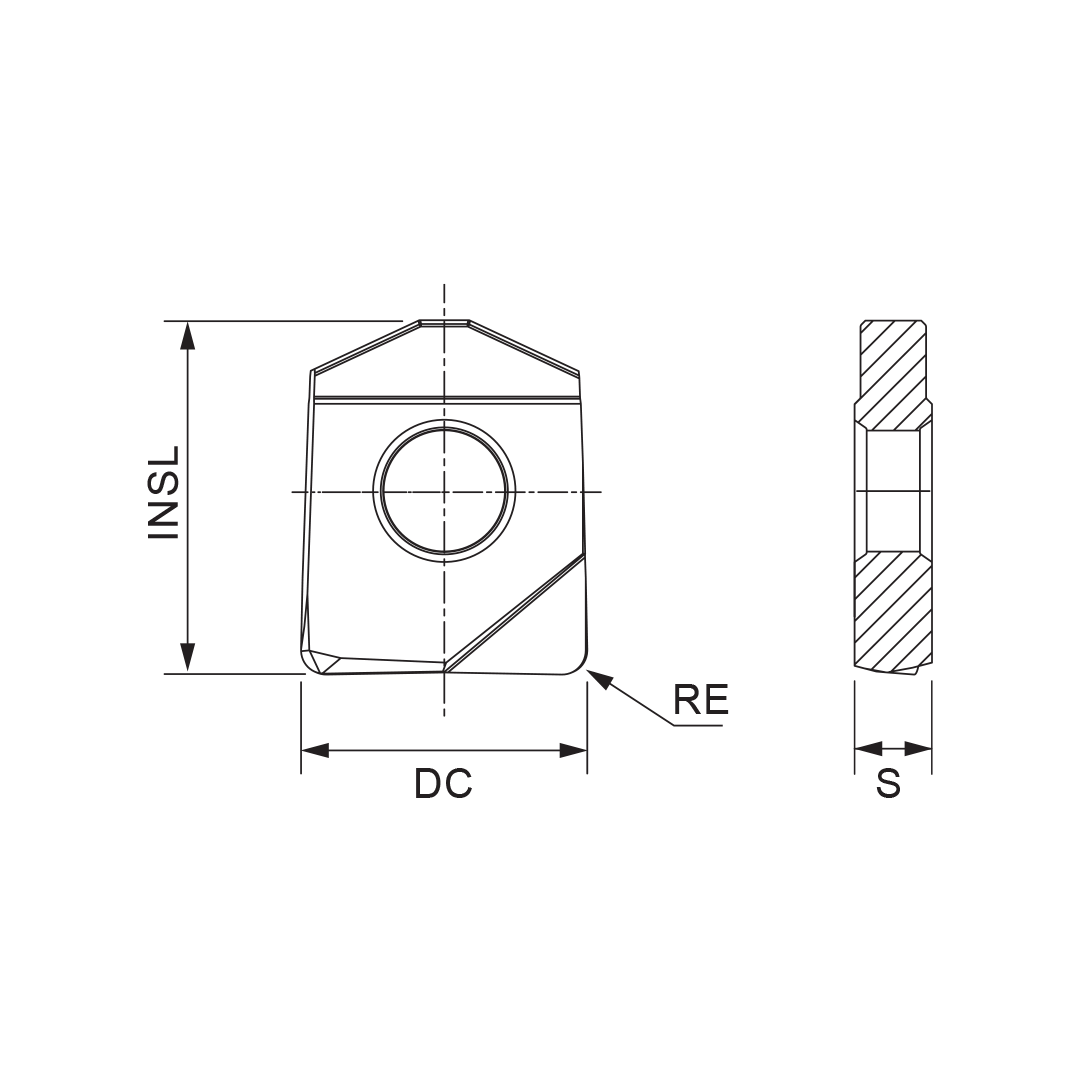

Corner radius (RE)
0.3 mm
Hand (HAND)
R
Grade (GRADE)
PHF603
Insert thickness (S)
2.1 mm
Fixing hole diameter (D1)
0.1181 mm
Insert length (INSL)
9.7 mm
Tolerance class insert (TCINS)
L
Start values
- H
VC (m/min) (70 - 270)
AP (mm) (0.01 - 2.5)
AP (mm) (0.01 - 2.5)
- P
VC (m/min) (180 - 310)
AP (mm) (0.01 - 2.5)
AP (mm) (0.01 - 2.5)
