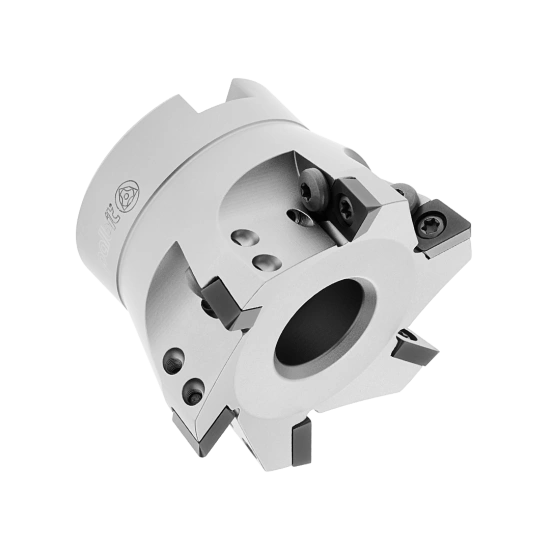

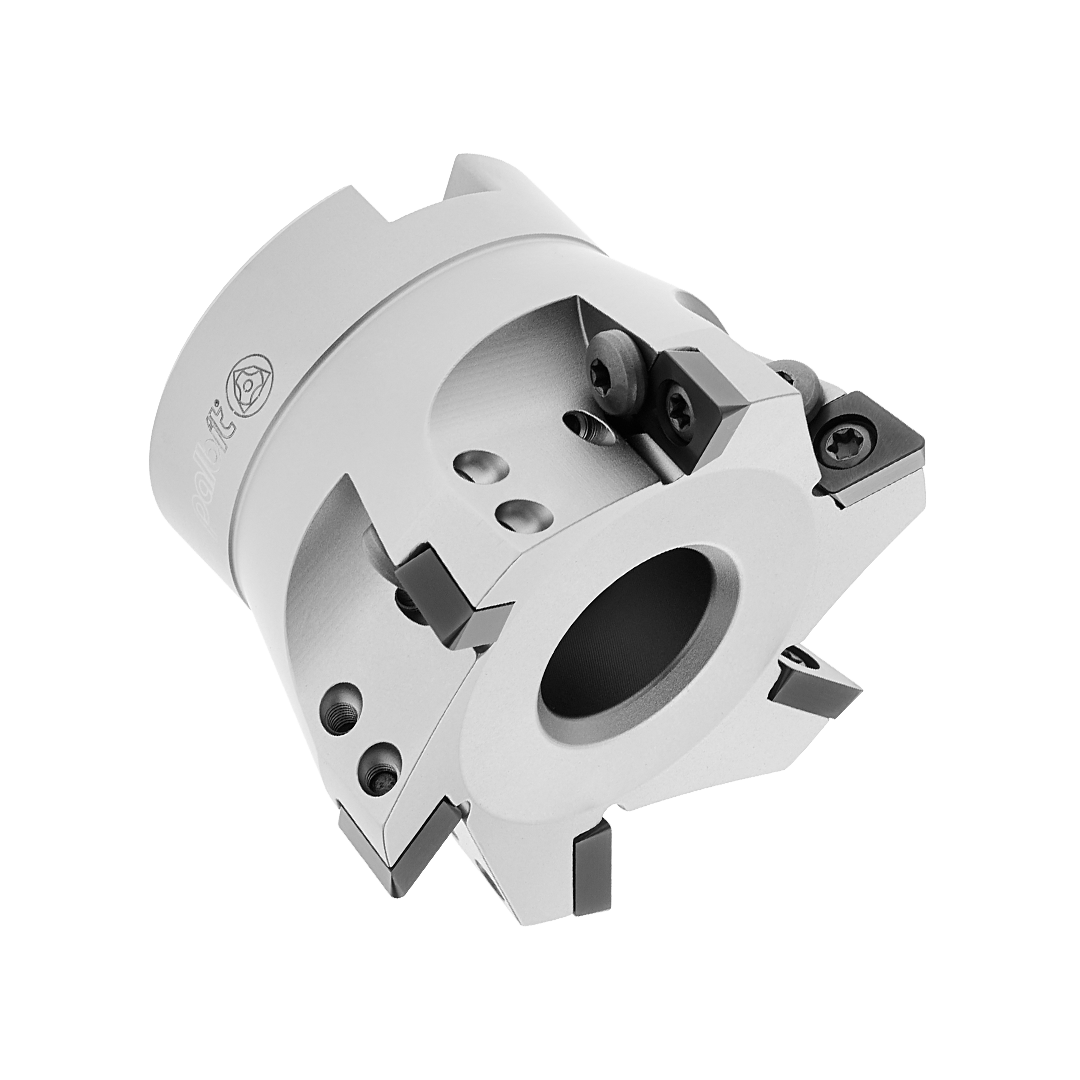

MILLING TOOL 080C40595-07-07-027050
181027900 | FRESA 080C40595-07-07-027050
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
1 mm
Axial rake angle (GAMP)
7
Connection diameter (DCONMS)
27 mm
Adaptive interface machine direction (ADINTMS)
Arbor Mounting
Cutting diameter (DC)
80 mm
Tool cutting edge angle (KAPR)
95
Functional length (LF)
50 mm
Radial rake angle (GAMF)
-2,2
Cutting item count (CICT)
7
Contact surface diameter machine side (DCSFMS)
60 mm
Cutting pitch differential (CPDF)
NO
Torque (TQ)
3
Spare parts
SCREW P0350800
Article code
290019900
Reference
P0350800
TORX KEY XT15-S35
Article code
290012400
Reference
XT15-S35
