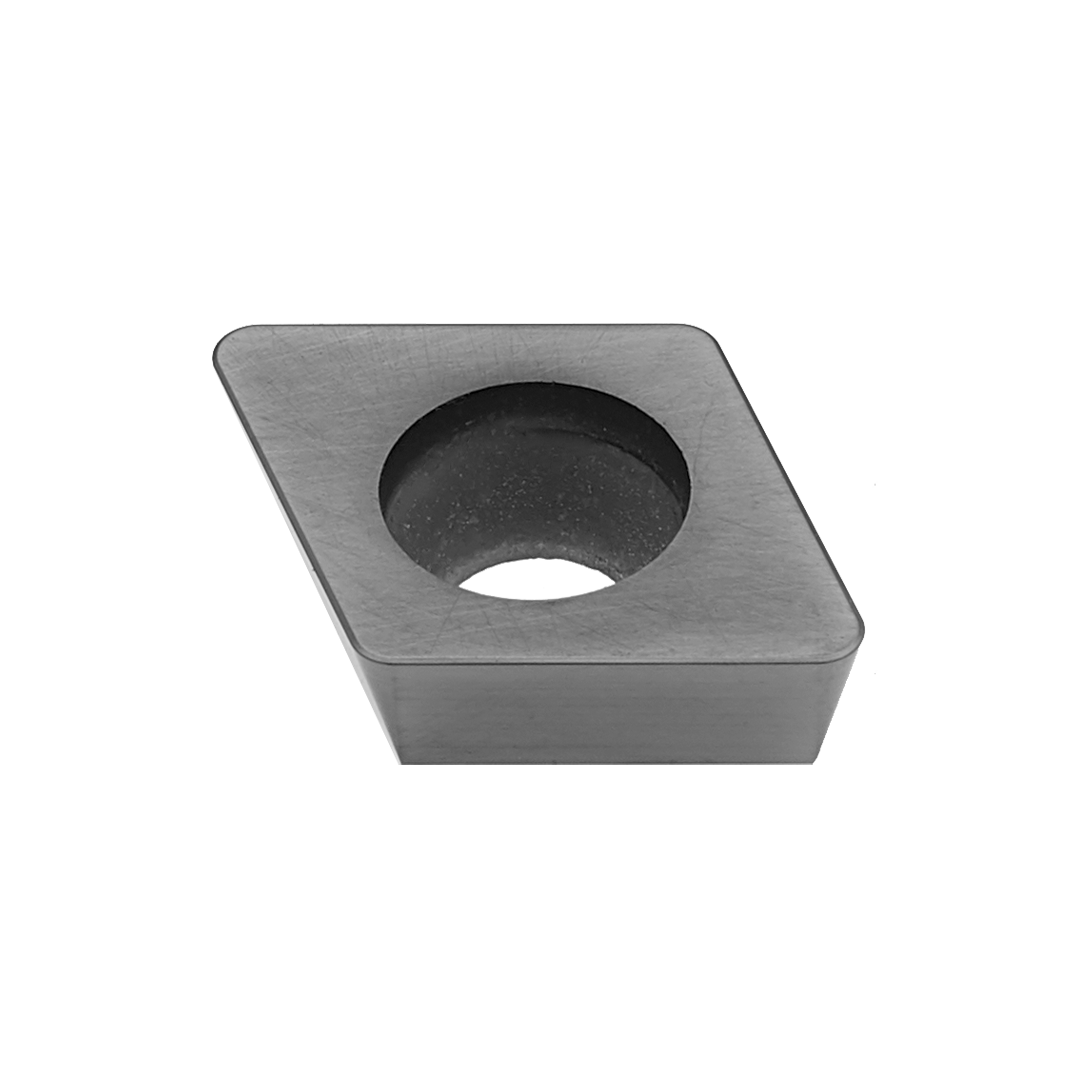

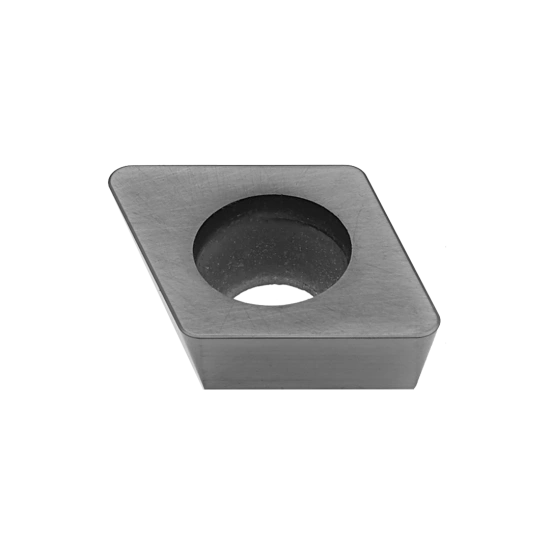

INSERT XDHW 10T310 PH6920
111056568 | PAST. XDHW 10T310 PH6920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Profile Miling
Cutting edge count (CEDC)
2

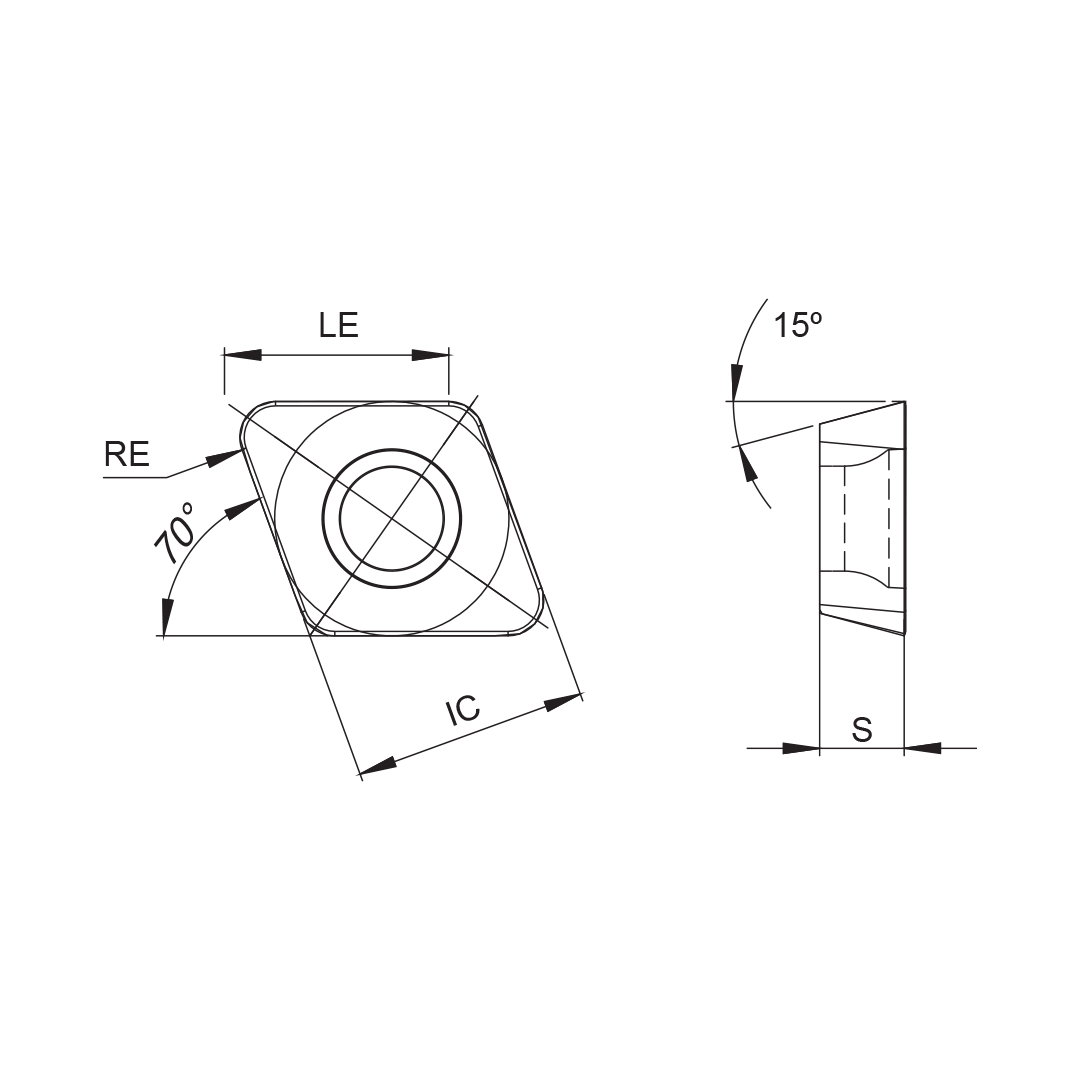

Inscribed circle diameter (IC)
10 mm
Insert shape code (SC)
X
Cutting edge effective length (LE)
9.9 mm
Corner radius (RE)
1 mm
Hand (HAND)
N
Grade (GRADE)
PH6920
Insert thickness (S)
3.97 mm
Fixing hole diameter (D1)
0.1614 mm
Tolerance class insert (TCINS)
H
Start values
- K
VC (m/min) (80 - 250)
- M
VC (m/min) (100 - 190)
AP (mm) (0.1 - 0.35)
AP (mm) (0.1 - 0.35)
- P
VC (m/min) (140 - 210)
AP (mm) (0.1 - 0.35)
AP (mm) (0.1 - 0.35)
