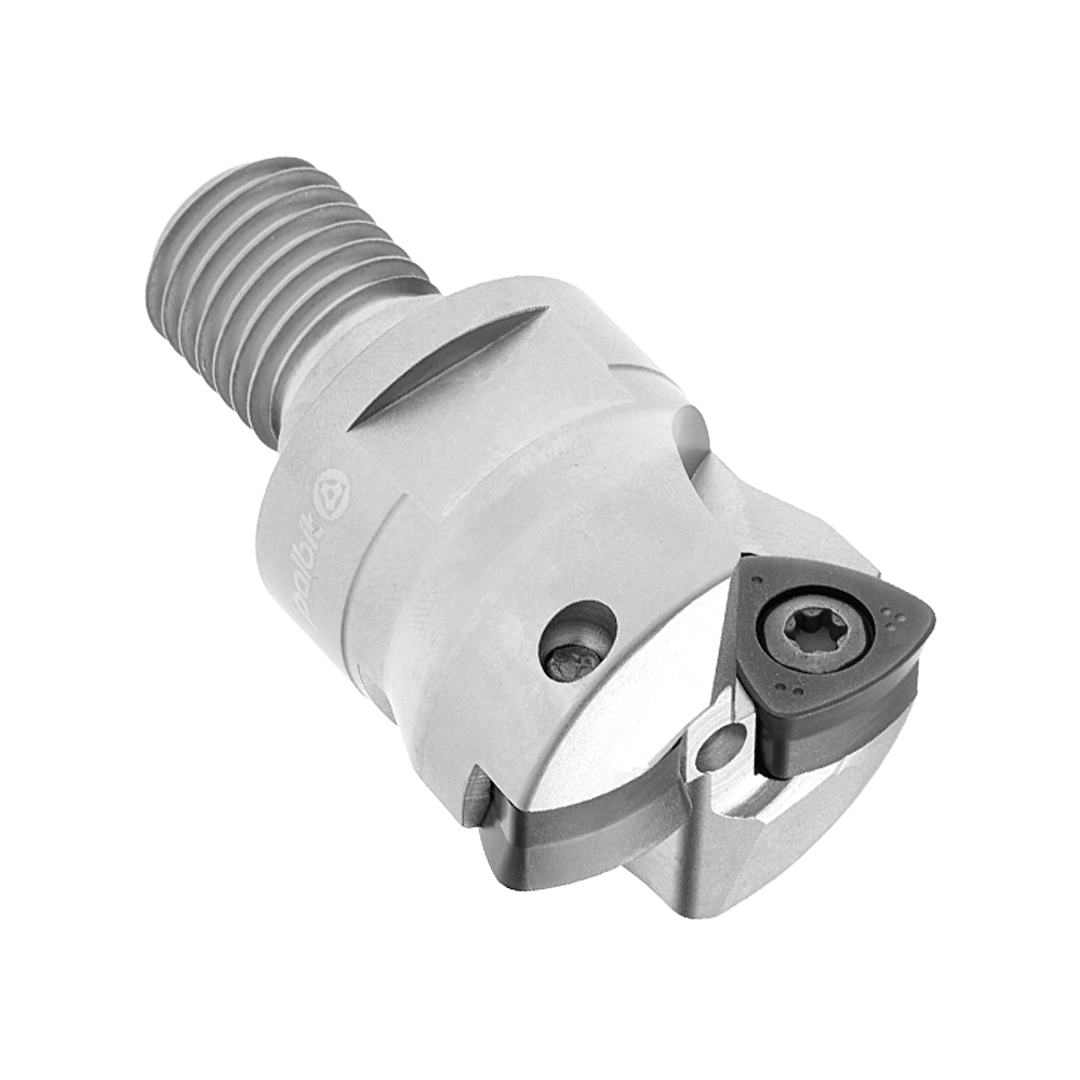

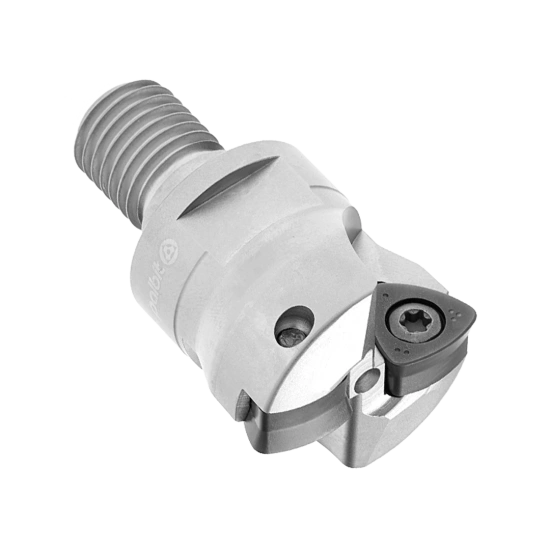

MILLING TOOL 035R50060-02-M16035
181039000 | FRESA 035R50060-02-M16035
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
1.8 mm
Axial rake angle (GAMP)
0
Connection diameter (DCONMS)
35 mm
Adaptive interface machine direction (ADINTMS)
Threaded Coupling
Cutting diameter (DC)
35 mm
Tool cutting edge angle (KAPR)
60
Functional length (LF)
35 mm
Radial rake angle (GAMF)
0
Cutting item count (CICT)
2
Contact surface diameter machine side (DCSFMS)
29 mm
Cutting pitch differential (CPDF)
NO
Torque (TQ)
5
Connection Thread Nominal Size Machine Side (THSZMS)
M16
Spare parts
SCREW P0451400
Article code
290006700
Reference
P0451400
TORX KEY DT2050
Article code
290078400
Reference
DT2050
TORX KEY XT20-S40
Article code
290013200
Reference
XT20-S40
