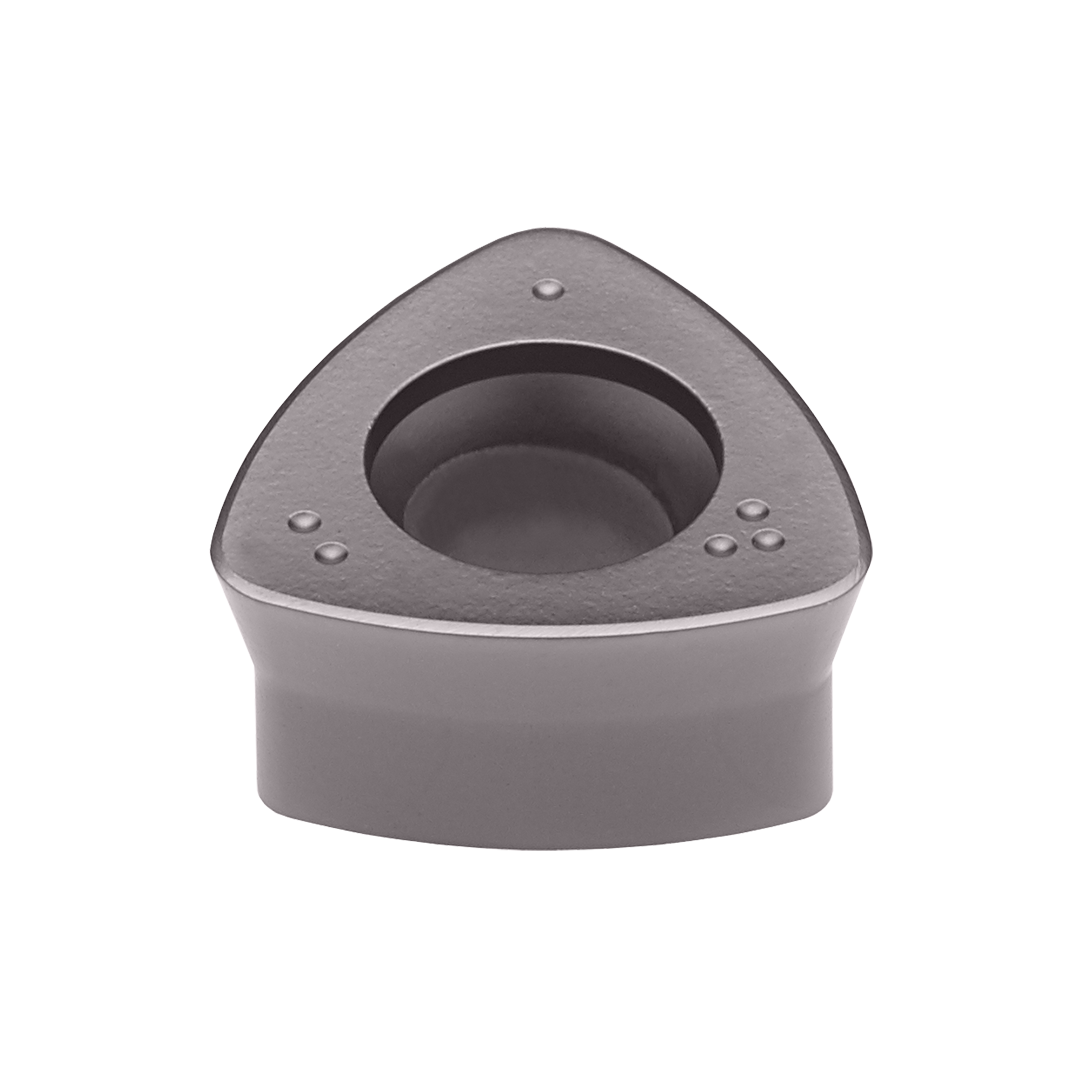

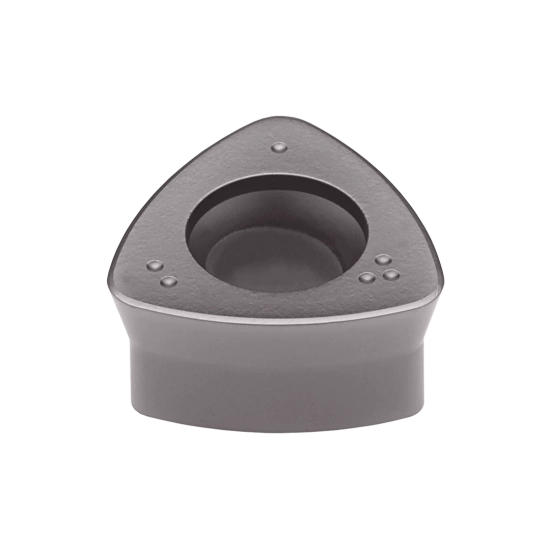

INSERT WNMW 1207-SP PH7740
1121148G6 | PAST. WNMW 1207-SP PH7740
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
- S
Operation type (CTPT)
High Feed Milling
Cutting edge count (CEDC)
3

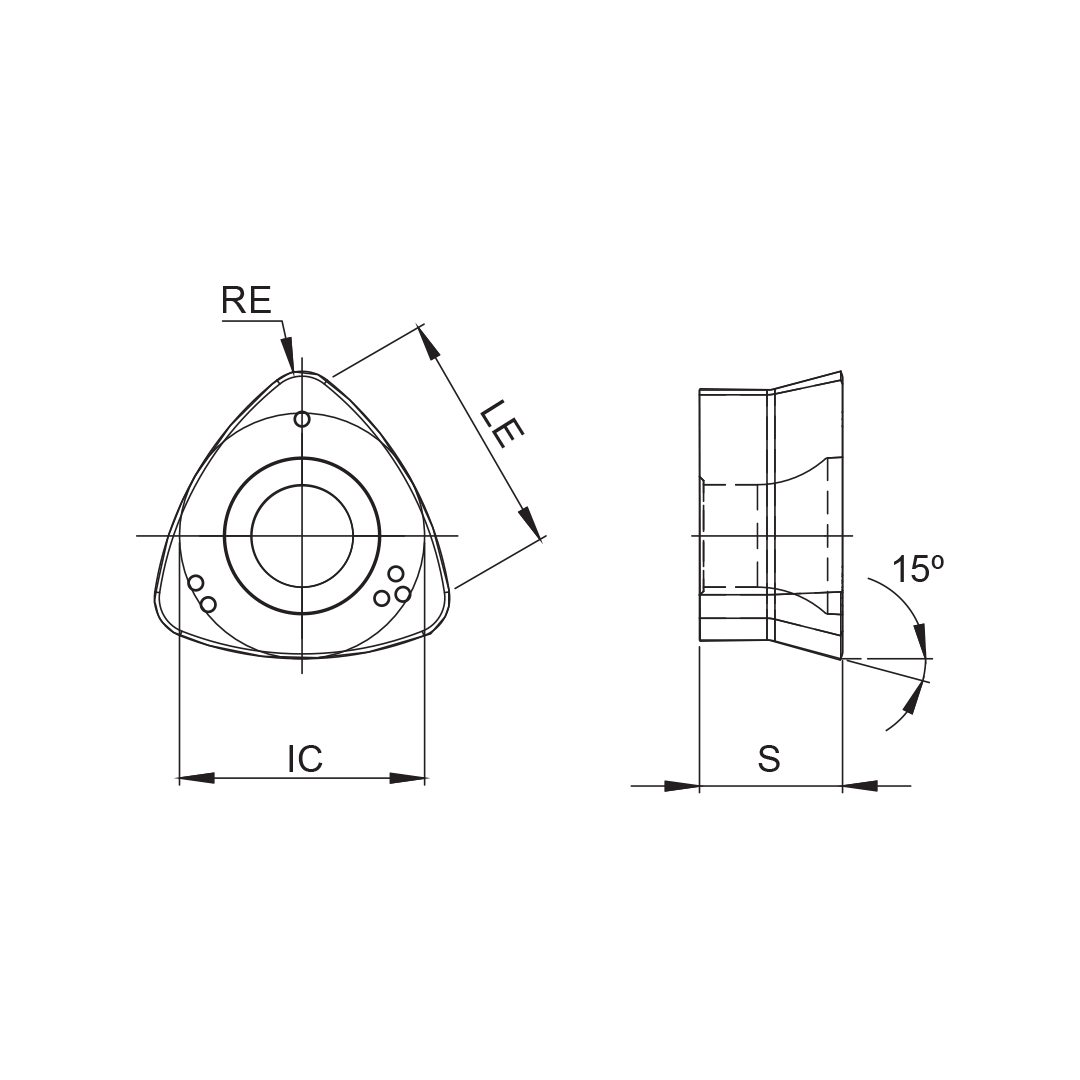

Inscribed circle diameter (IC)
12 mm
Insert shape code (SC)
W
Cutting edge effective length (LE)
11.9 mm
Corner radius (RE)
2 mm
Hand (HAND)
R
Grade (GRADE)
PH7740
Insert thickness (S)
7 mm
Wiper edge length (BS)
0 mm
Chip breaker manufacturer's designation (CBMD)
SP
Fixing hole diameter (D1)
0.1969 mm
Tolerance class insert (TCINS)
M
Start values
- K
VC (m/min) (100 - 220)
- P
VC (m/min) (120 - 200)
