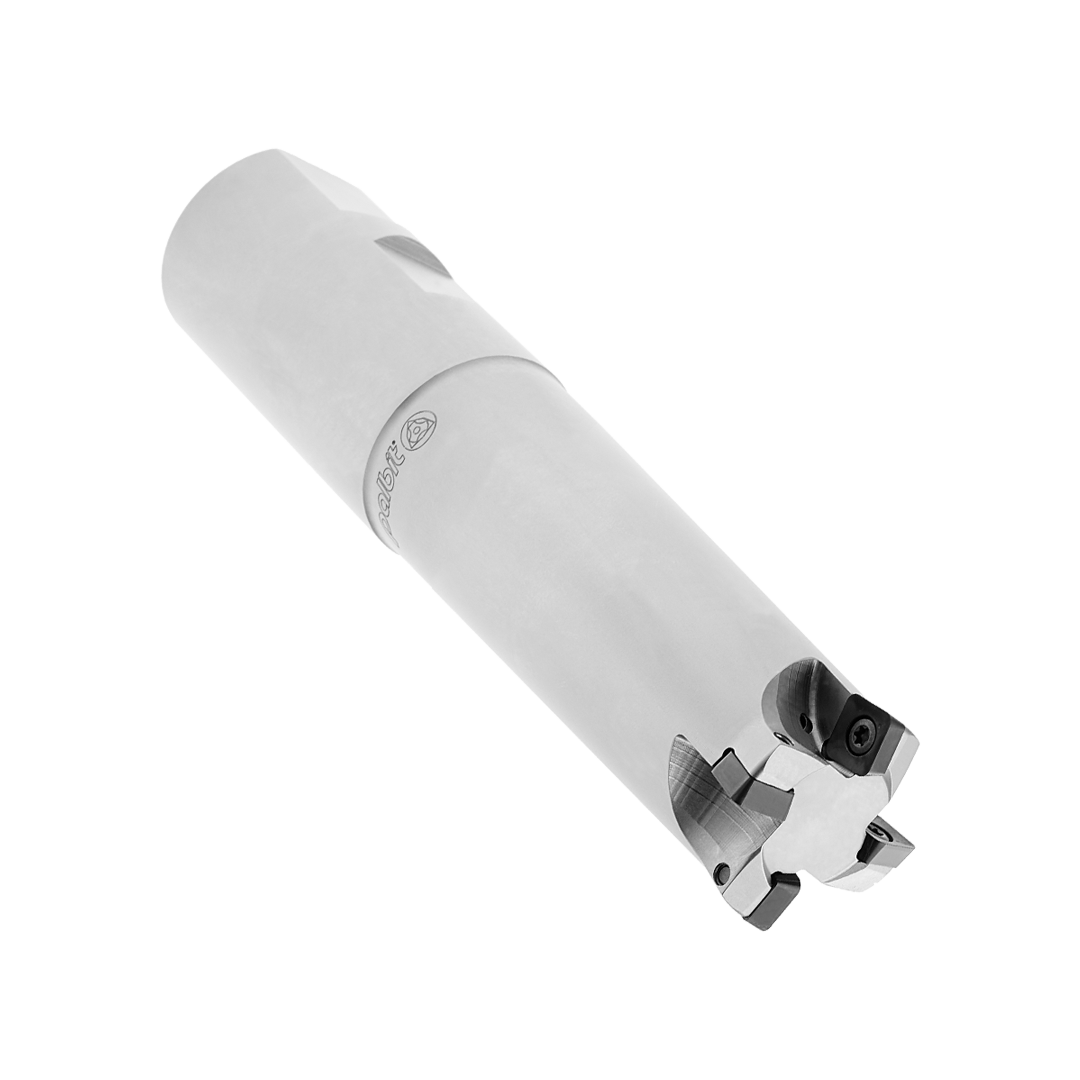

MILLING TOOL 025W06410-03-02-025140
181076400 | FRESA 025W06410-03-02-025140
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
1 mm
Axial rake angle (GAMP)
2
Connection diameter (DCONMS)
25 mm
Adaptive interface machine direction (ADINTMS)
Weldon Shank
Cutting diameter (DC)
25 mm
Tool cutting edge angle (KAPR)
10
Functional length (LF)
140 mm
Usable length (LU)
80 mm
Radial rake angle (GAMF)
-3
Cutting item count (CICT)
3
Cutting pitch differential (CPDF)
NO
Torque (TQ)
1.4
Related products
Spare parts
SCREW P0300800
Article code
290009100
Reference
P0300800
TORX KEY DT0914
Article code
290059900
Reference
DT0914
TORX KEY XT09
Article code
290025700
Reference
XT09
