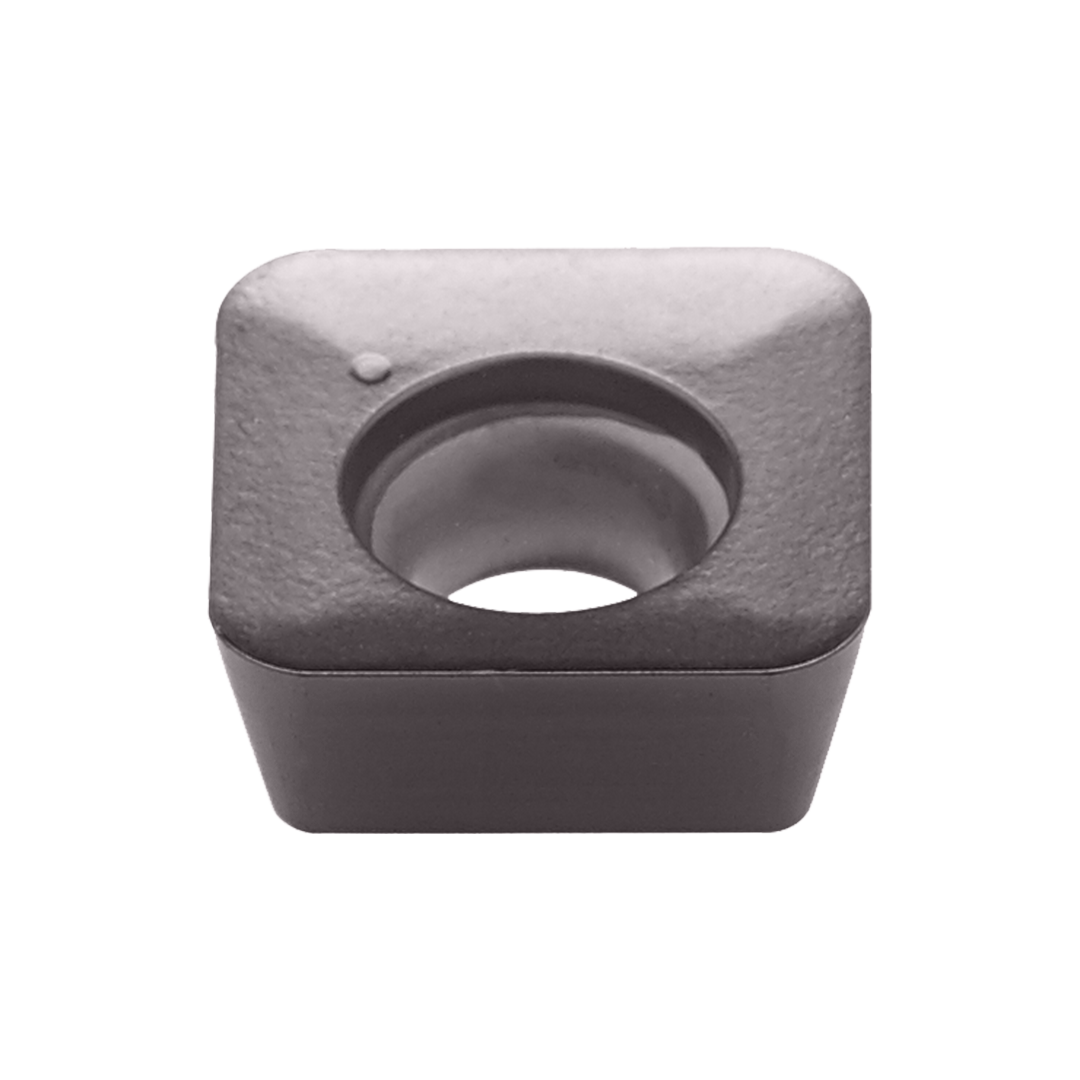

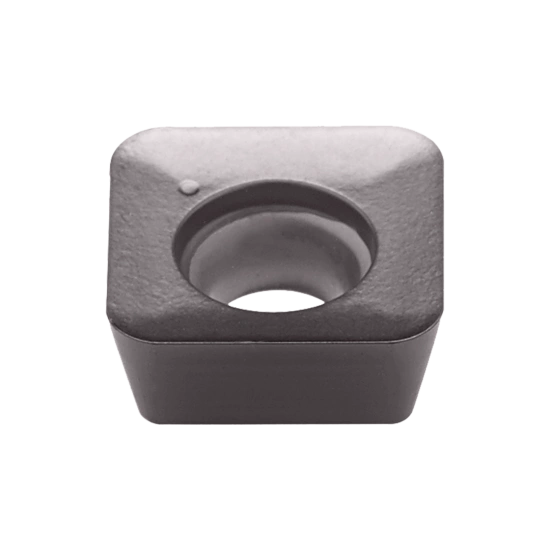

INSERT SOET 080315-MS PH7740

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

1112149G6 | PAST. SOET 080315-MS PH7740

Product data

Material classification level 1 (TMC1ISO)

Operation type (CTPT)

High Feed Milling

Cutting edge count (CEDC)

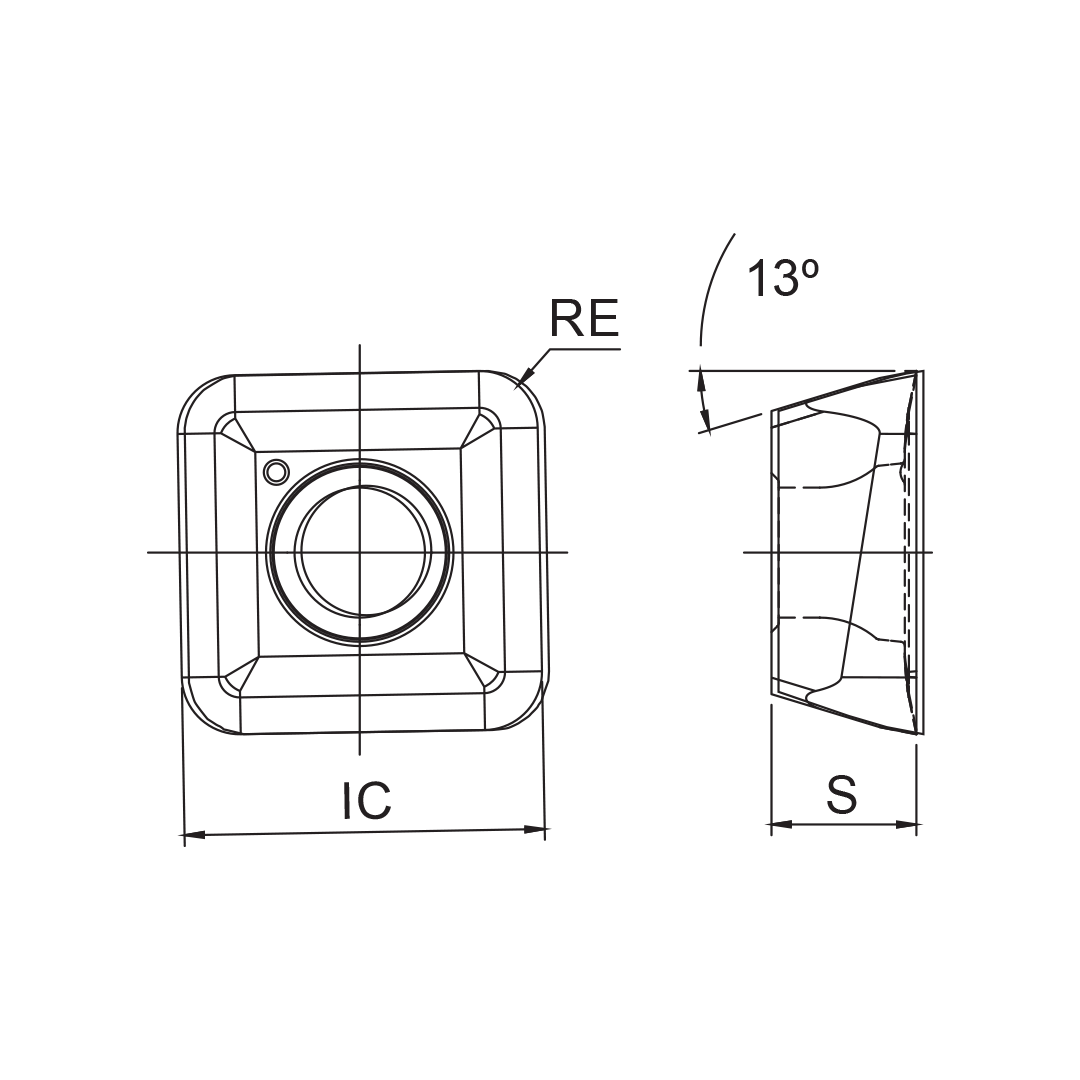

Inscribed circle diameter (IC)

8.6 mm

Insert shape code (SC)

Corner radius (RE)

1.5 mm

Hand (HAND)

Grade (GRADE)

PH7740

Insert thickness (S)

3.47 mm

Wiper edge length (BS)

1 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

0.1339 mm

Tolerance class insert (TCINS)
