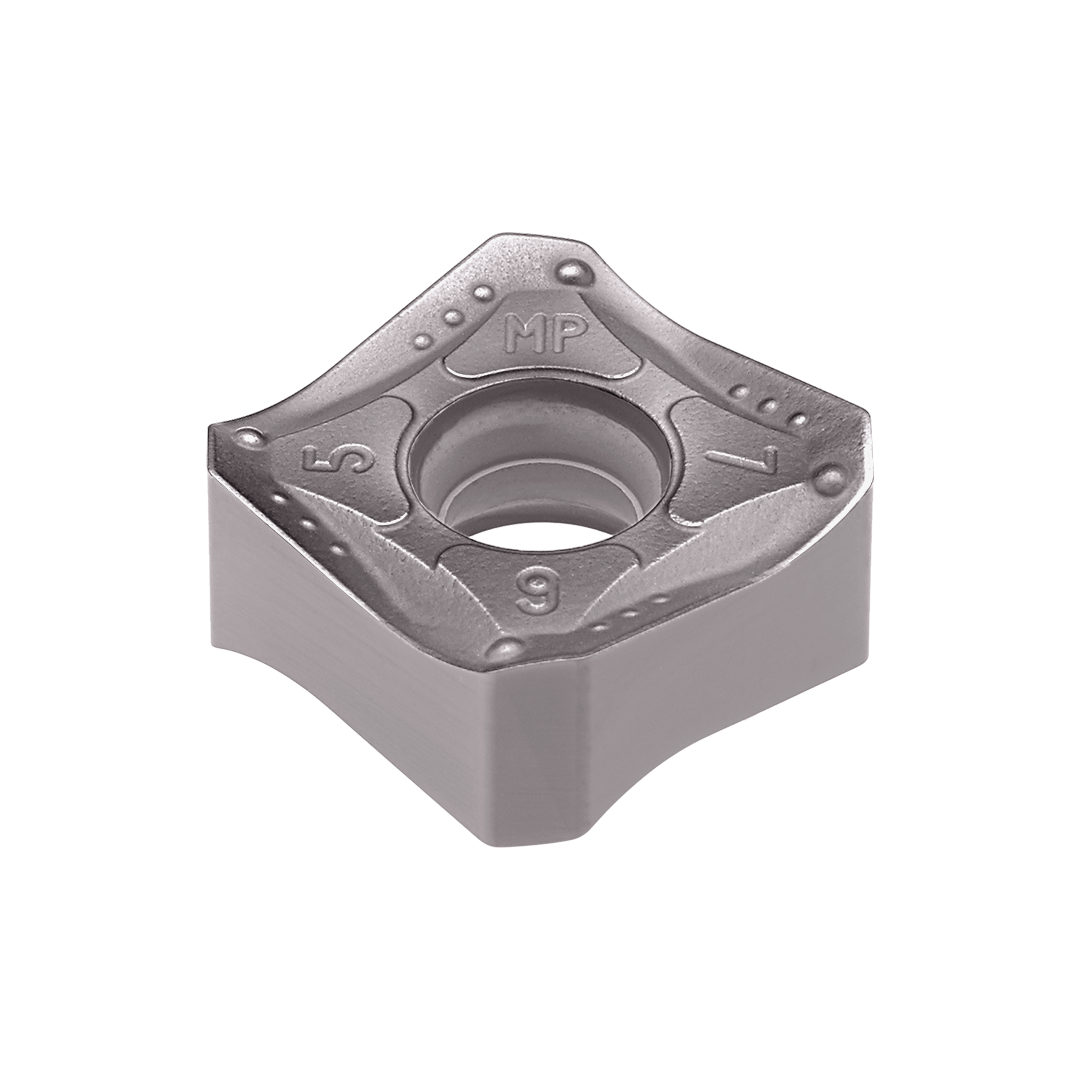

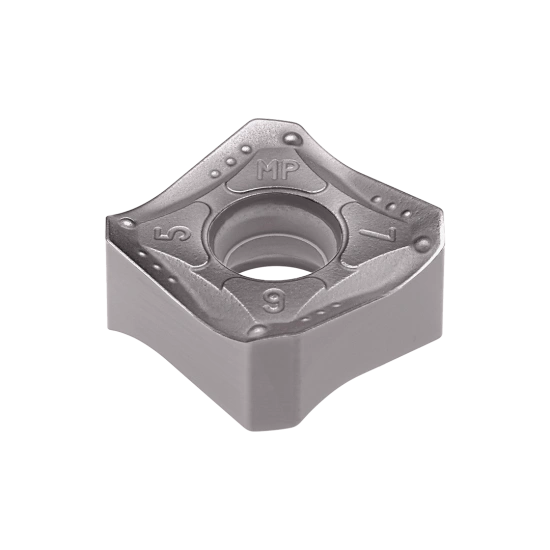

INSERT SNKX 1606 ANER-MP PH7740
1112281G6 | PAST. SNKX 1606 ANER-MP PH7740
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
- S
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
8
Inscribed circle diameter (IC)
6 mm
Insert shape code (SC)
S
Cutting edge effective length (LE)
12.5 mm
Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PH7740
Insert thickness (S)
6.35 mm
Wiper edge length (BS)
2.2 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
0.2362 mm
Tolerance class insert (TCINS)
K
Start values
- P
VC (m/min) (100 - 200)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (0.8 - 8.5)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (0.8 - 8.5)
