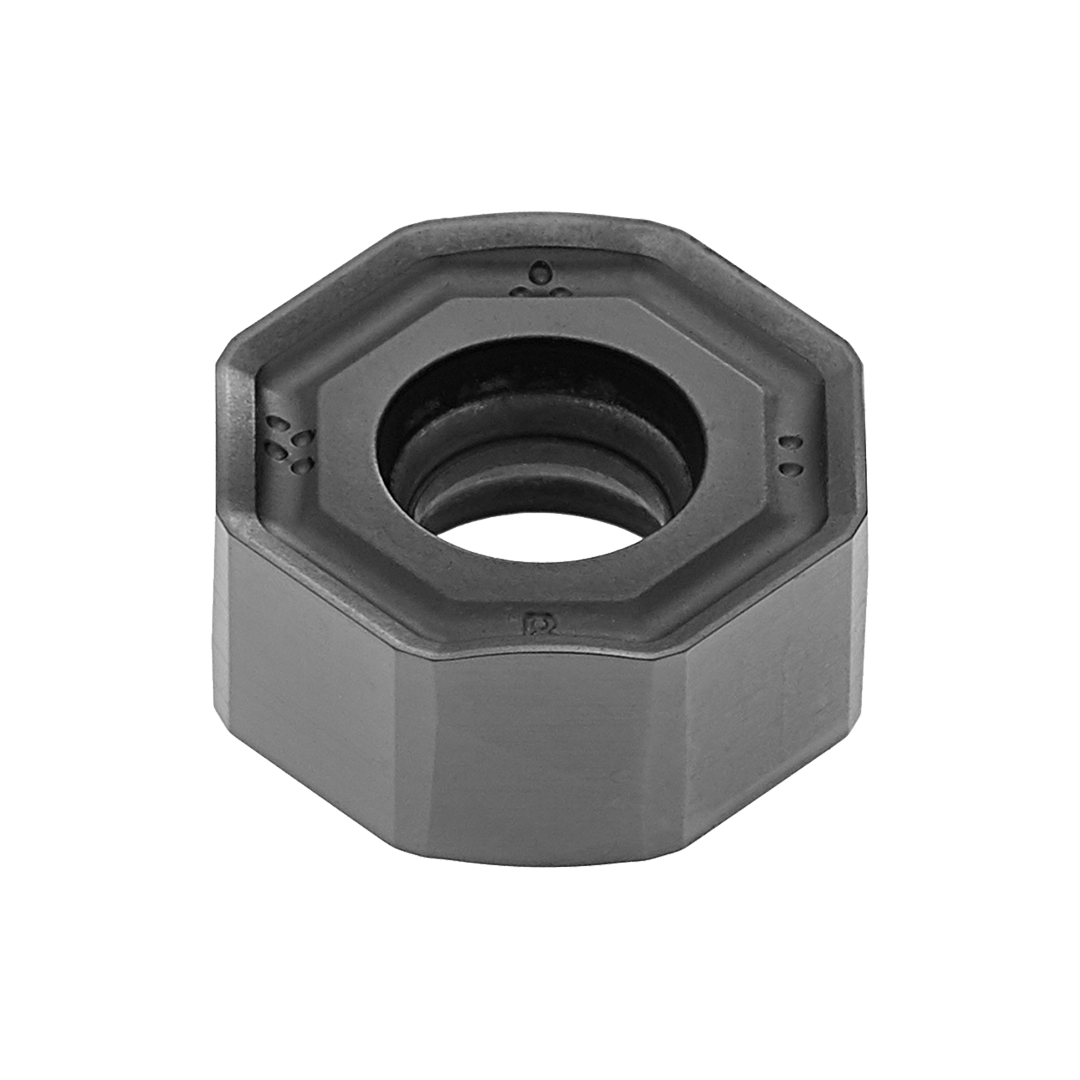

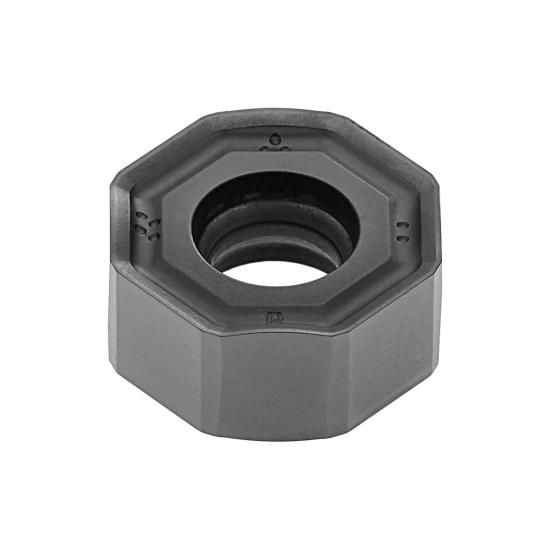

INSERT ONHX 0606 ANEN-W PH6920

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

111205368 | PAST. ONHX 0606 ANEN-W PH6920

Product data

Material classification level 1 (TMC1ISO)

Operation type (CTPT)

Face Milling

Cutting edge count (CEDC)

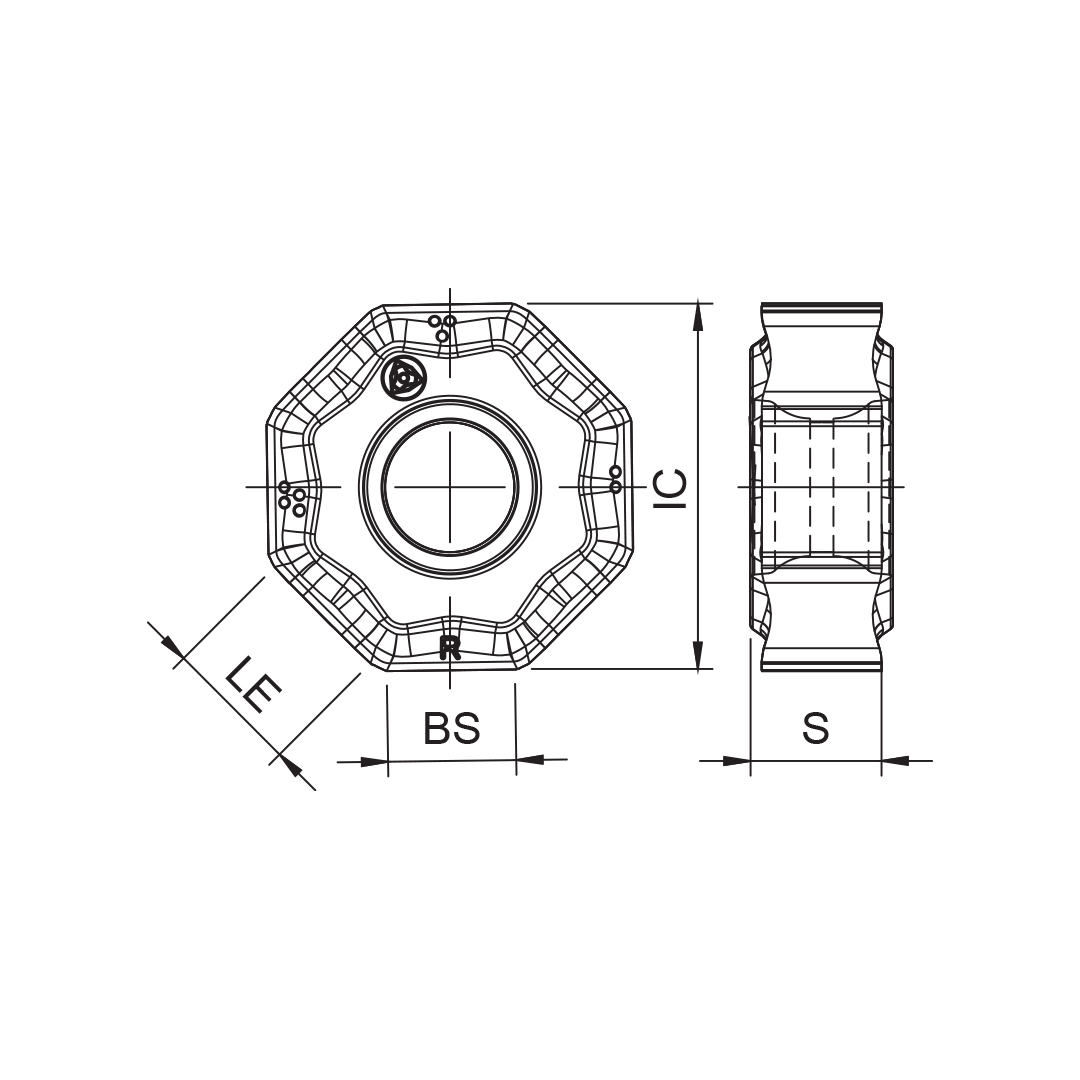

Inscribed circle diameter (IC)

6 mm

Insert shape code (SC)

Cutting edge effective length (LE)

6.2 mm

Hand (HAND)

Grade (GRADE)

PH6920

Insert thickness (S)

5.96 mm

Wiper edge length (BS)

6 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

0.2323 mm

Tolerance class insert (TCINS)
