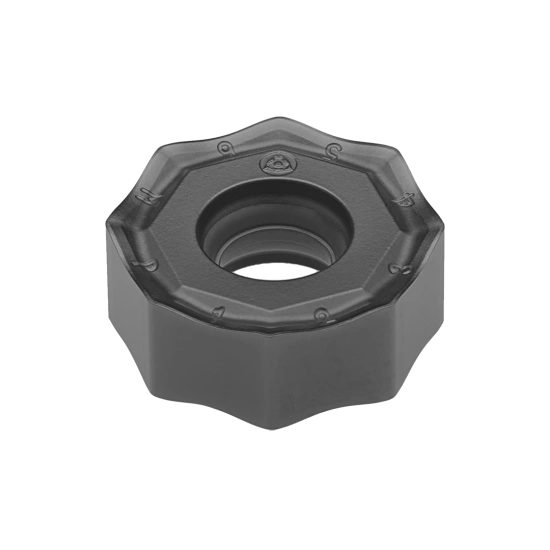

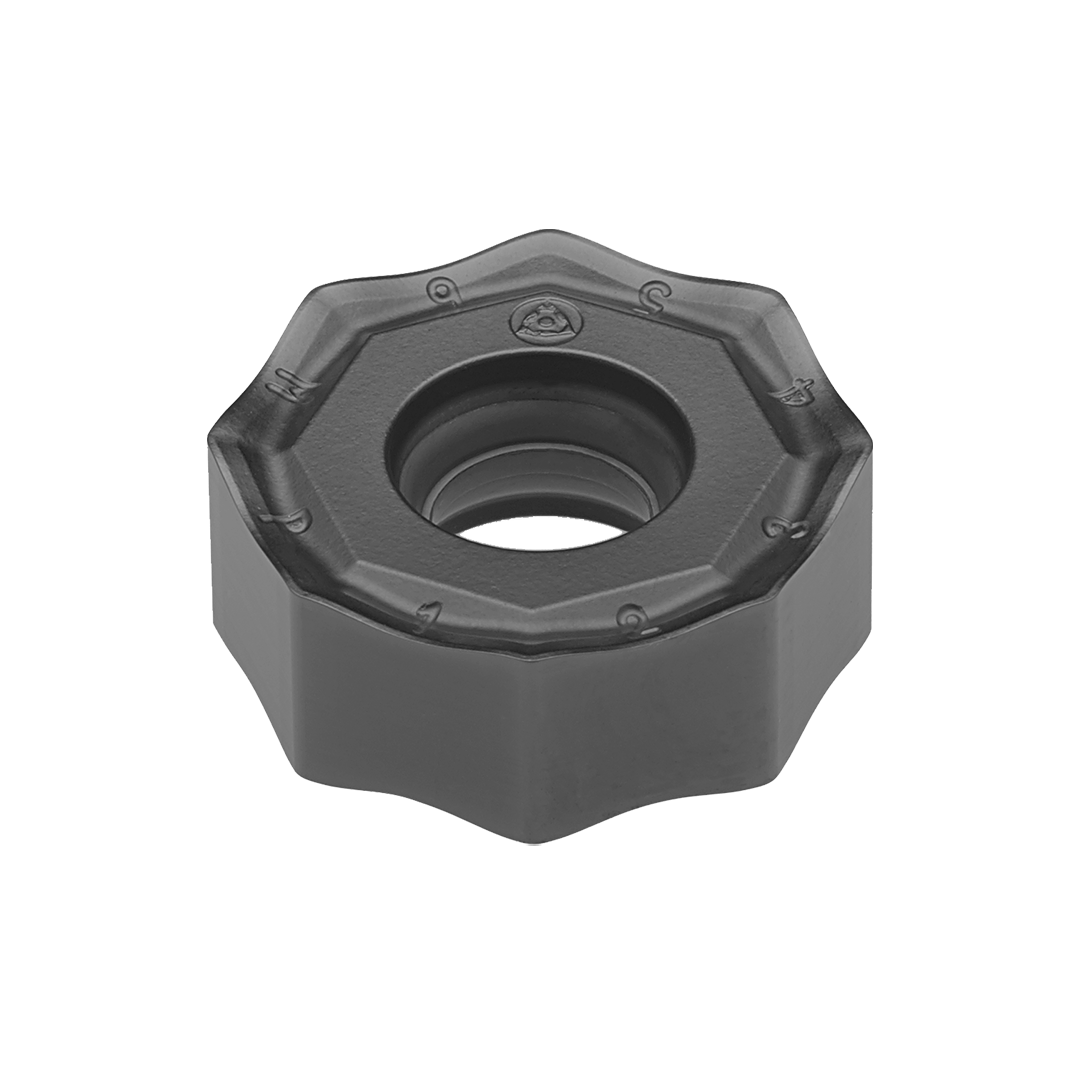

INSERT ONHX 0606 ANEN-MP PH5740
1111955L9 | PAST. ONHX 0606 ANEN-MP PH5740
Product data
Material classification level 1 (TMC1ISO)
- K
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
16

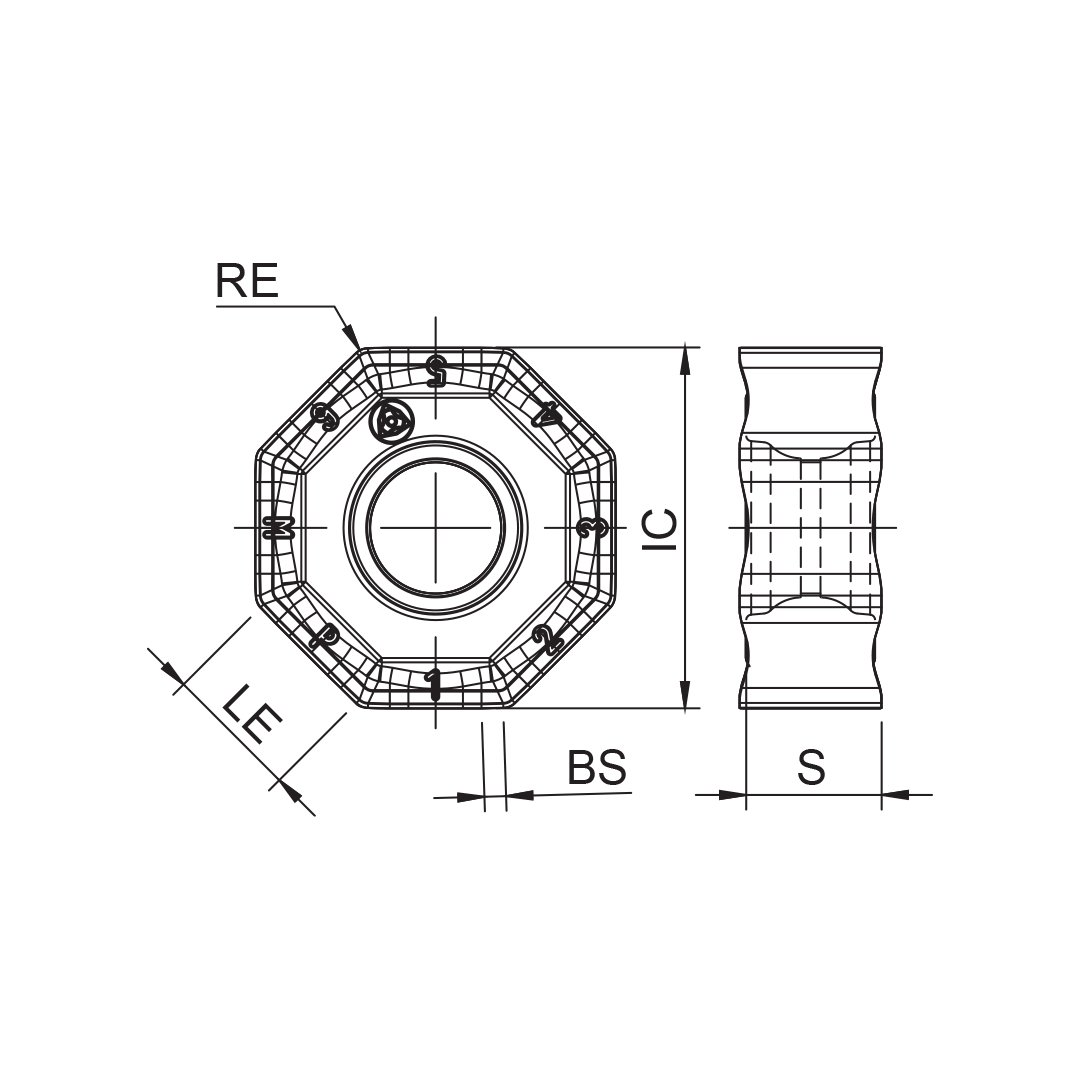

Inscribed circle diameter (IC)
6 mm
Insert shape code (SC)
O
Cutting edge effective length (LE)
6.2 mm
Corner radius (RE)
0.8 mm
Hand (HAND)
N
Grade (GRADE)
PH5740
Insert thickness (S)
6.2 mm
Wiper edge length (BS)
1 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
0.2362 mm
Tolerance class insert (TCINS)
H
Start values
- P
VC (m/min) (130 - 250)
FZ (mm/t) (0.15 - 0.25)
AP (mm) (1 - 3)
FZ (mm/t) (0.15 - 0.25)
AP (mm) (1 - 3)
