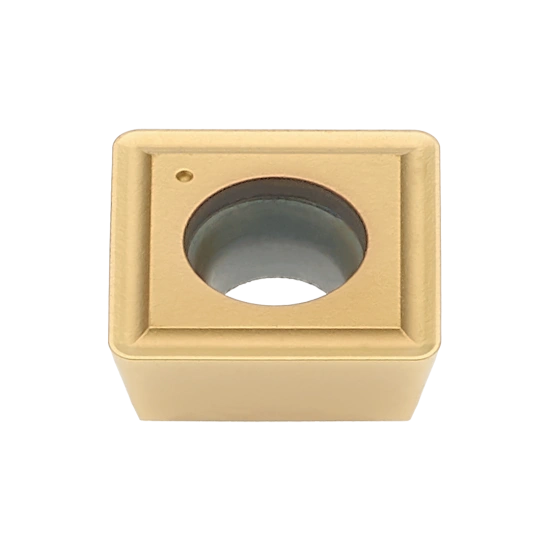

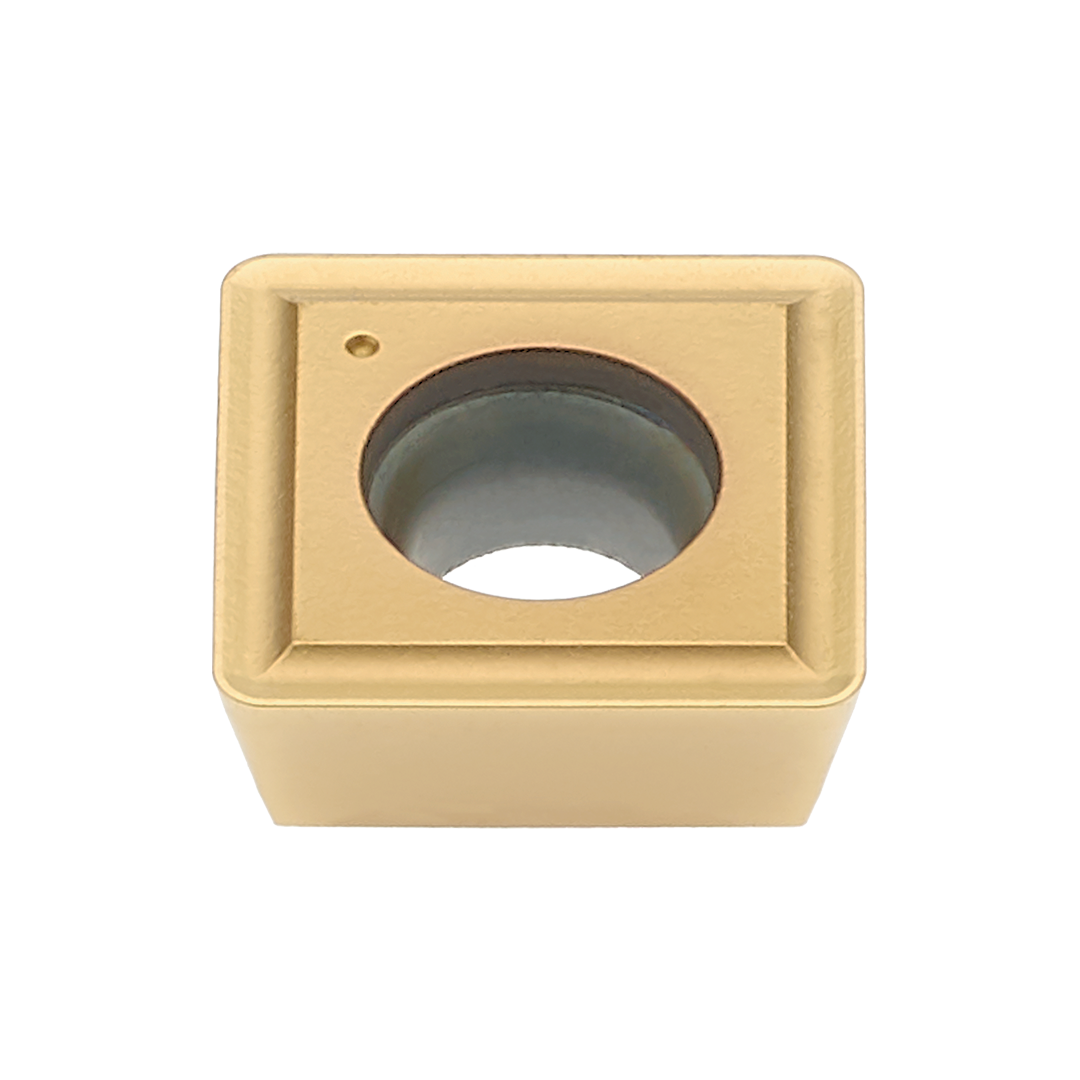

INSERT SPKX 140512 PHL930
11112863B | PAST. SPKX 140512 PHL930
Product data
Operation type (CTPT)
Drilling
Cutting edge count (CEDC)
4

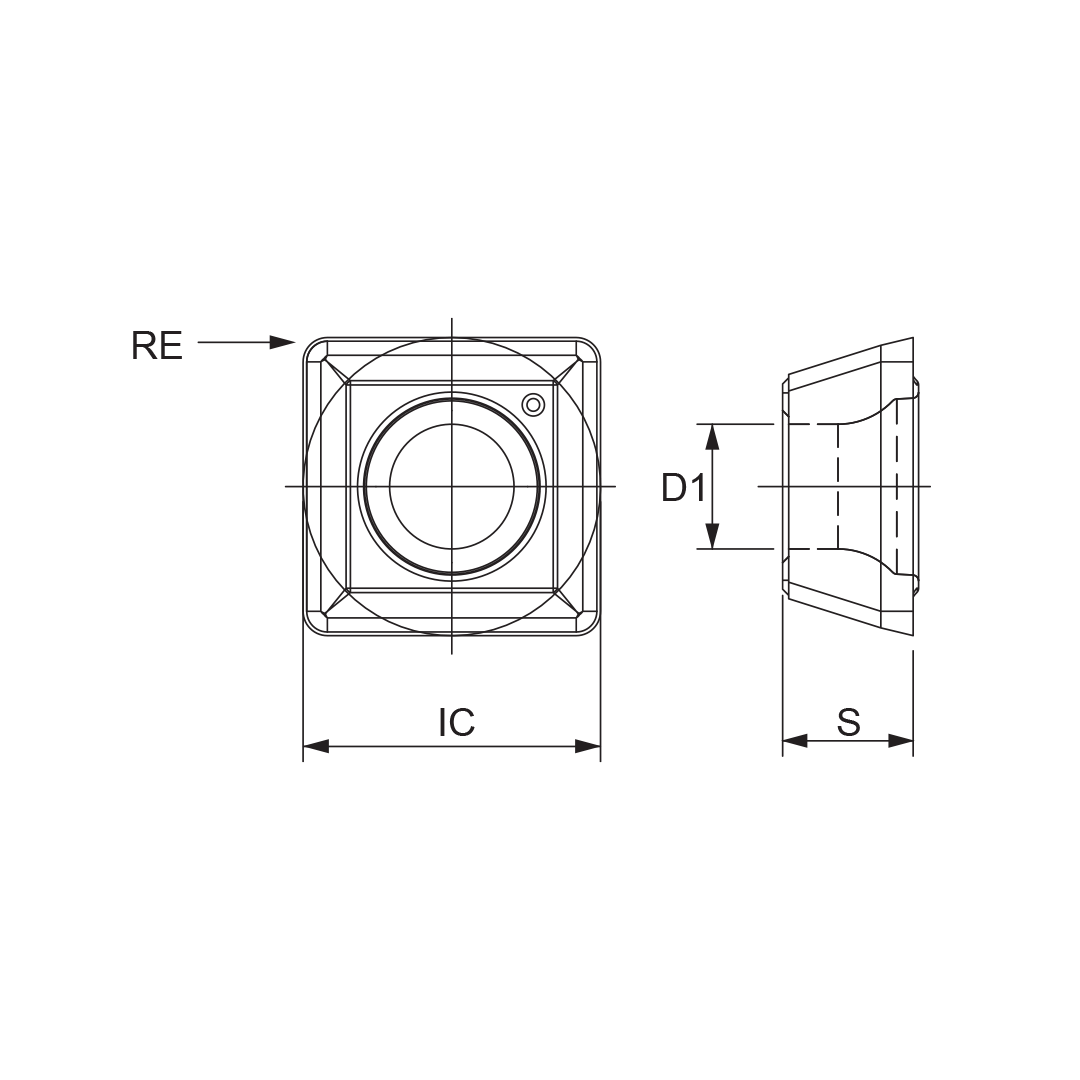

Inscribed circle diameter (IC)
14.3 mm
Insert shape code (SC)
S
Corner radius (RE)
1.2 mm
Hand (HAND)
R
Grade (GRADE)
PHL930
Insert thickness (S)
14.3 mm
Fixing hole diameter (D1)
5.75 mm
Tolerance class insert (TCINS)
K
Start values
- K
VC (m/min) (80 - 260)
FN (mm/r) (0.16 - 0.3)
FN (mm/r) (0.16 - 0.3)
- M
VC (m/min) (40 - 220)
FN (mm/r) (0.11 - 0.19)
FN (mm/r) (0.11 - 0.19)
- P
VC (m/min) (40 - 240)
FN (mm/r) (0.08 - 0.25)
FN (mm/r) (0.08 - 0.25)
