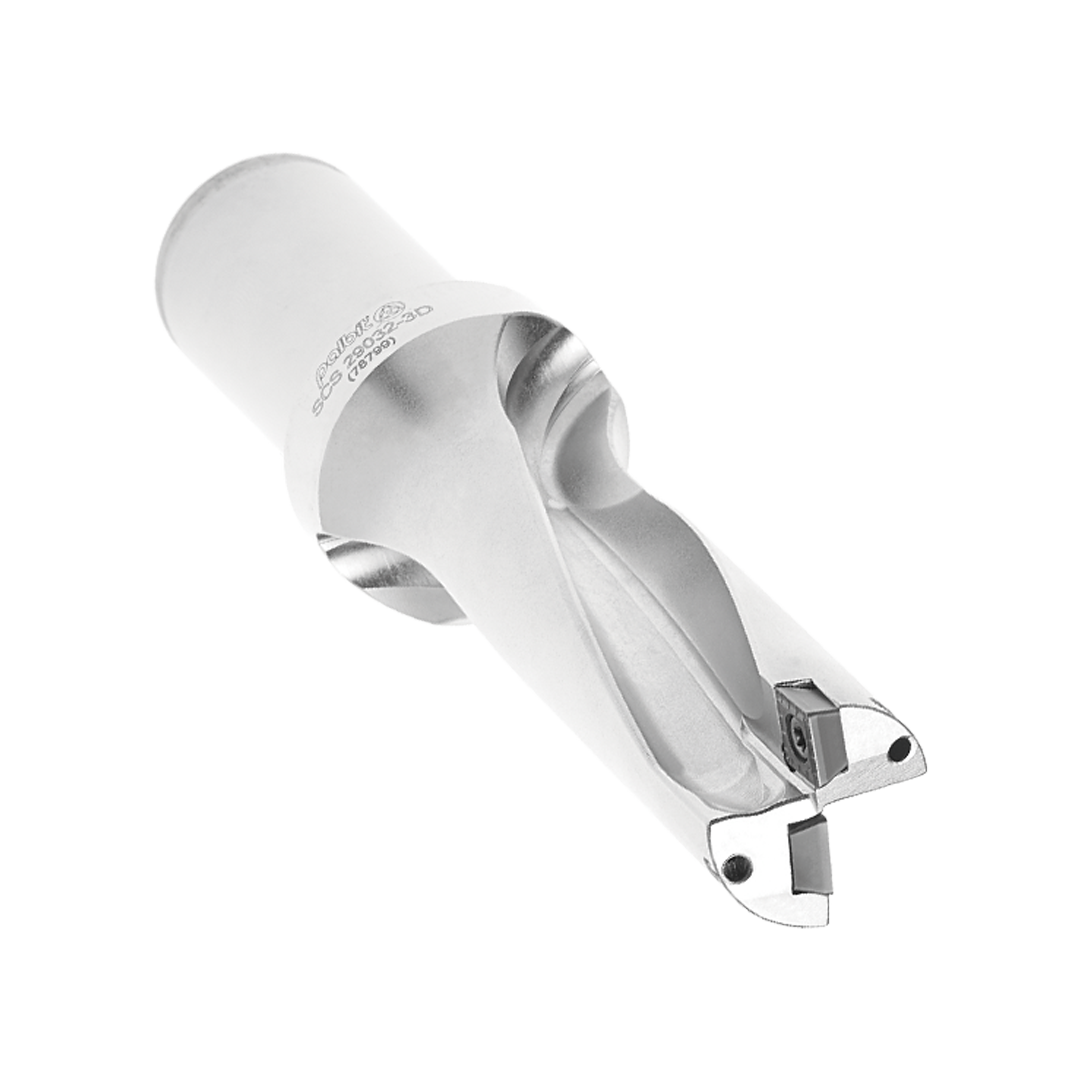

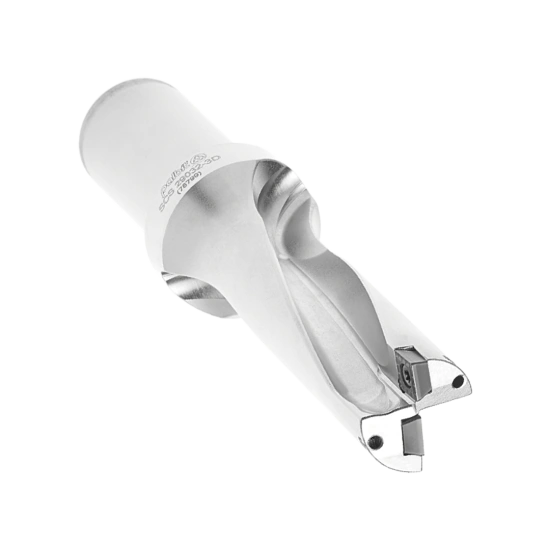

DRILL SCS 49040-3D

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

184046800 | BROCA SCS 49040-3D

Product data

Operation type (CTPT)

Drilling

Connection diameter (DCONMS)

40 mm

Cutting diameter (DC)

49 mm

Chip flute length (LCF)

152 mm

Usable length (LU)

147 mm

Protruding Length (LPR)

187 mm

Prog. Stocks

Yes

* cutting tool parameters according to ISO 13399. Read more here

2D drawing (DXF)

Article code

290031700

Reference

P0501300

Article code

290013200

Reference

XT20-S40
