The most reliable deep-hole drilling system
Vortex drills provide reliable deep hole drilling solutions for large diameter and extended reach applications. The drilling depth can be adjusted using extensions and reducers, while the diameter adjustment is accomplished by shortening the outer cartridge.
Built for demanding industrial environments, Vortex delivers reliable results across a wide range of diameters and materials. Its modular design allows extended reach while maintaining rigidity and tool life.
Built for demanding industrial environments, Vortex delivers reliable results across a wide range of diameters and materials. Its modular design allows extended reach while maintaining rigidity and tool life.
Technical Specifications
■ Diameter ranges from 45 mm to 180 mm;
■ Each head has a 5 mm diameter adjustment in the included cartridges;
■ Shanks and extension assemblies are available, allowing drilling depths up to 10xD;
■ Different insert grades are available for use in Steel, Stainless Steel, Cast Iron, and some Hi-Temp alloys.
WCKX
This insert is suitable for machining:
WCKX-LC
This insert is suitable for machining:
MOUNTING PROCEDURE
We are committed to providing clear and detailed instructions on how to adjust the pilot drill height for optimal deep hole drilling performance.

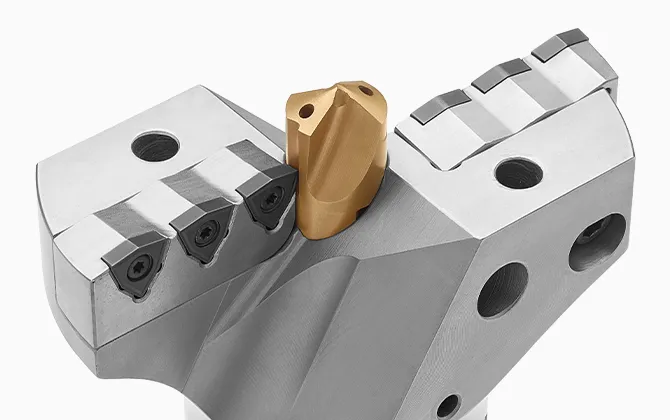

By fine-tuning the pilot drill's position with a hidden screw inside the Vortex M10D or the adjustment screw on Integrex drills, users can significantly reduce the likelihood of breakage and improve drilling stability and tool life.
