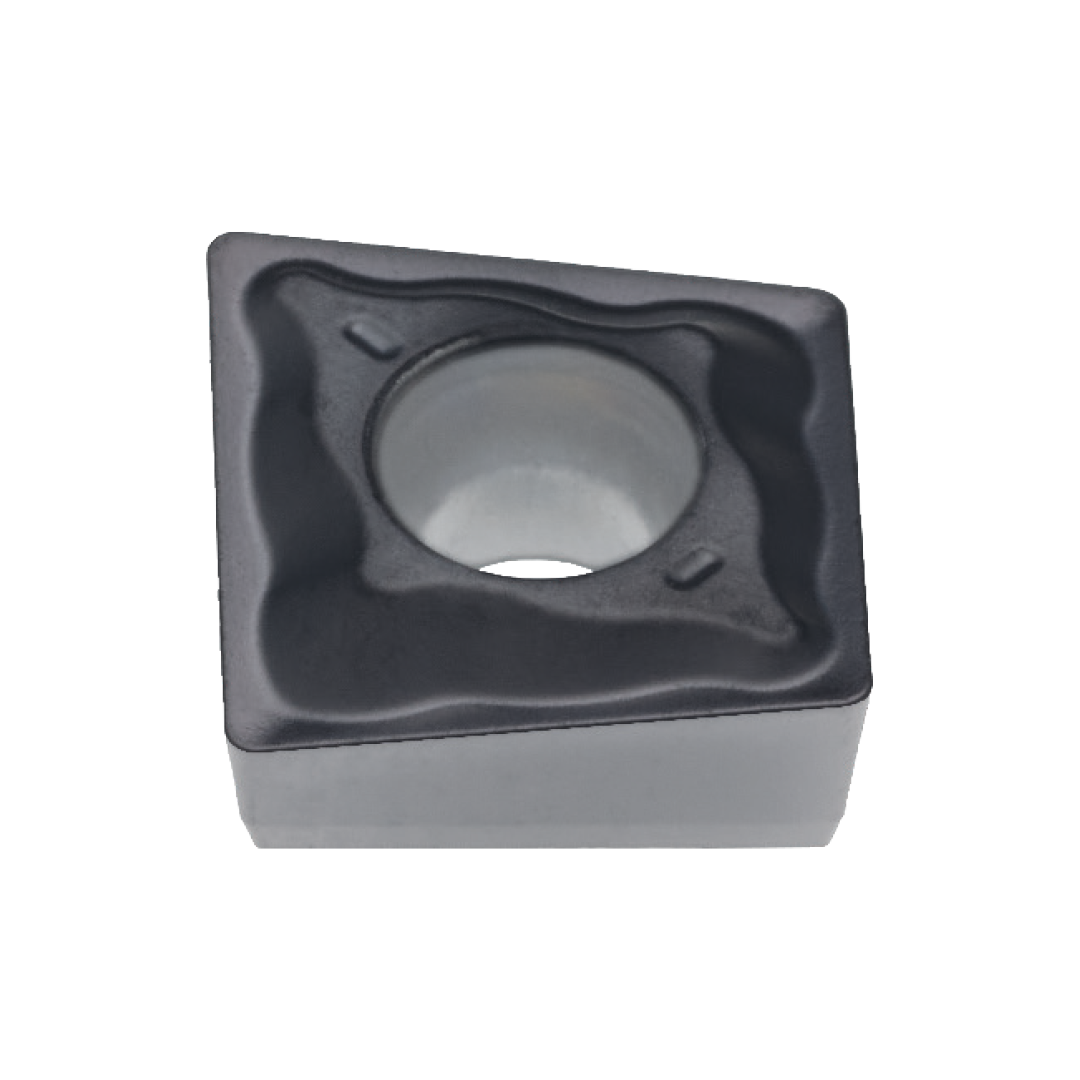

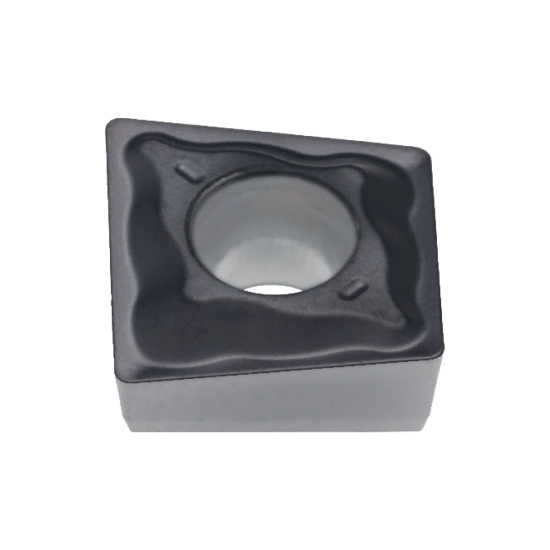

INSERT XCMT 10T308-MP EN PHS225
1124787U5 | PAST. XCMT 10T308-MP EN PHS225
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- S
Operation type (CTPT)
Drilling, External Turning, Internal Turning
Cutting edge count (CEDC)
2
Inscribed circle diameter (IC)
10.4 mm
Insert shape code (SC)
X
Corner radius (RE)
0.8 mm
Hand (HAND)
N
Grade (GRADE)
PHS225
Insert thickness (S)
4 mm
Insert length (INSL)
10 mm
Tolerance class insert (TCINS)
M
Start values
- M
VC (m/min) (110 - 240)
FN (mm/r) (0.03 - 0.23)
AP (mm) (1 - 5.3)
FN (mm/r) (0.03 - 0.23)
AP (mm) (1 - 5.3)
