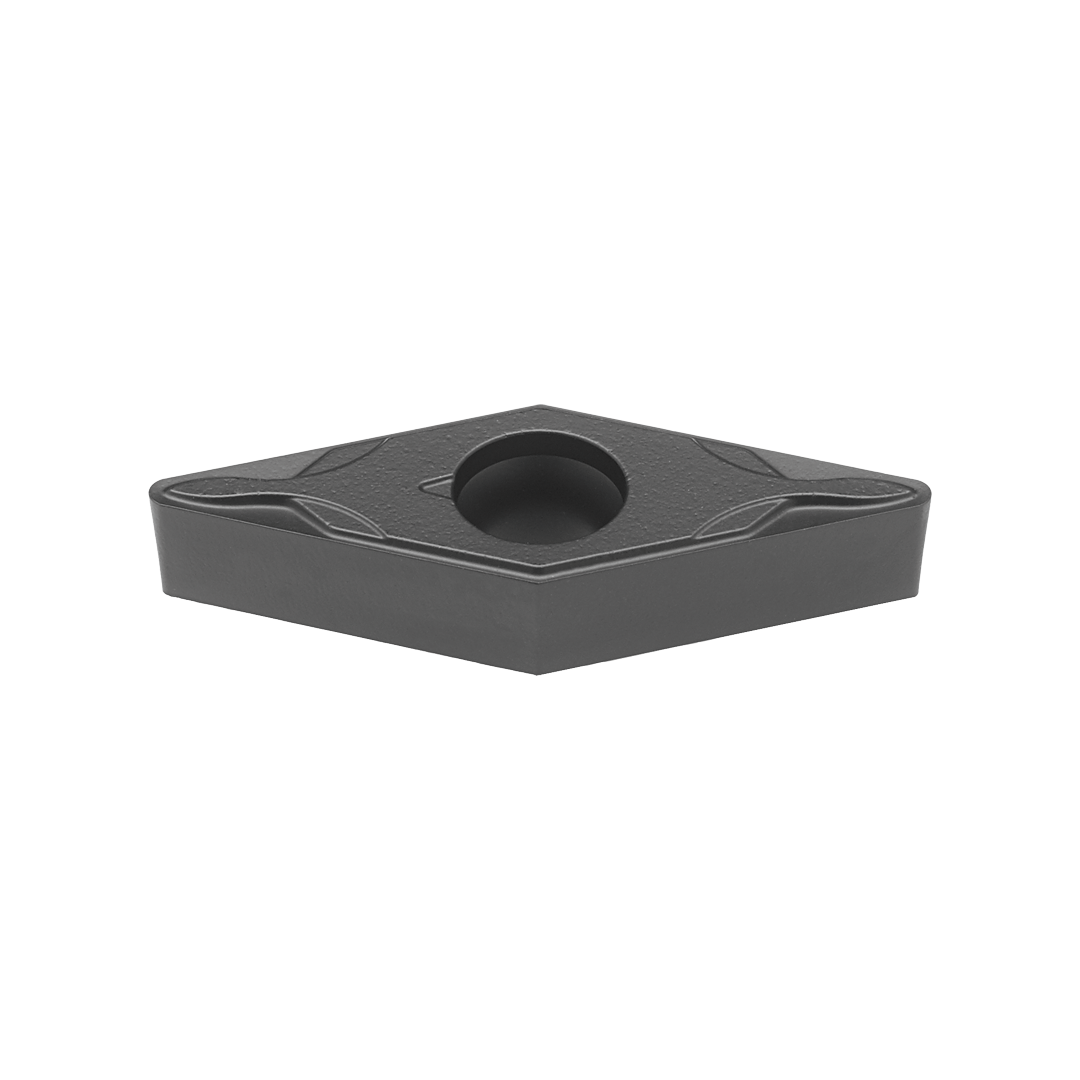

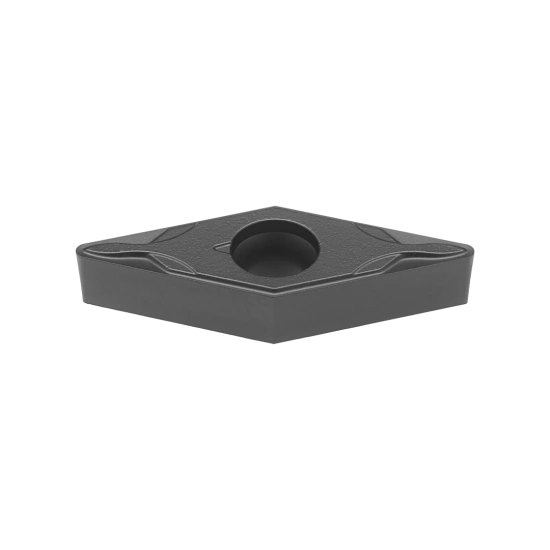

INSERT VBMT 160402-FK PH5705
1121860L5 | PAST. VBMT 160402-FK PH5705
Product data
Material classification level 1 (TMC1ISO)
- K
Operation type (CTPT)
External Turning, Internal Turning
Cutting edge count (CEDC)
2
Inscribed circle diameter (IC)
9.525 mm
Insert shape code (SC)
V
Corner radius (RE)
0.2 mm
Grade (GRADE)
PH5705
Insert thickness (S)
4.76 mm
Chip breaker manufacturer's designation (CBMD)
FK
Fixing hole diameter (D1)
4.4 mm
Tolerance class insert (TCINS)
M
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
Start values
- K
VC (m/min) (120 - 380)
FN (mm/r) (0.04 - 0.14)
AP (mm) (0.1 - 1.8)
FN (mm/r) (0.04 - 0.14)
AP (mm) (0.1 - 1.8)
