TOOLHOLDER MWLN R 3232 P08-K
212290800 | SUPORTE MWLN R 3232 P08-K
Product data

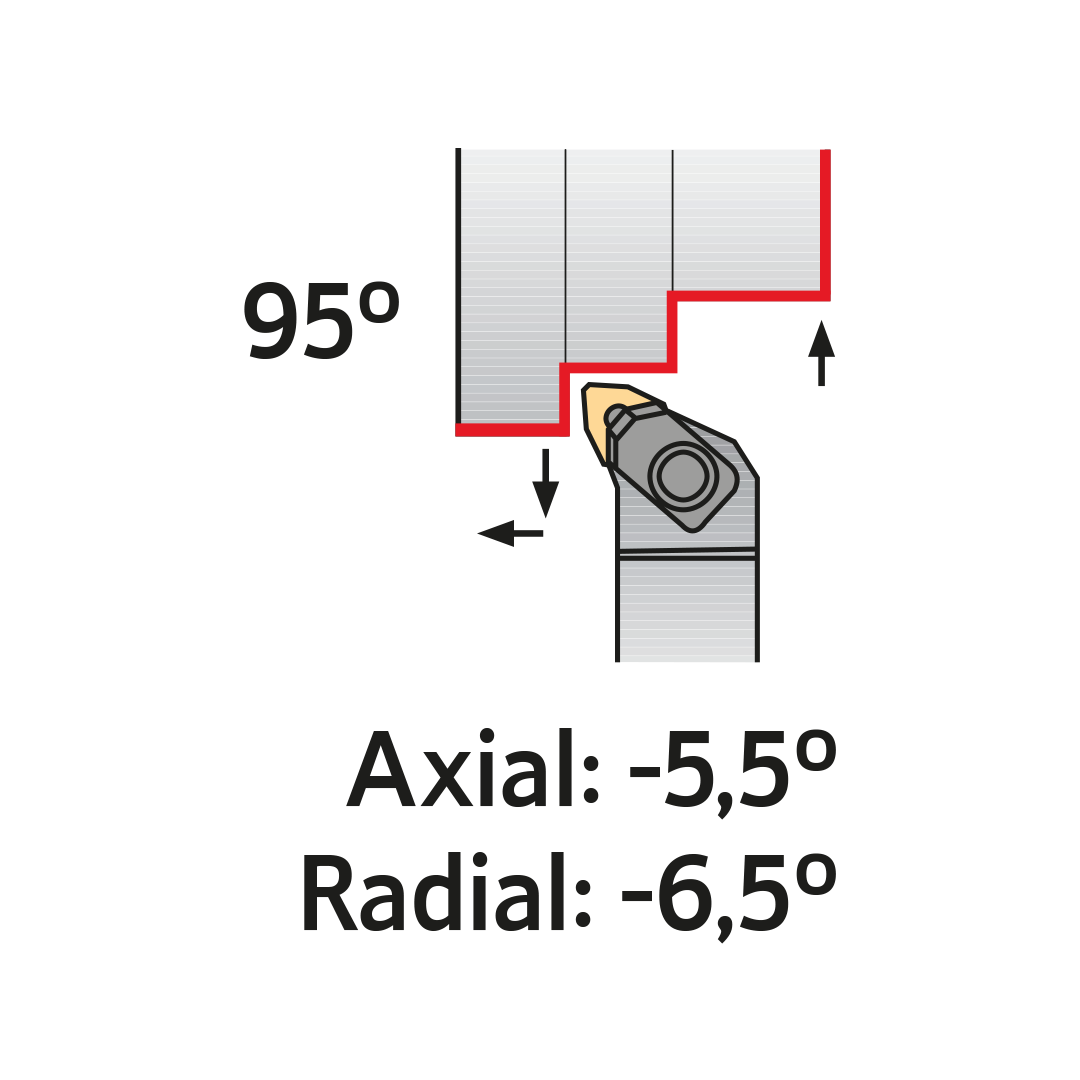

Operation type (CTPT)
External Turning
Cutting edge count (CEDC)
6
Hand (HAND)
R

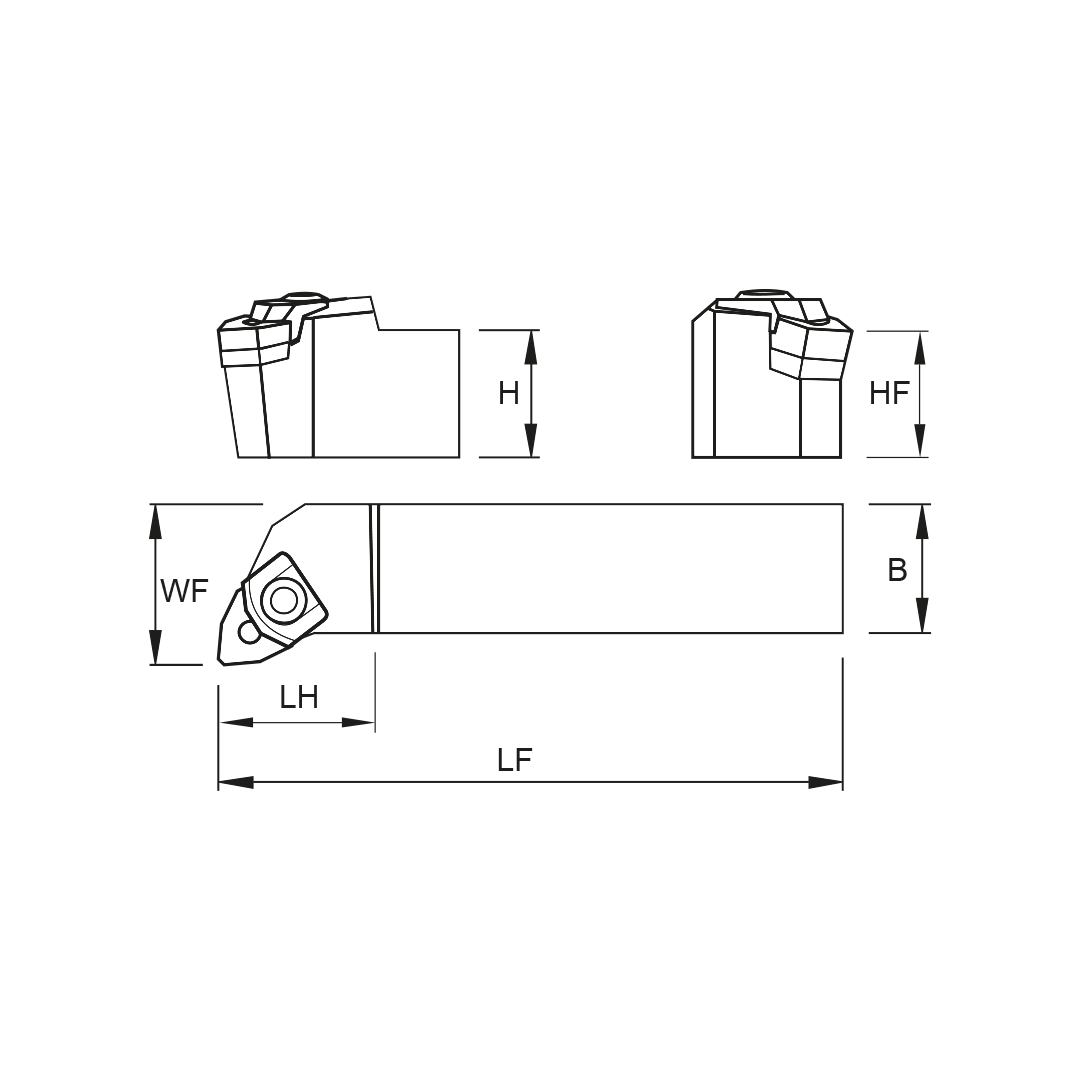

Shank width (B)
32 mm
Shank height (H)
32 mm
Functional height (HF)
32 mm
Functional length (LF)
170 mm
Functional Width (WF)
40 mm
Head length (LH)
34 mm
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
Spare parts
ALLEN KEY SS25
Article code
290019800
Reference
SS25
LOCK PIN BC06000
Article code
290053500
Reference
BC06000
SCREW D0400900
Article code
290053700
Reference
D0400900
SHIM CW080500
Article code
290053400
Reference
CW080500
