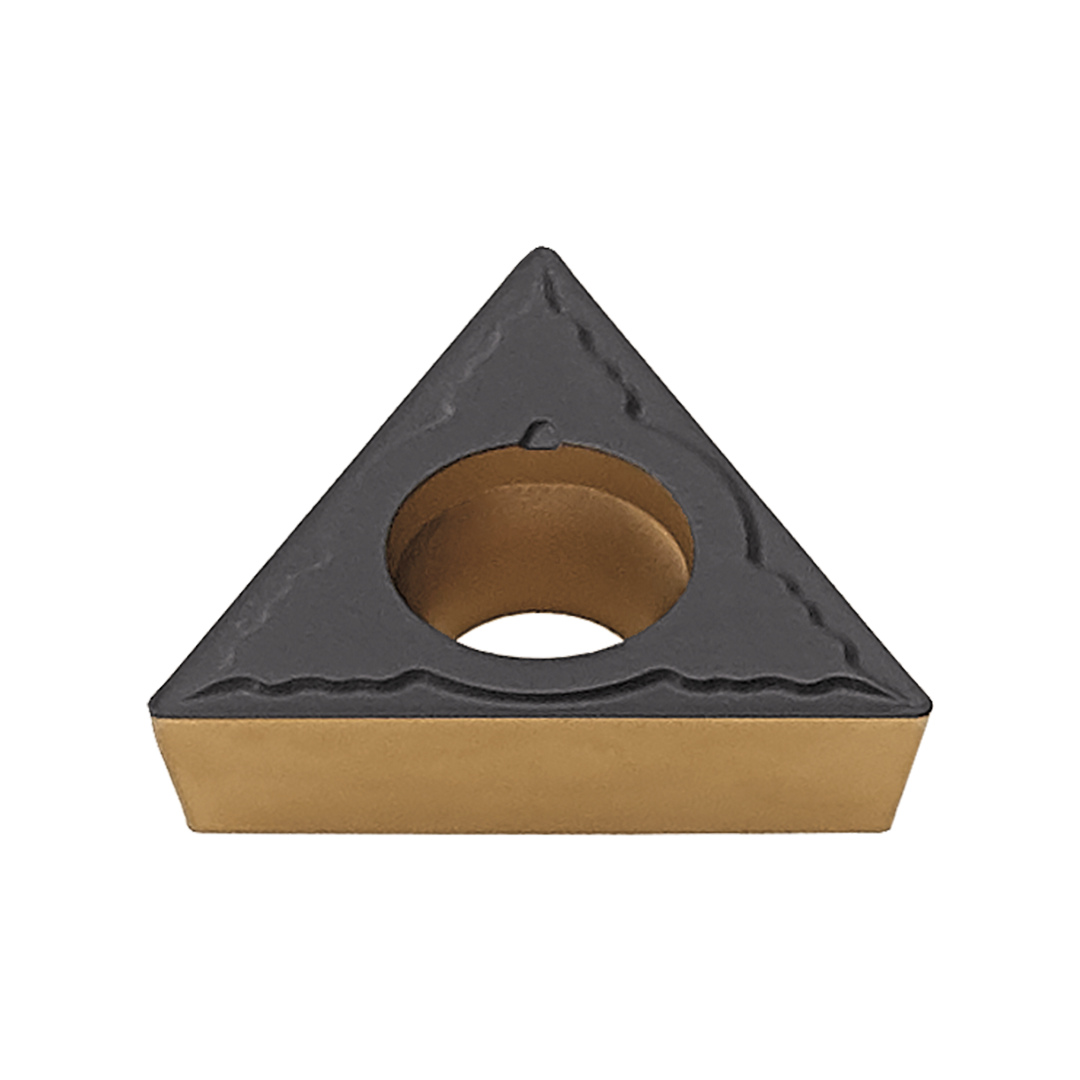

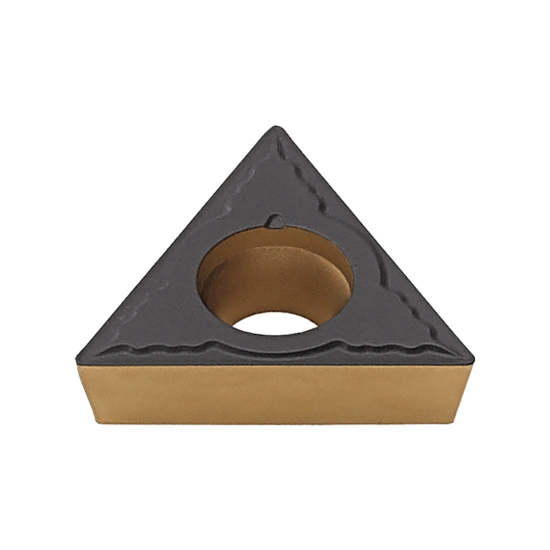

INSERT TCMT 110208-MP PHG115
1121971R2 | PAST. TCMT 110208-MP PHG115
Product data
Material classification level 1 (TMC1ISO)
- P
Operation type (CTPT)
External Turning, Internal Turning
Cutting edge count (CEDC)
3
Inscribed circle diameter (IC)
6.35 mm
Insert shape code (SC)
T
Cutting edge effective length (LE)
16.5 mm
Corner radius (RE)
0.8 mm
Grade (GRADE)
PHG115
Insert thickness (S)
2.38 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
2.8 mm
Insert width (W1)
9.525
Tolerance class insert (TCINS)
M
Chip Breaker Width (LBB)
2.5 mm
Prog. Stocks
No
* cutting tool parameters according to ISO 13399. Read more here
Start values
- P
VC (m/min) (110 - 350)
FN (mm/r) (0.09 - 0.26)
AP (mm) (0.4 - 2.5)
FN (mm/r) (0.09 - 0.26)
AP (mm) (0.4 - 2.5)
