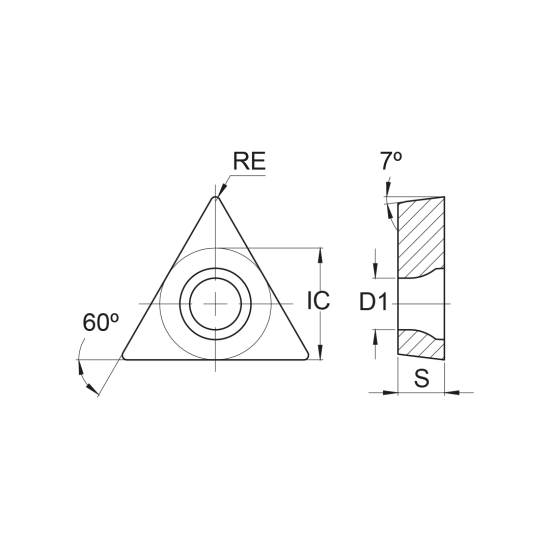

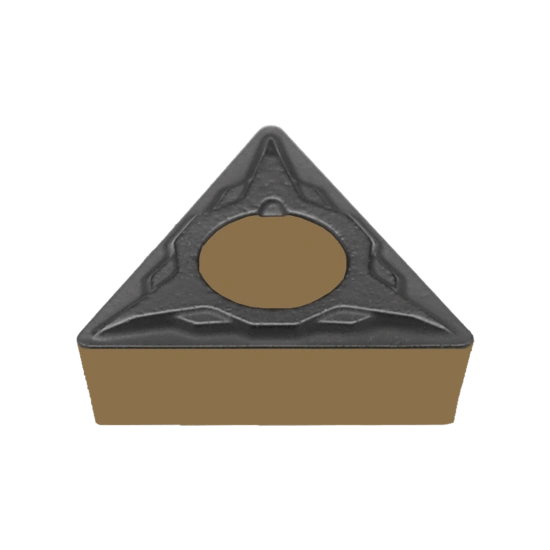

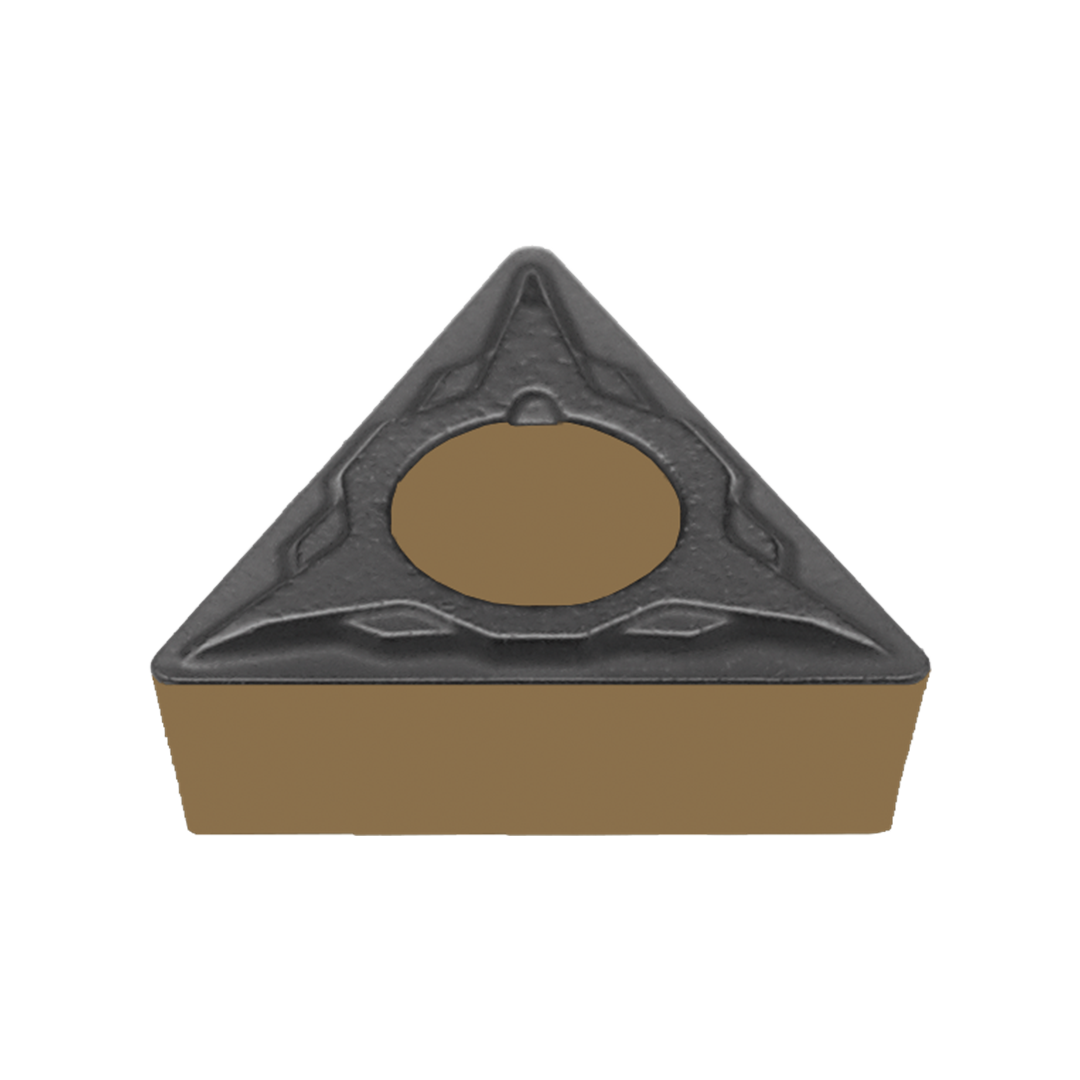

INSERT TCMT 090204-FP PHG125
1121807R3 | PAST. TCMT 090204-FP PHG125
Product data
Material classification level 1 (TMC1ISO)
- P
Operation type (CTPT)
External Turning, Internal Turning
Cutting edge count (CEDC)
3
Inscribed circle diameter (IC)
5.56 mm
Insert shape code (SC)
T
Corner radius (RE)
0.4 mm
Grade (GRADE)
PHG125
Insert thickness (S)
2.38 mm
Chip breaker manufacturer's designation (CBMD)
FP
Fixing hole diameter (D1)
2.5 mm
Tolerance class insert (TCINS)
M
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
Start values
- P
VC (m/min) (100 - 300)
FN (mm/r) (0.05 - 0.19)
AP (mm) (0.1 - 1.7)
FN (mm/r) (0.05 - 0.19)
AP (mm) (0.1 - 1.7)
