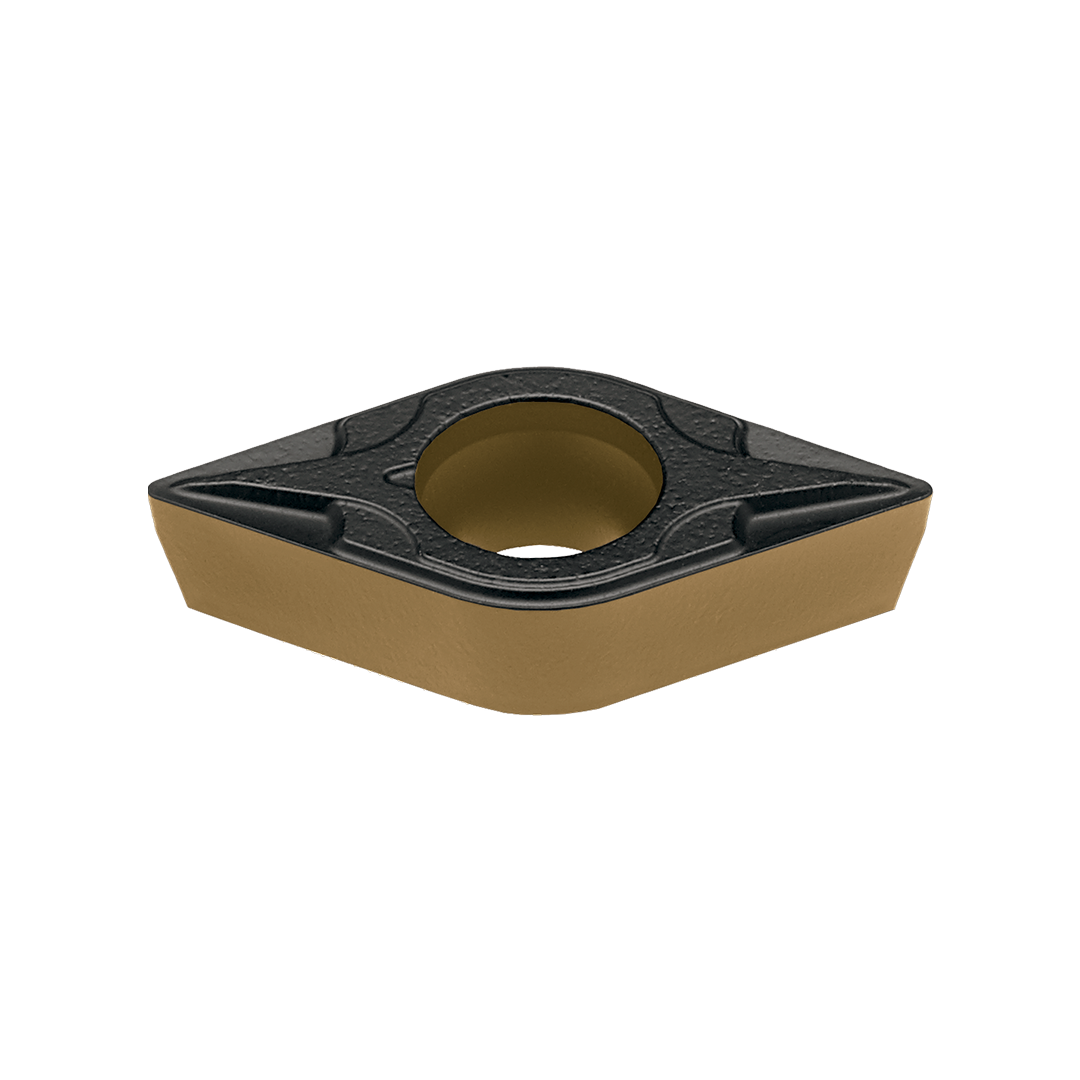

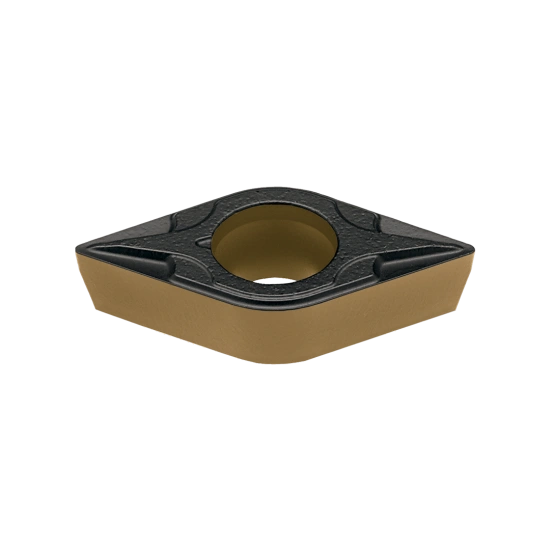

INSERT DCMT 070202-FP PHG125
1121675R3 | PAST. DCMT 070202-FP PHG125
Product data
Material classification level 1 (TMC1ISO)
- P
Operation type (CTPT)
External Turning, Internal Turning
Cutting edge count (CEDC)
2
Inscribed circle diameter (IC)
6.35 mm
Insert shape code (SC)
D
Corner radius (RE)
0.2 mm
Grade (GRADE)
PHG125
Insert thickness (S)
2.38 mm
Chip breaker manufacturer's designation (CBMD)
FP
Fixing hole diameter (D1)
2.8 mm
Tolerance class insert (TCINS)
M
Prog. Stocks
No
* cutting tool parameters according to ISO 13399. Read more here
Start values
- P
VC (m/min) (100 - 300)
FN (mm/r) (0.03 - 0.11)
AP (mm) (0.1 - 1.5)
FN (mm/r) (0.03 - 0.11)
AP (mm) (0.1 - 1.5)
