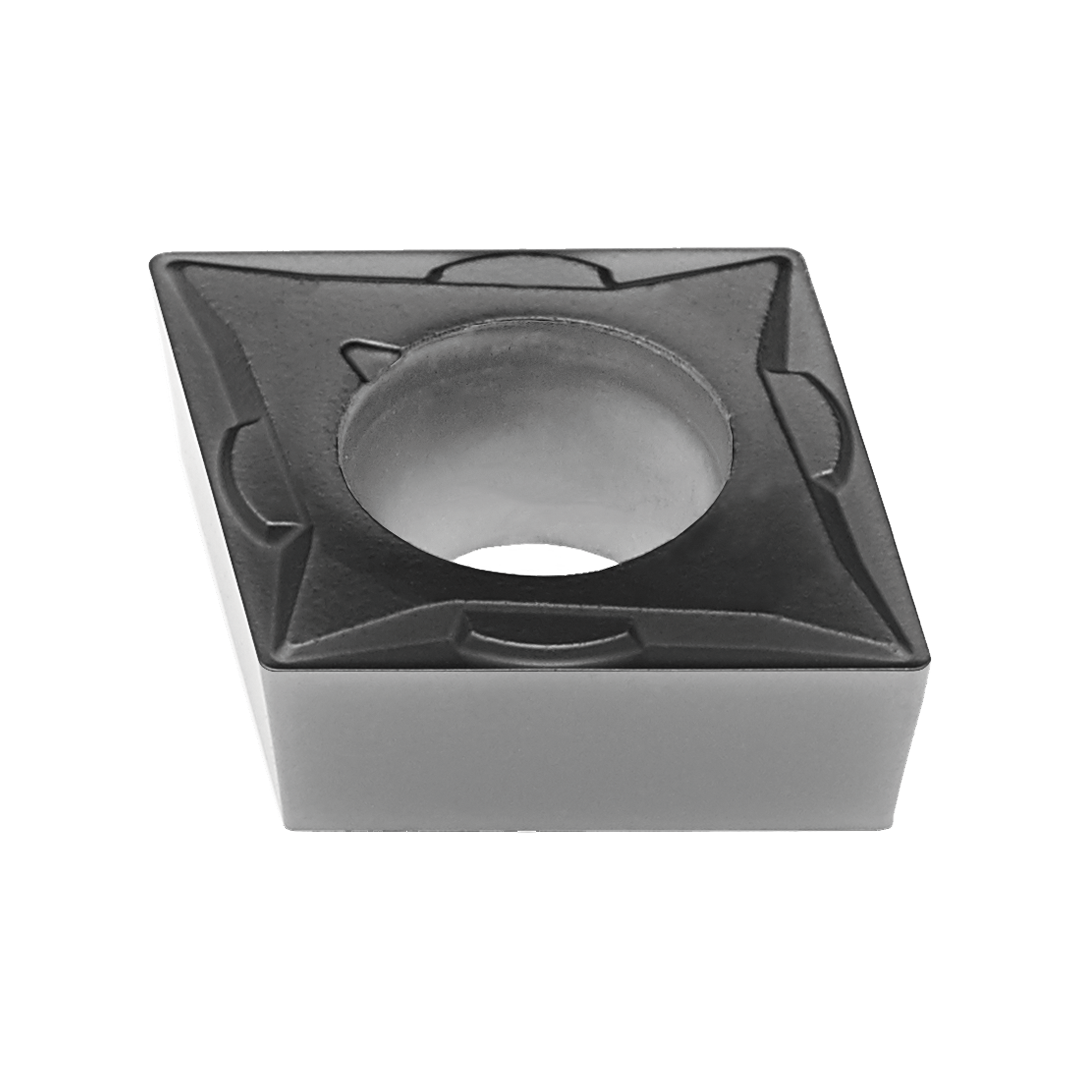

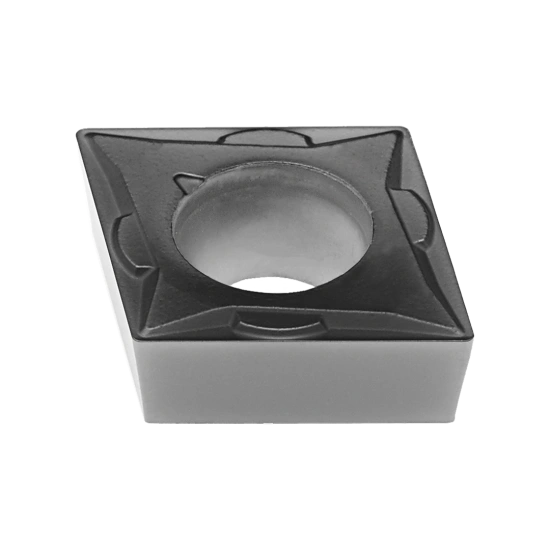

INSERT CCMT 120404-FM PHS225
1121664U5 | PAST. CCMT 120404-FM PHS225
Product data
Material classification level 1 (TMC1ISO)
- M
Operation type (CTPT)
External Turning, Internal Turning
Cutting edge count (CEDC)
2
Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
C
Corner radius (RE)
0.4 mm
Grade (GRADE)
PHS225
Insert thickness (S)
4.76 mm
Chip breaker manufacturer's designation (CBMD)
FM
Fixing hole diameter (D1)
5.5 mm
Tolerance class insert (TCINS)
M
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
Start values
- M
VC (m/min) (110 - 240)
FN (mm/r) (0.07 - 0.27)
AP (mm) (0.1 - 2.4)
FN (mm/r) (0.07 - 0.27)
AP (mm) (0.1 - 2.4)
