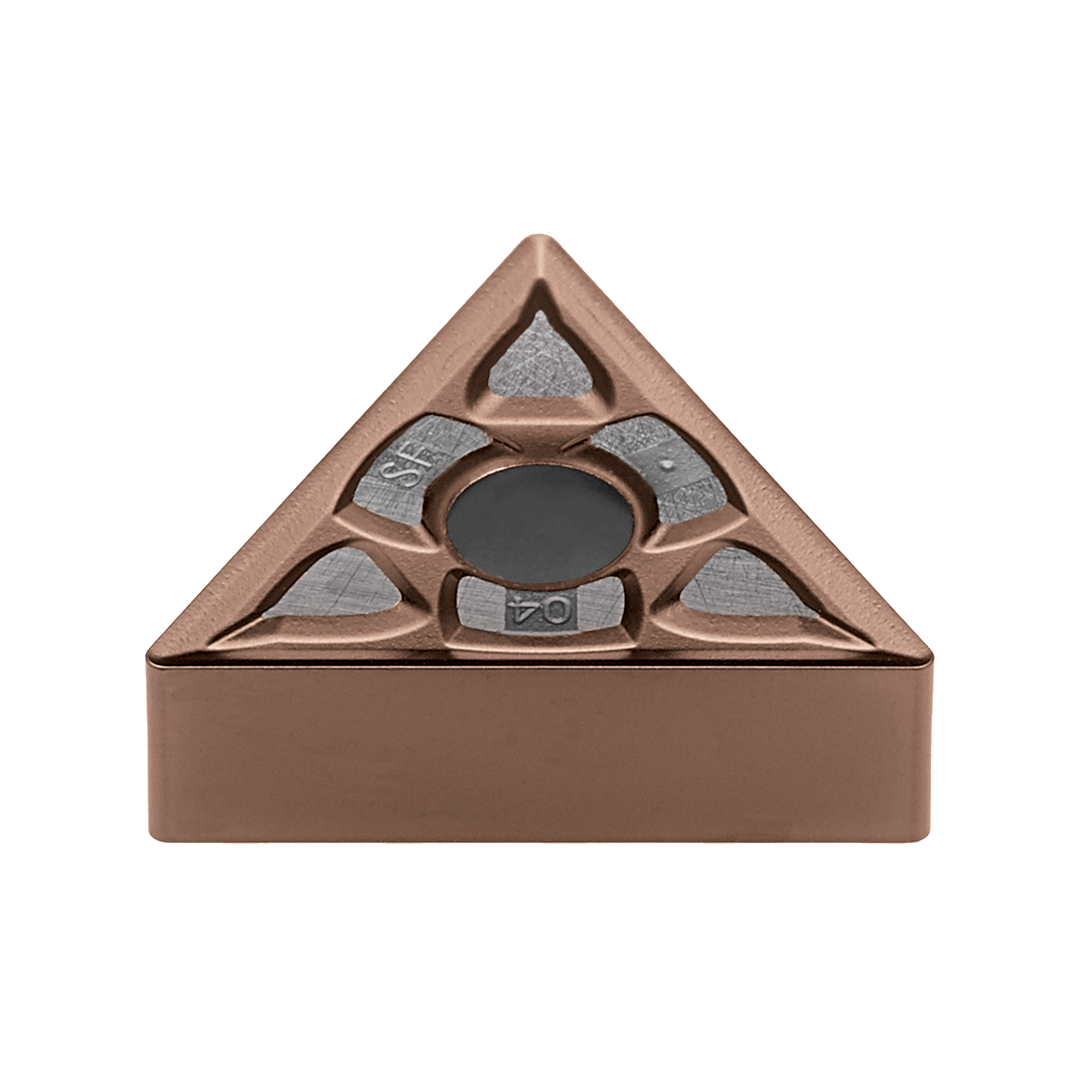

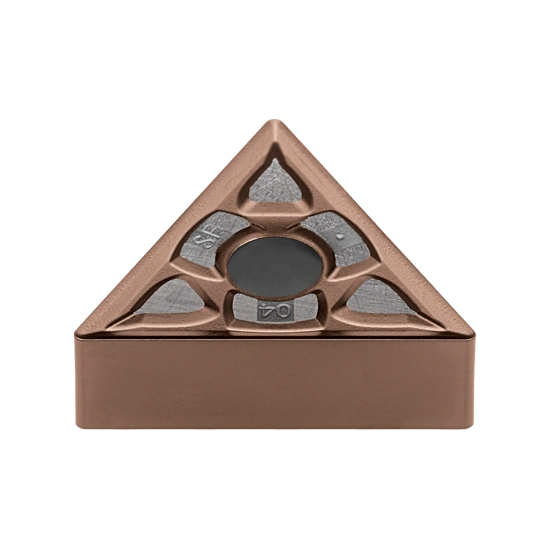

INSERT TNMG 160412-SF PHH910
1123758X6 | PAST. TNMG 160412-SF PHH910
Product data
Material classification level 1 (TMC1ISO)
- P
- H
Operation type (CTPT)
External Turning, Internal Turning
Cutting edge count (CEDC)
1871
Inscribed circle diameter (IC)
9.525 mm
Insert shape code (SC)
T
Corner radius (RE)
1.2 mm
Hand (HAND)
R
Grade (GRADE)
PHH910
Insert thickness (S)
4.76 mm
Chip breaker manufacturer's designation (CBMD)
SF
Fixing hole diameter (D1)
3.81 mm
Tolerance class insert (TCINS)
M
Start values
- M
VC (m/min) (100 - 270)
FN (mm/r) (0.15 - 0.55)
AP (mm) (0.6 - 3)
FN (mm/r) (0.15 - 0.55)
AP (mm) (0.6 - 3)
- S
VC (m/min) (30 - 180)
FN (mm/r) (0.15 - 0.55)
AP (mm) (0.6 - 3)
FN (mm/r) (0.15 - 0.55)
AP (mm) (0.6 - 3)
