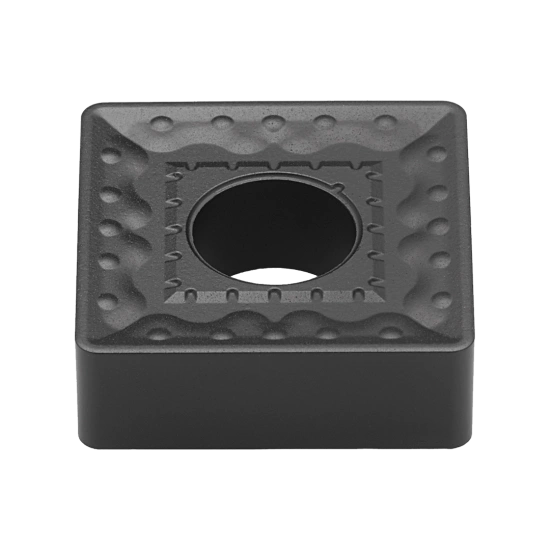

INSERT SNMM 250732-HZ PH5115
1123786L7 | PAST. SNMM 250732-HZ PH5115
Product data
Operation type (CTPT)
External Turning, Internal Turning
Cutting edge count (CEDC)
1606
Inscribed circle diameter (IC)
25.4 mm
Insert shape code (SC)
S
Corner radius (RE)
3.2 mm
Hand (HAND)
R
Grade (GRADE)
PH5115
Insert thickness (S)
7.94 mm
Chip breaker manufacturer's designation (CBMD)
HZ
Fixing hole diameter (D1)
9.12 mm
Tolerance class insert (TCINS)
M
