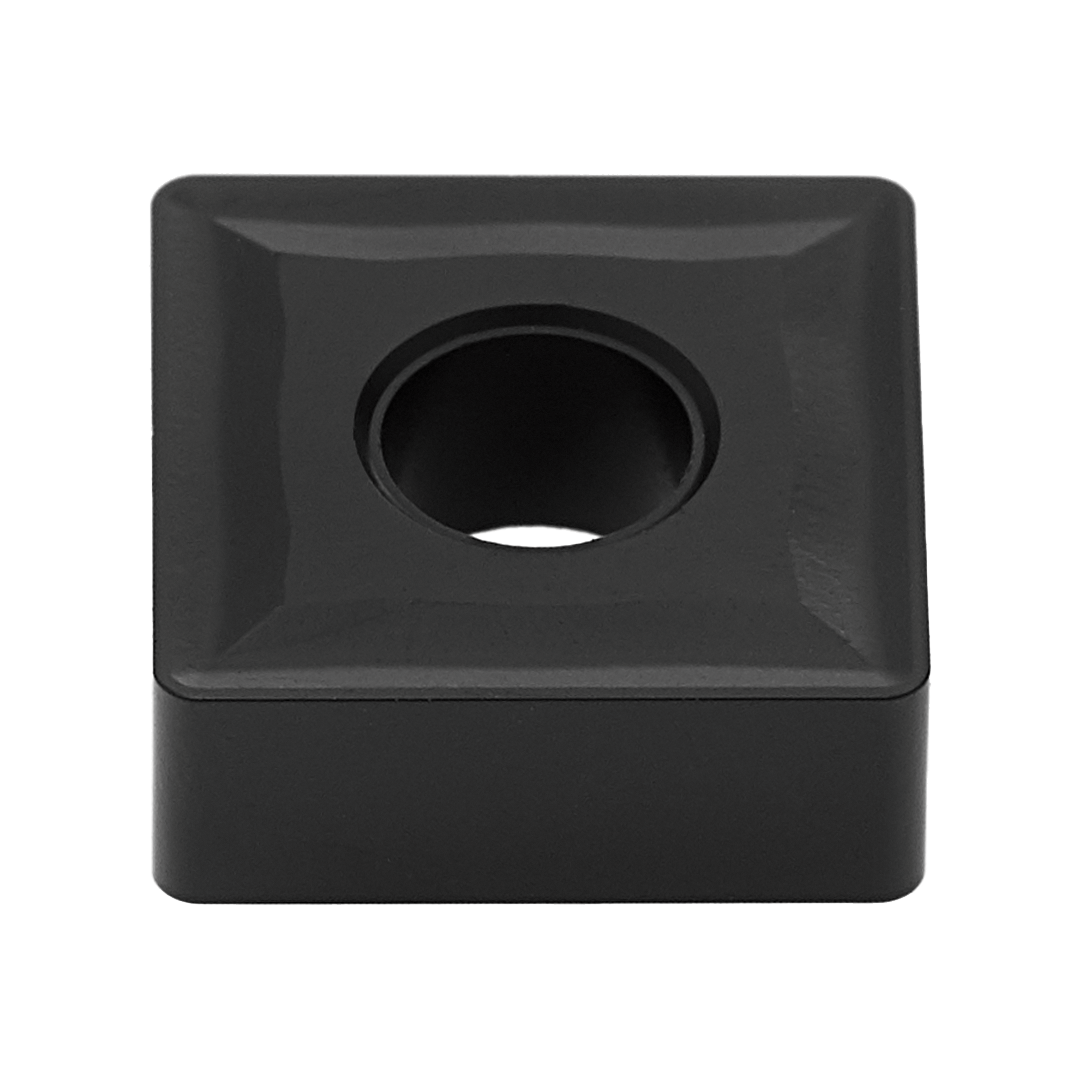

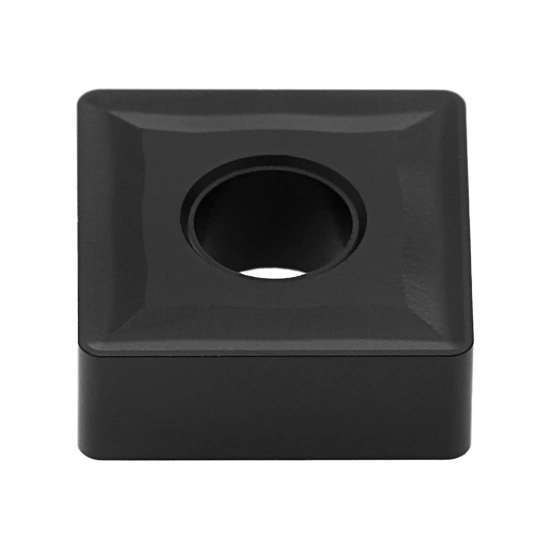

INSERT SNMG 150616-ST PH5705

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

1121541L5 | PAST. SNMG 150616-ST PH5705

Product data

Material classification level 1 (TMC1ISO)

Operation type (CTPT)

External Turning, Internal Turning

Cutting edge count (CEDC)

1480

Inscribed circle diameter (IC)

15.875 mm

Insert shape code (SC)

Corner radius (RE)

1.6 mm

Hand (HAND)

Grade (GRADE)

PH5705

Insert thickness (S)

6.35 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

6.35 mm

Tolerance class insert (TCINS)
