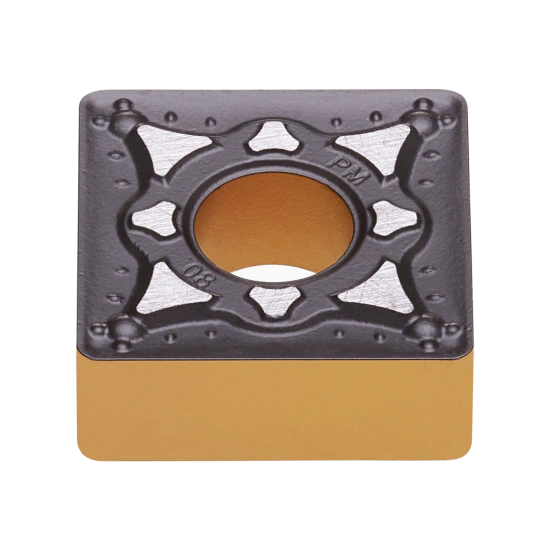

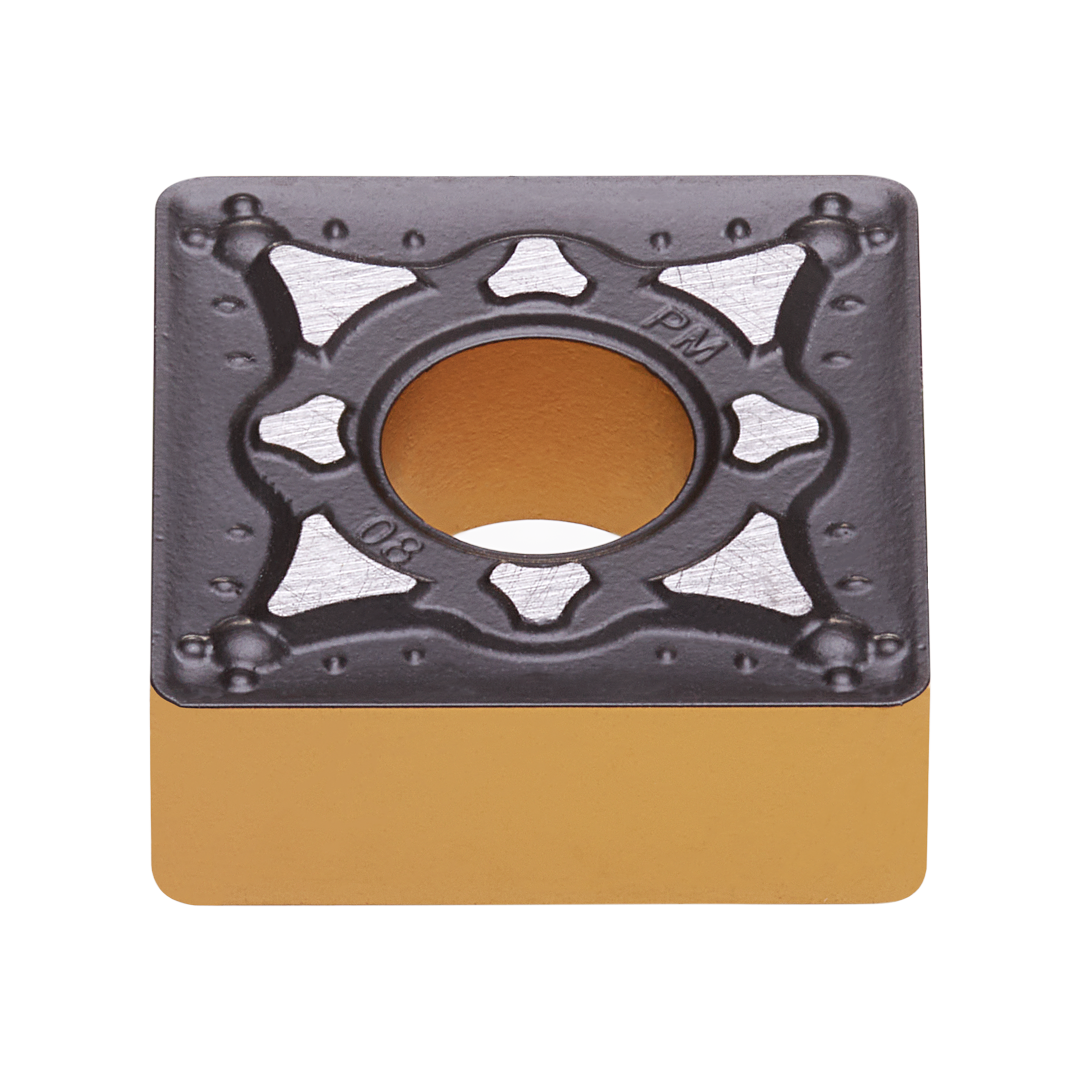

INSERT SNMG 120404-PM PH2G125

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

11240831D | PAST. SNMG 120404-PM PH2G125

Product data

Operation type (CTPT)

External Turning, Internal Turning

Cutting edge count (CEDC)

1281

Inscribed circle diameter (IC)

12.7 mm

Insert shape code (SC)

Corner radius (RE)

0.4 mm

Hand (HAND)

Grade (GRADE)

PH2G125

Insert thickness (S)

4.76 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

5.16 mm

Tolerance class insert (TCINS)

VC (m/min) (100 - 345)
AP (mm) (0.4 - 6)
