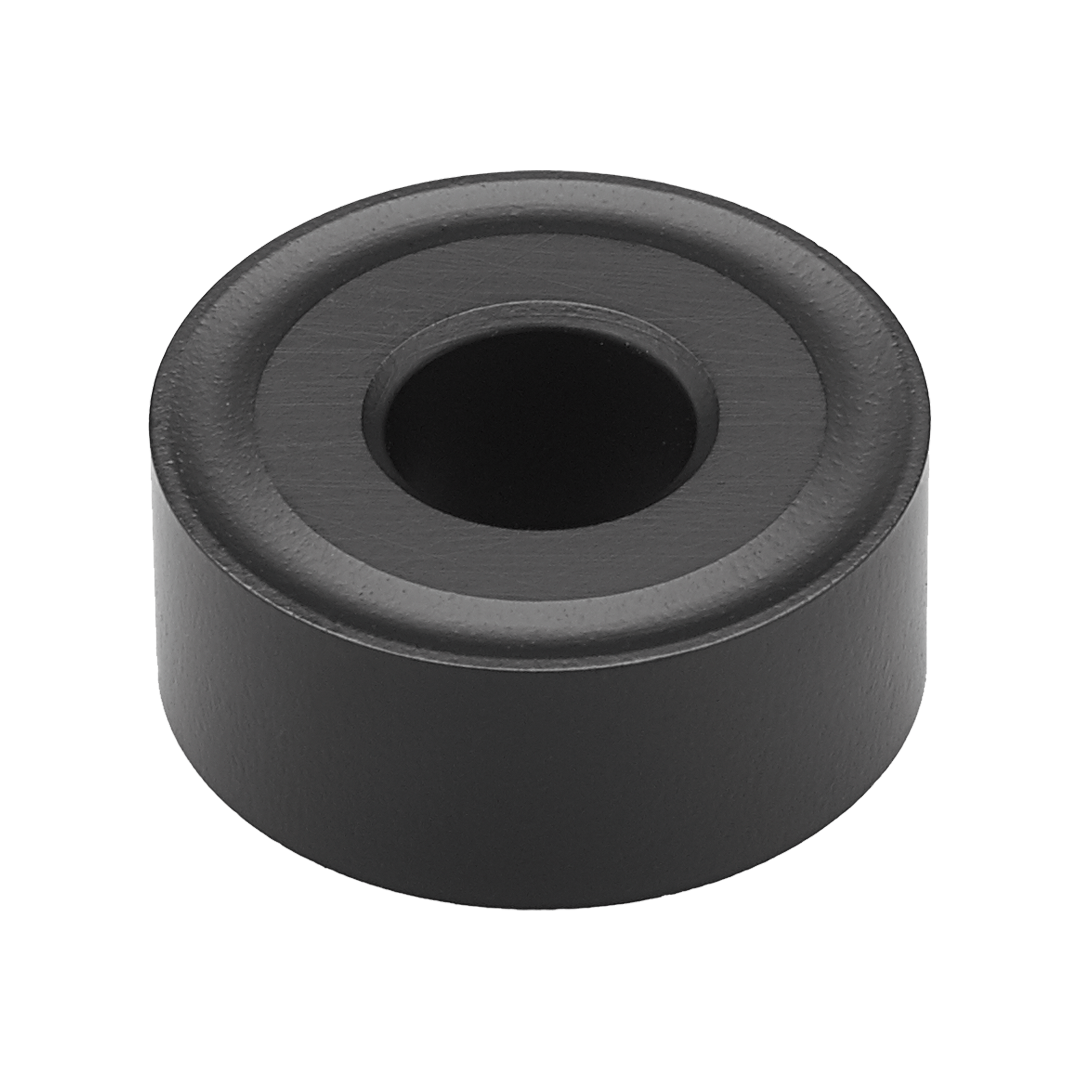

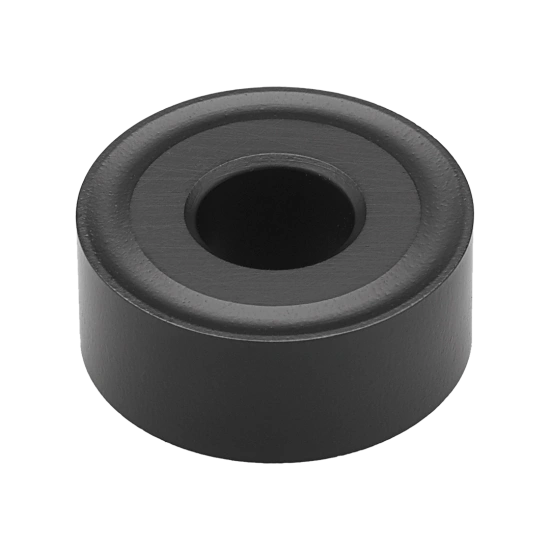

INSERT RNMG 120400-ST PH5740
1120440L9 | PAST. RNMG 120400-ST PH5740
Product data
Material classification level 1 (TMC1ISO)
- K
Operation type (CTPT)
External Turning, Internal Turning
Cutting edge count (CEDC)
1186
Inscribed circle diameter (IC)
12 mm
Insert shape code (SC)
R
Hand (HAND)
R
Grade (GRADE)
PH5740
Insert thickness (S)
4.76 mm
Chip breaker manufacturer's designation (CBMD)
ST
Fixing hole diameter (D1)
5.16 mm
Tolerance class insert (TCINS)
M
Start values
- M
VC (m/min) (95 - 210)
- P
VC (m/min) (100 - 228)
- K
