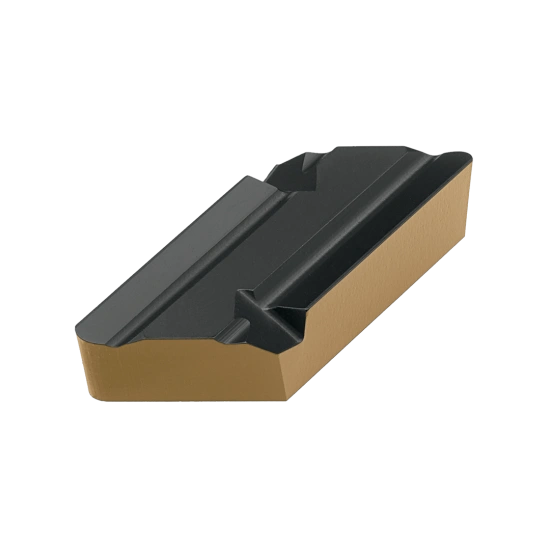

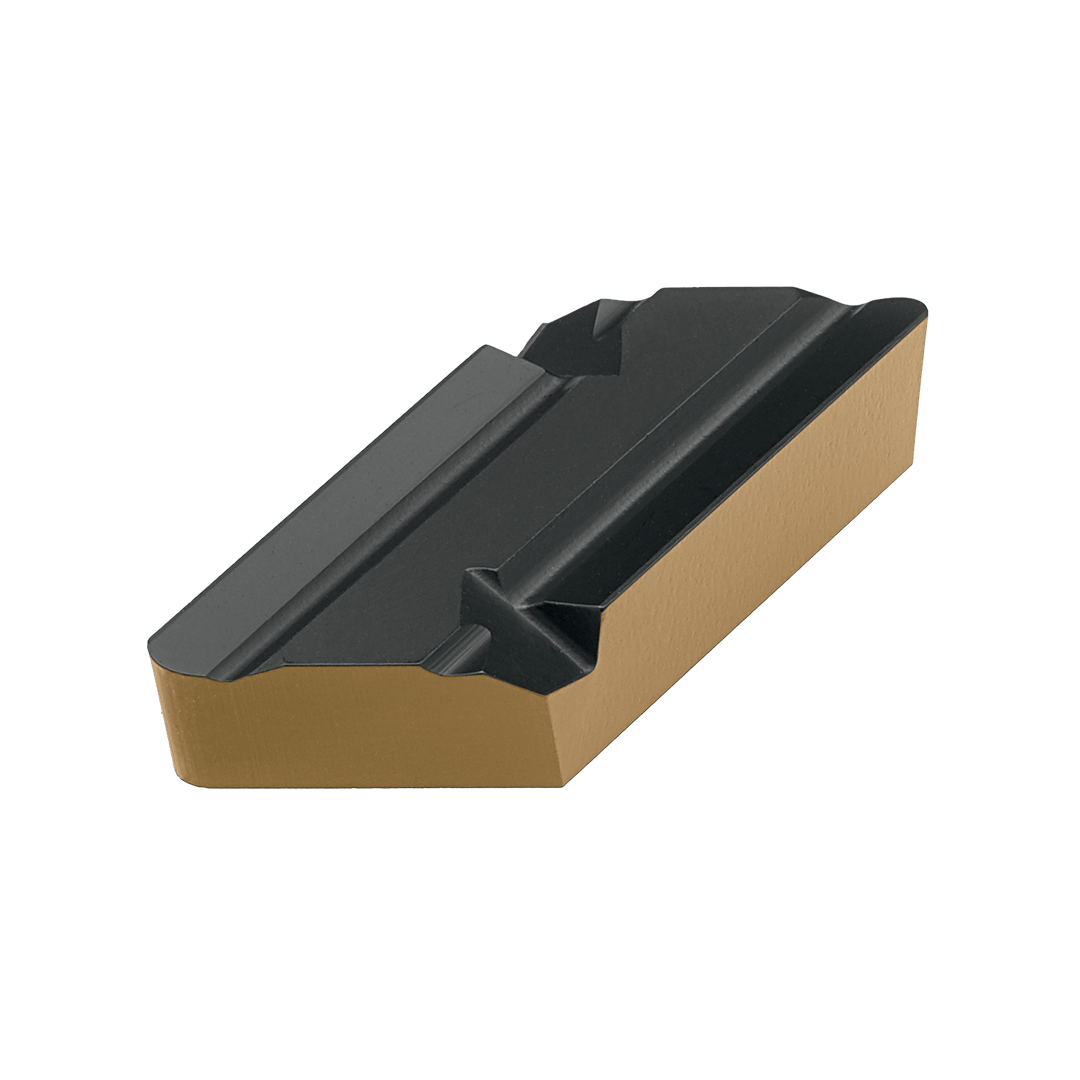

INSERT KNUX 160410-R02 PHG115
1120376R2 | PAST. KNUX 160410-R02 PHG115
Product data
Material classification level 1 (TMC1ISO)
- P
Operation type (CTPT)
External Turning, Internal Turning
Cutting edge count (CEDC)
4
Insert shape code (SC)
K

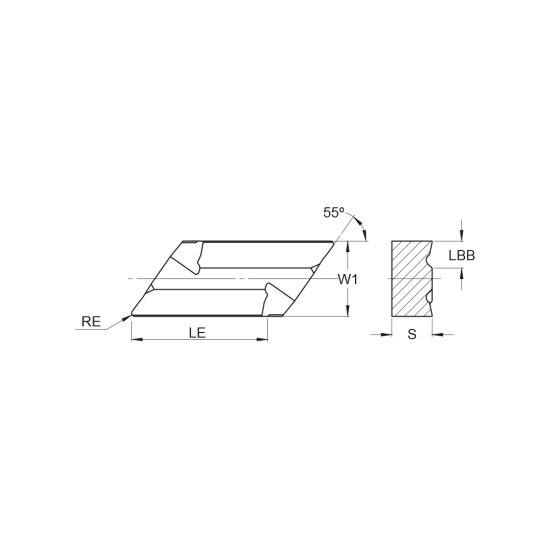

Cutting edge effective length (LE)
16.5 mm
Corner radius (RE)
1 mm
Hand (HAND)
R
Grade (GRADE)
PHG115
Insert thickness (S)
4.76 mm
Insert width (W1)
9.525
Tolerance class insert (TCINS)
U
Chip Breaker Width (LBB)
2.5 mm
Prog. Stocks
No
* cutting tool parameters according to ISO 13399. Read more here
Start values
- P
VC (m/min) (110 - 350)
FN (mm/r) (0.4 - 0.7)
AP (mm) (1.5 - 6)
FN (mm/r) (0.4 - 0.7)
AP (mm) (1.5 - 6)
