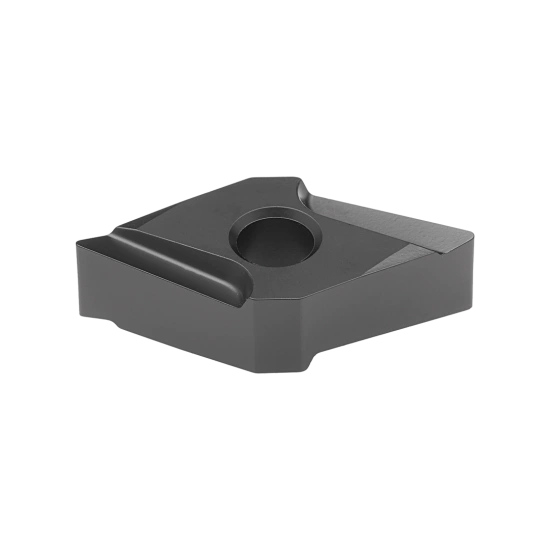

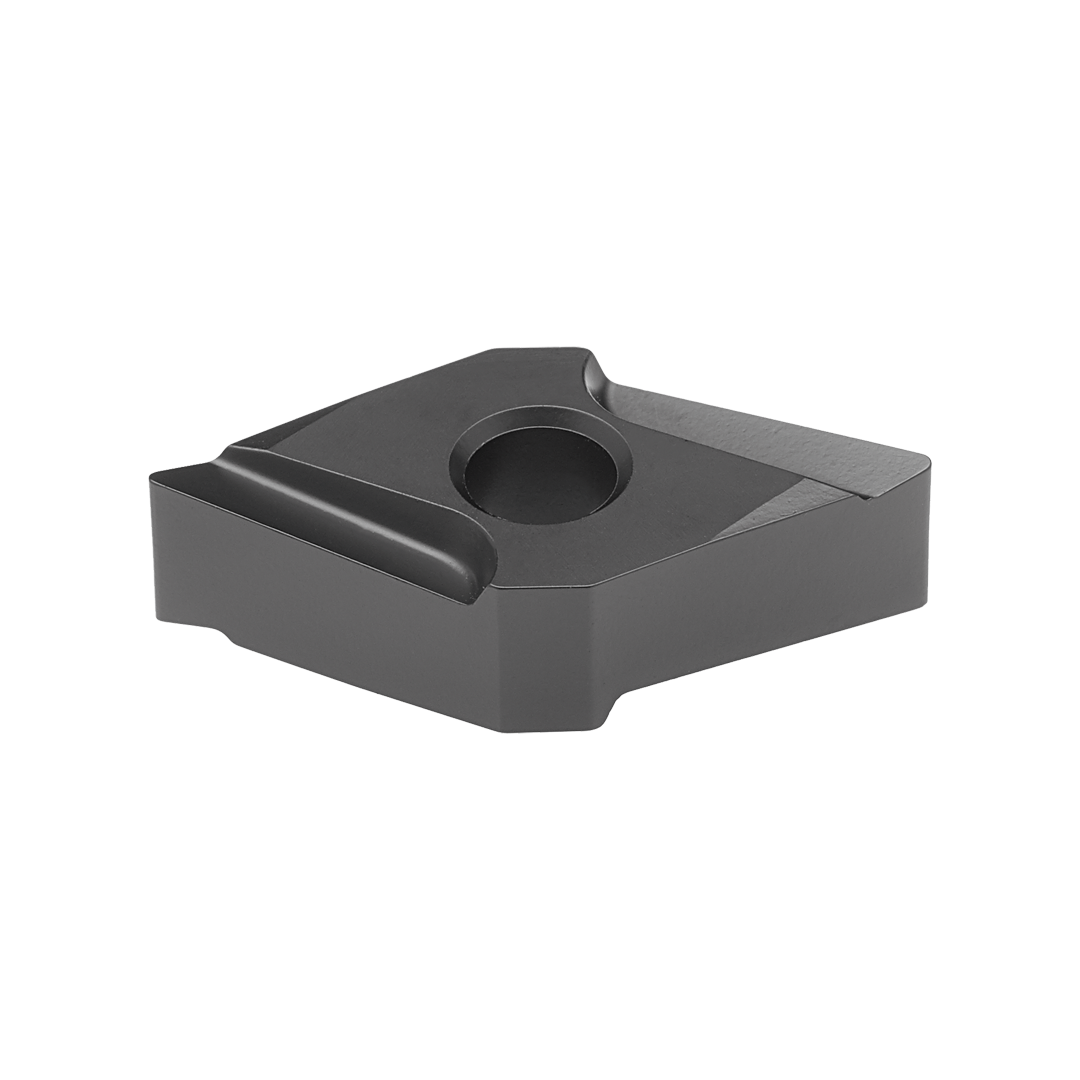

INSERT DNMX 150604-R02 PH5115

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

1120353L7 | PAST. DNMX 150604-R02 PH5115

Product data

Operation type (CTPT)

External Turning, Internal Turning

Cutting edge count (CEDC)

1099

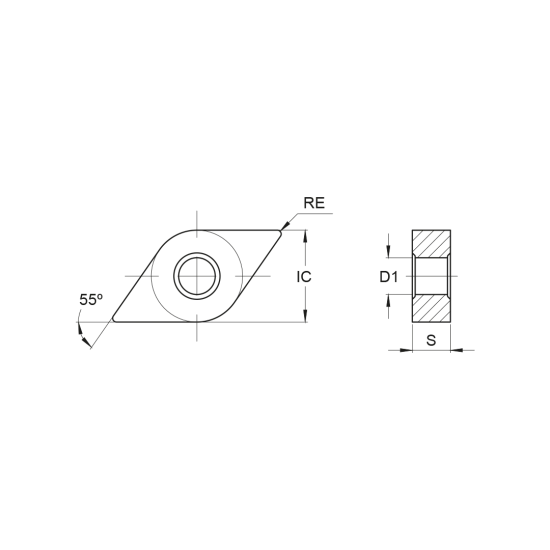

Inscribed circle diameter (IC)

12.7 mm

Insert shape code (SC)

Corner radius (RE)

0.4 mm

Hand (HAND)

Grade (GRADE)

PH5115

Insert thickness (S)

6.35 mm

Fixing hole diameter (D1)

5.16 mm

Tolerance class insert (TCINS)

VC (m/min) (126 - 280)

VC (m/min) (132 - 304)
