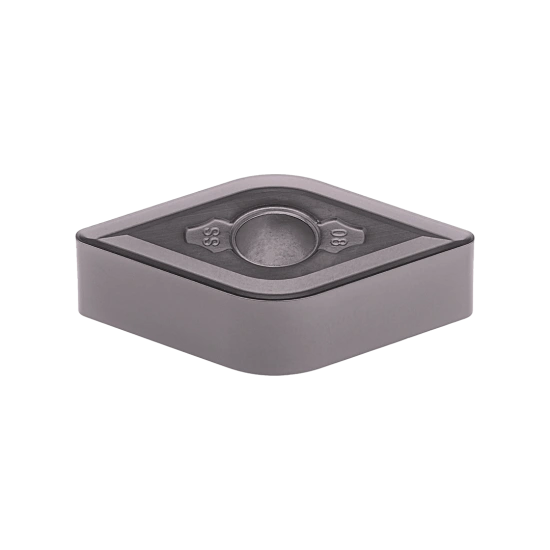

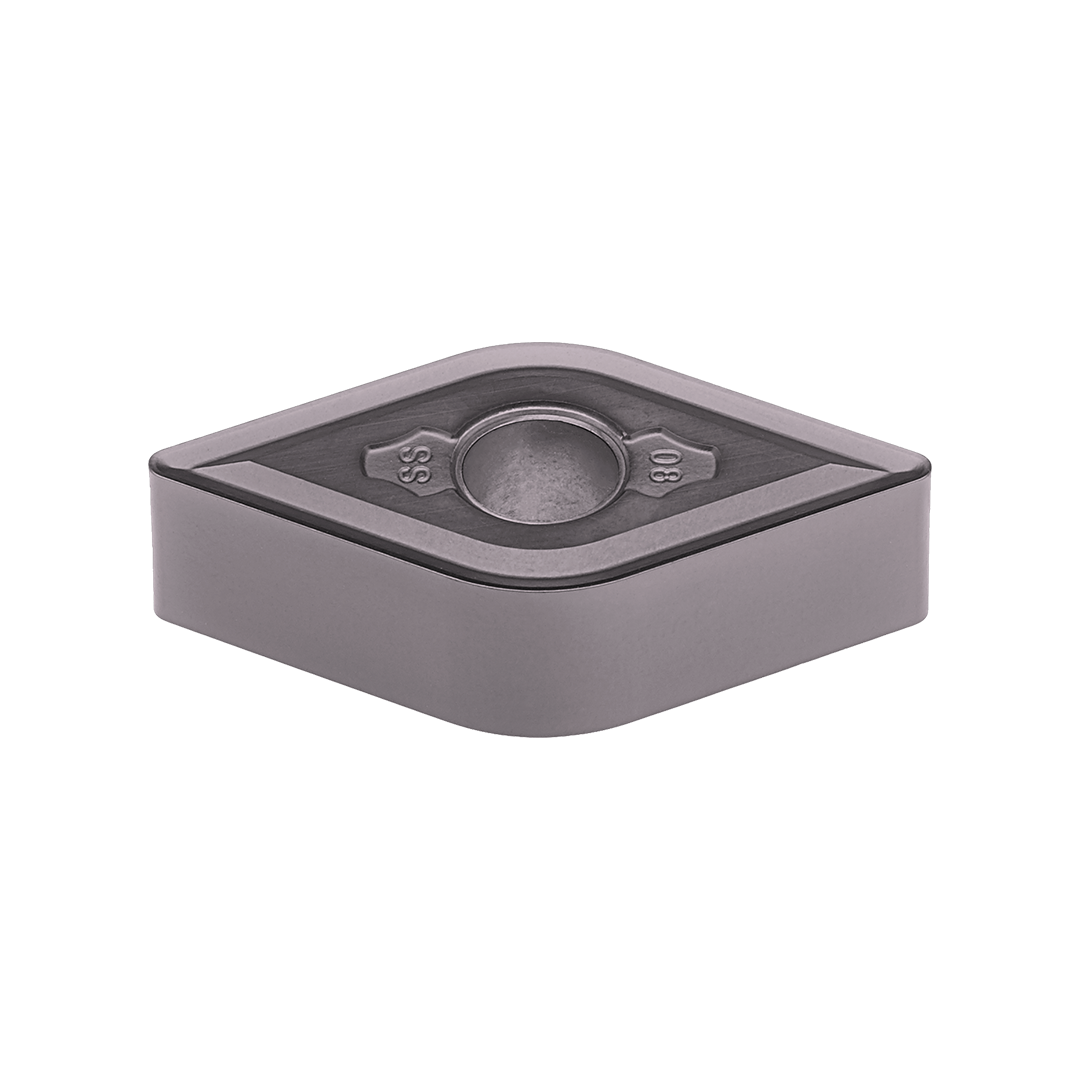

INSERT DNMG 150616-SS PH6325

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

112128767 | PAST. DNMG 150616-SS PH6325

Product data

Operation type (CTPT)

External Turning, Internal Turning

Cutting edge count (CEDC)

1059

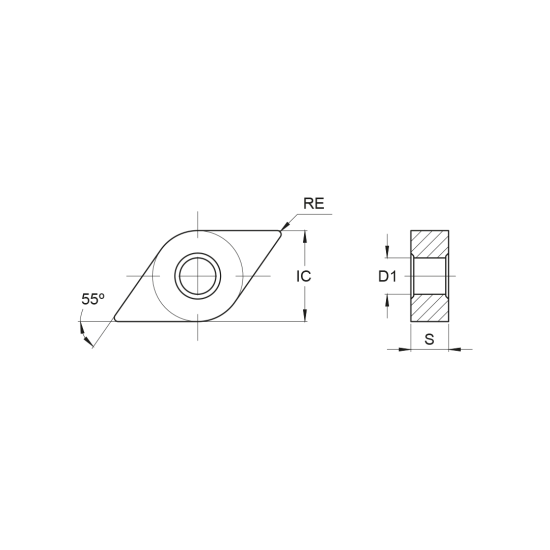

Inscribed circle diameter (IC)

12.7 mm

Insert shape code (SC)

Corner radius (RE)

1.6 mm

Hand (HAND)

Grade (GRADE)

PH6325

Insert thickness (S)

6.35 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

5.16 mm

Tolerance class insert (TCINS)

VC (m/min) (100 - 195)

VC (m/min) (21 - 140)
