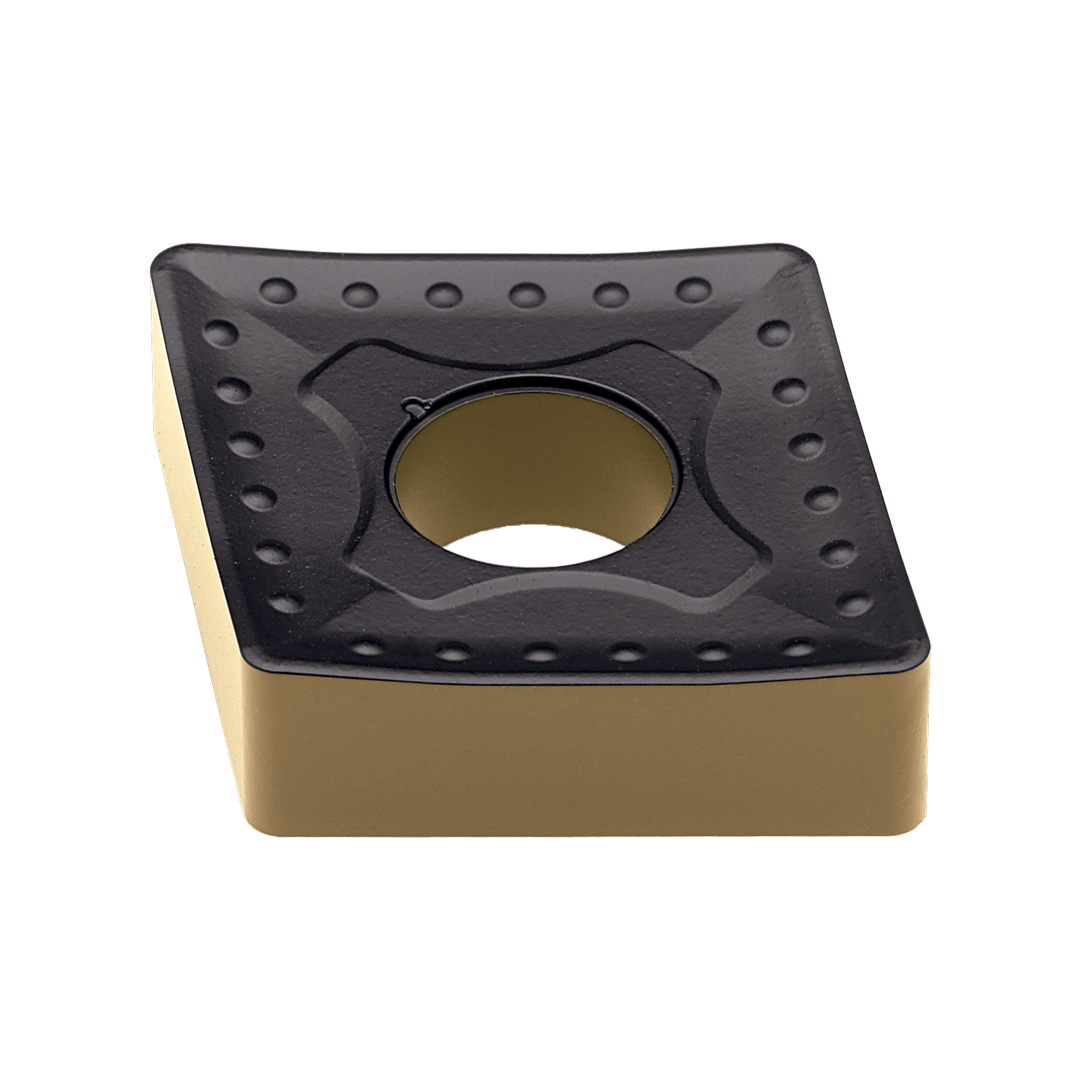

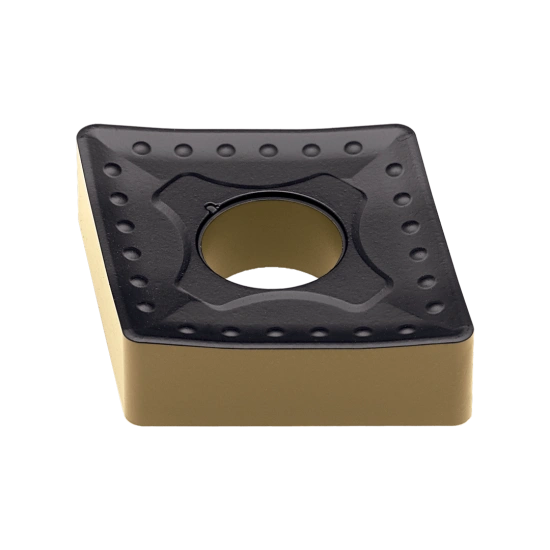

INSERT CNMM 190616-HY PHG115

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

1121252R2 | PAST. CNMM 190616-HY PHG115

Product data

Operation type (CTPT)

External Turning, Internal Turning

Cutting edge count (CEDC)

488

Inscribed circle diameter (IC)

19.05 mm

Insert shape code (SC)

Corner radius (RE)

1.6 mm

Hand (HAND)

Grade (GRADE)

PHG115

Insert thickness (S)

6.35 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

7.94 mm

Tolerance class insert (TCINS)

VC (m/min) (130 - 295)
AP (mm) (2.5 - 12)
