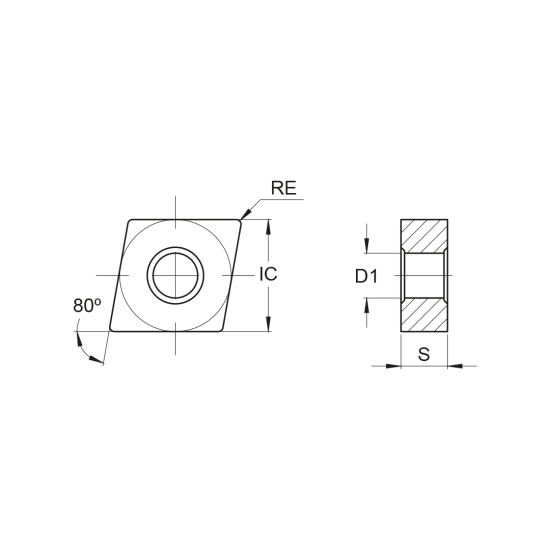

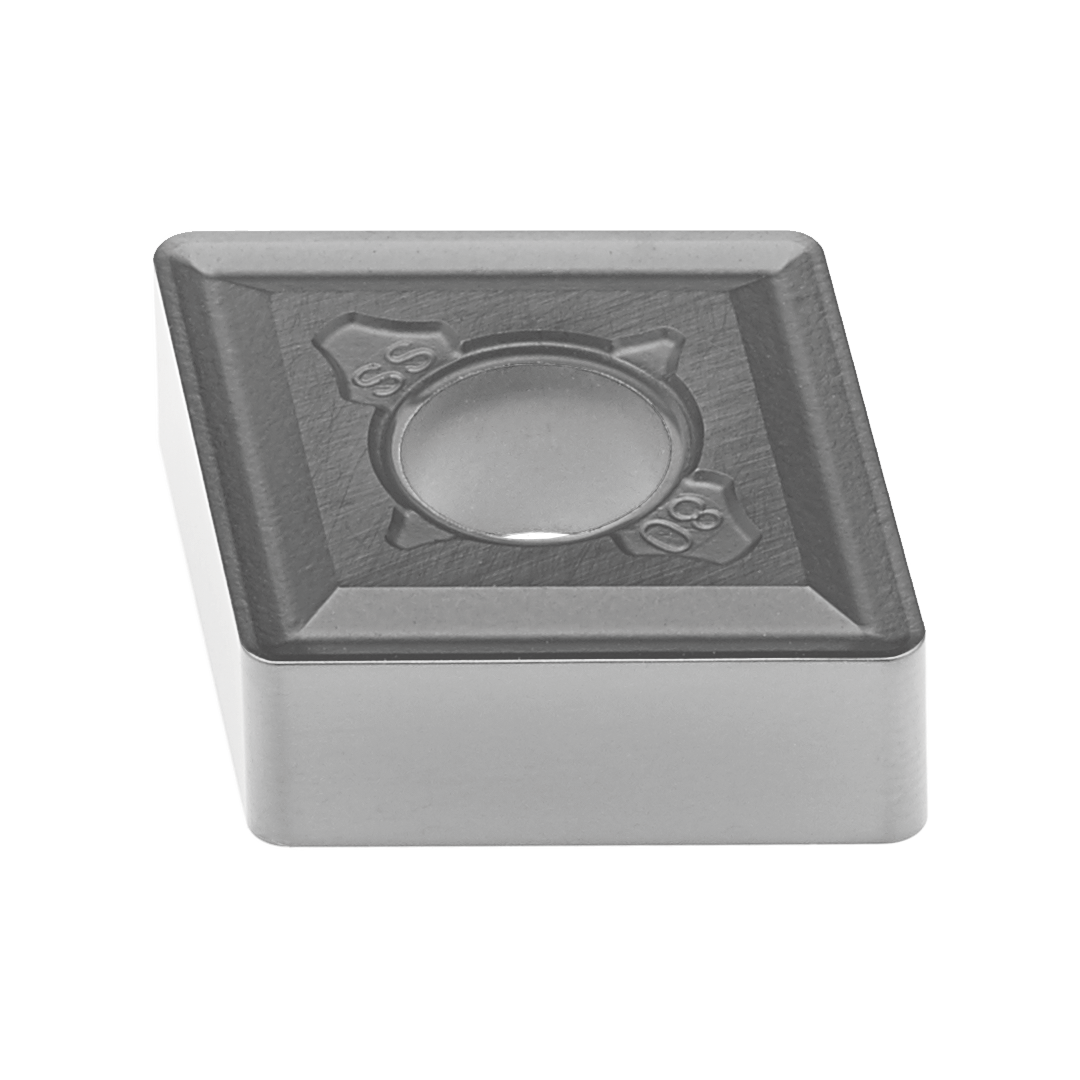

INSERT CNMG 120408-SS PH0706

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

112120111 | PAST. CNMG 120408-SS PH0706

Product data

Operation type (CTPT)

External Turning, Internal Turning

Cutting edge count (CEDC)

183

Inscribed circle diameter (IC)

12.7 mm

Insert shape code (SC)

Corner radius (RE)

0.8 mm

Hand (HAND)

Grade (GRADE)

PH0706

Insert thickness (S)

4.76 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

5.16 mm

Tolerance class insert (TCINS)

VC (m/min) (75 - 158)
