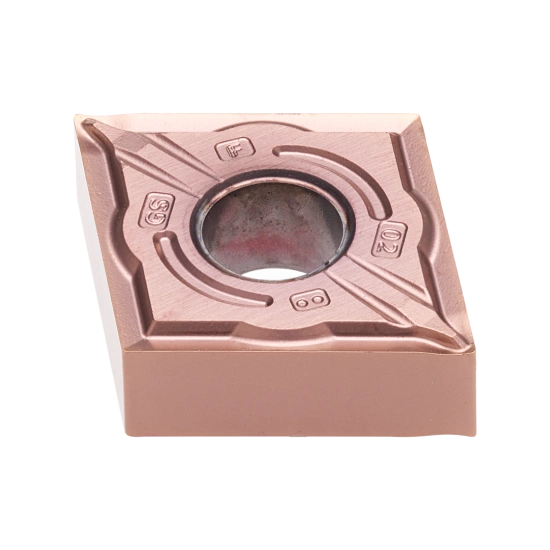

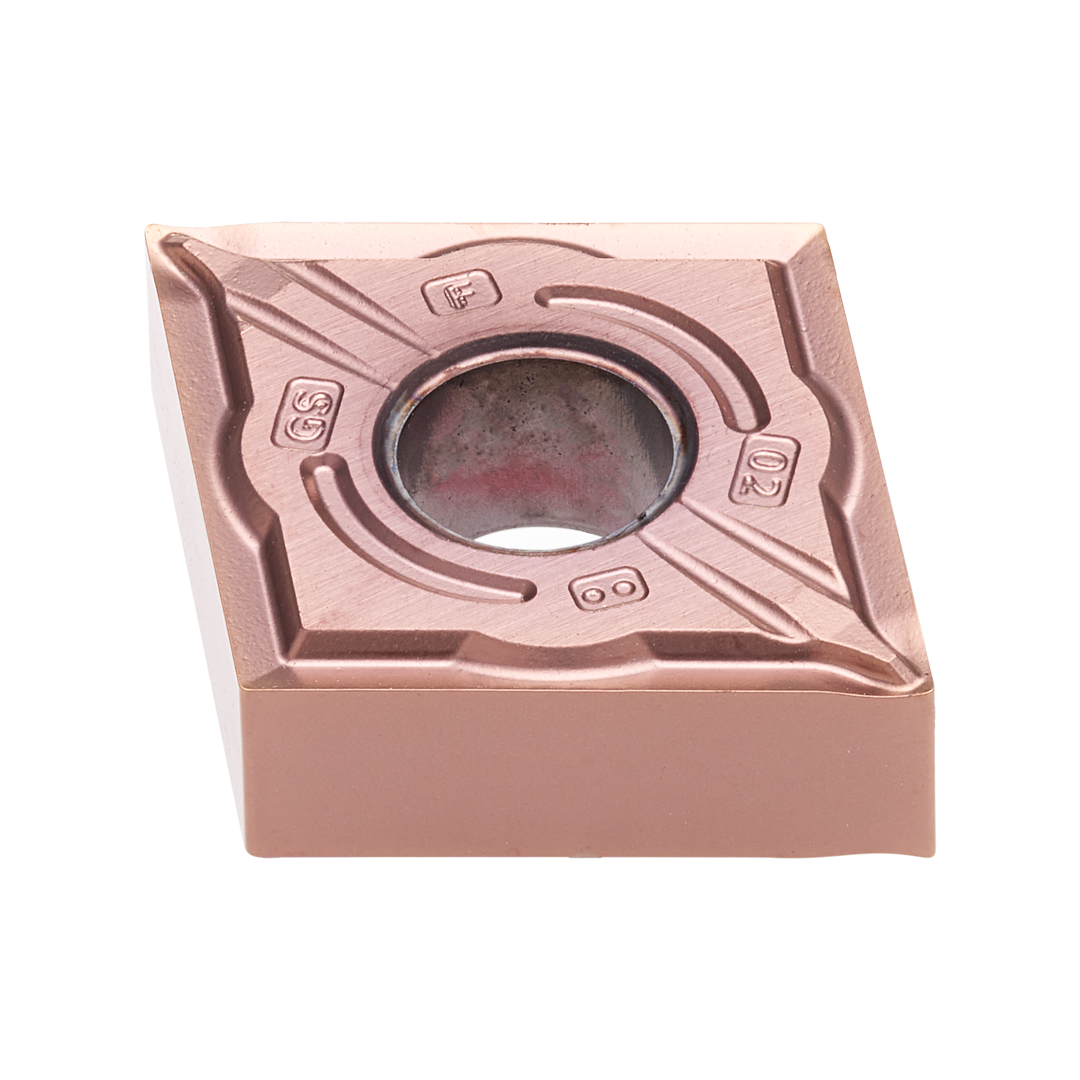

INSERT CNMG 120402-GSF PHH905

1124855W8 | PAST. CNMG 120402-GSF PHH905

Product data

Operation type (CTPT)

External Turning, Internal Turning

Cutting edge count (CEDC)

Inscribed circle diameter (IC)

12.7 mm

Insert shape code (SC)

Corner radius (RE)

0.2 mm

Hand (HAND)

Grade (GRADE)

PHH905

Insert thickness (S)

4.76 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

5.16 mm

Tolerance class insert (TCINS)

VC (m/min) (115 - 310)
AP (mm) (0.1 - 2.5)

VC (m/min) (35 - 210)
AP (mm) (0.1 - 2.5)
