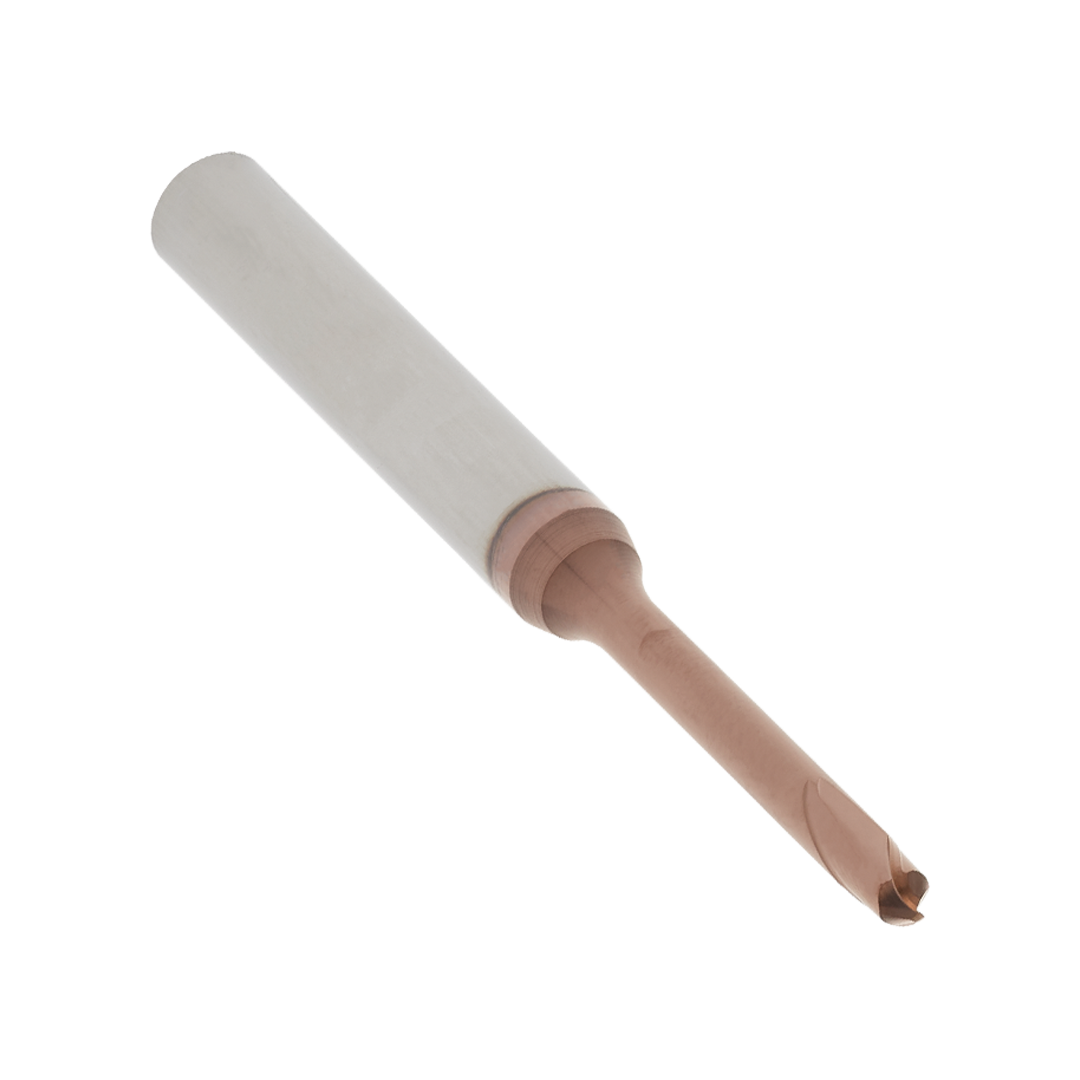

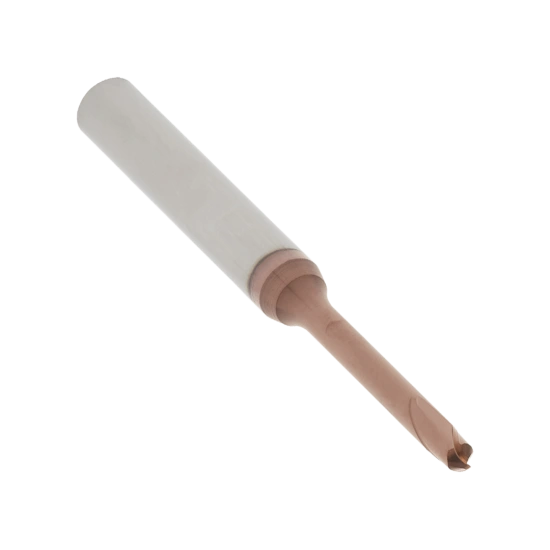

SC ENDMILL HB30MINS 2 016 02 128 PHH603
1180337X4 | FRESA HB30MINS 2 016 02 128 PHH603
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
- S
- H
Hand (HAND)
R
Grade (GRADE)
PHH603
Depth of cut maximum (APMX)
1.6 mm
Connection diameter (DCONMS)
4 mm
Cutting diameter (DC)
1.6 mm
Flute count (NOF)
S
Flute Helix Angle (FHA)
30
Usable length (LU)
2.8 mm
Overall length (OAL)
50 mm
