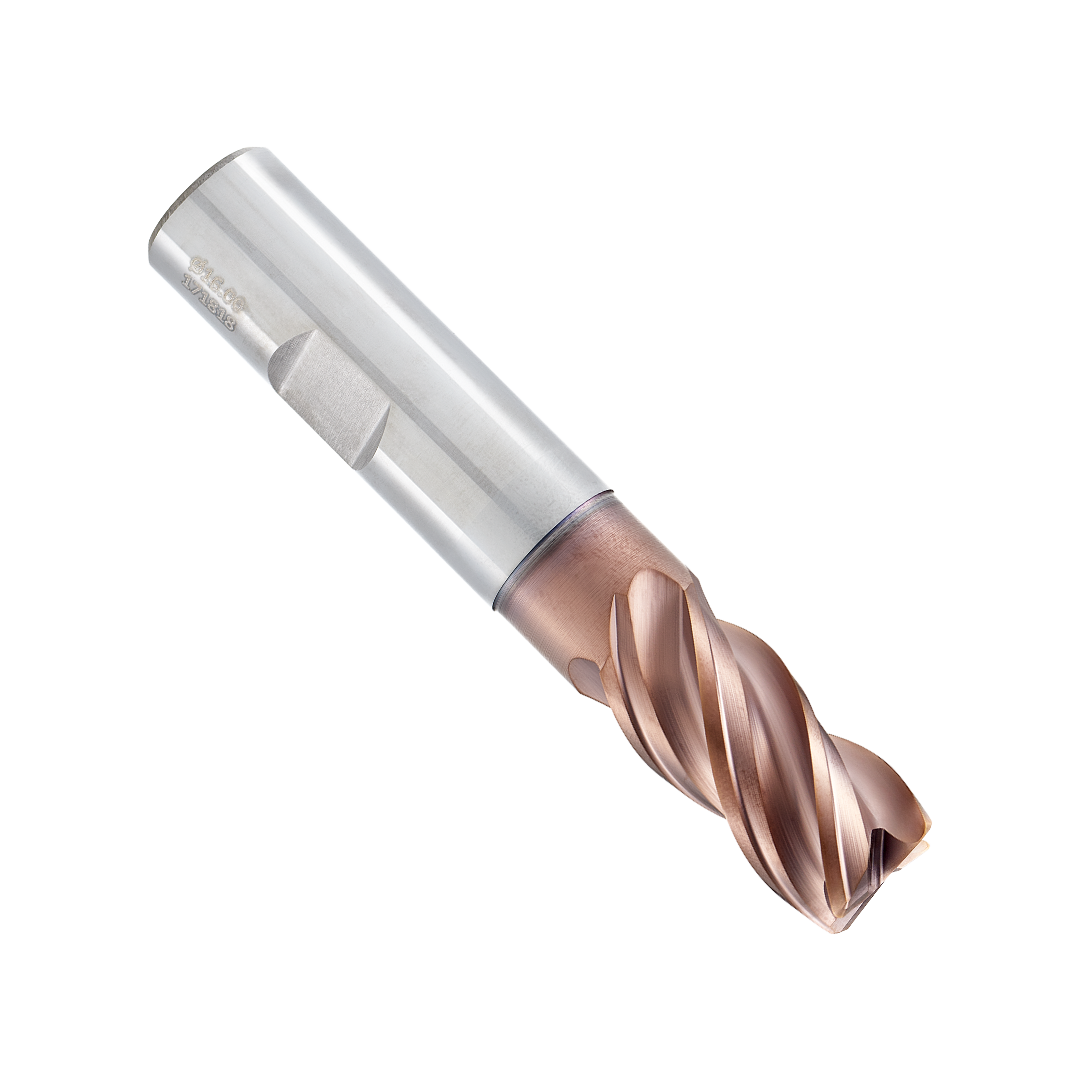

SC ENDMILL HR37SS 4 040 08 R020-W PHF920
11823531F | FRESA HR37SS 4 040 08 R020-W PHF920
Product data
Material classification level 1 (TMC1ISO)
- M
Corner radius (RE)
0.2 mm
Hand (HAND)
N
Grade (GRADE)
PHF920
Depth of cut maximum (APMX)
8 mm
Connection diameter (DCONMS)
6 mm
Cutting diameter (DC)
4 mm
Flute count (NOF)
4
Flute Helix Angle (FHA)
38-39
Usable length (LU)
19 mm
Overall length (OAL)
57 mm
