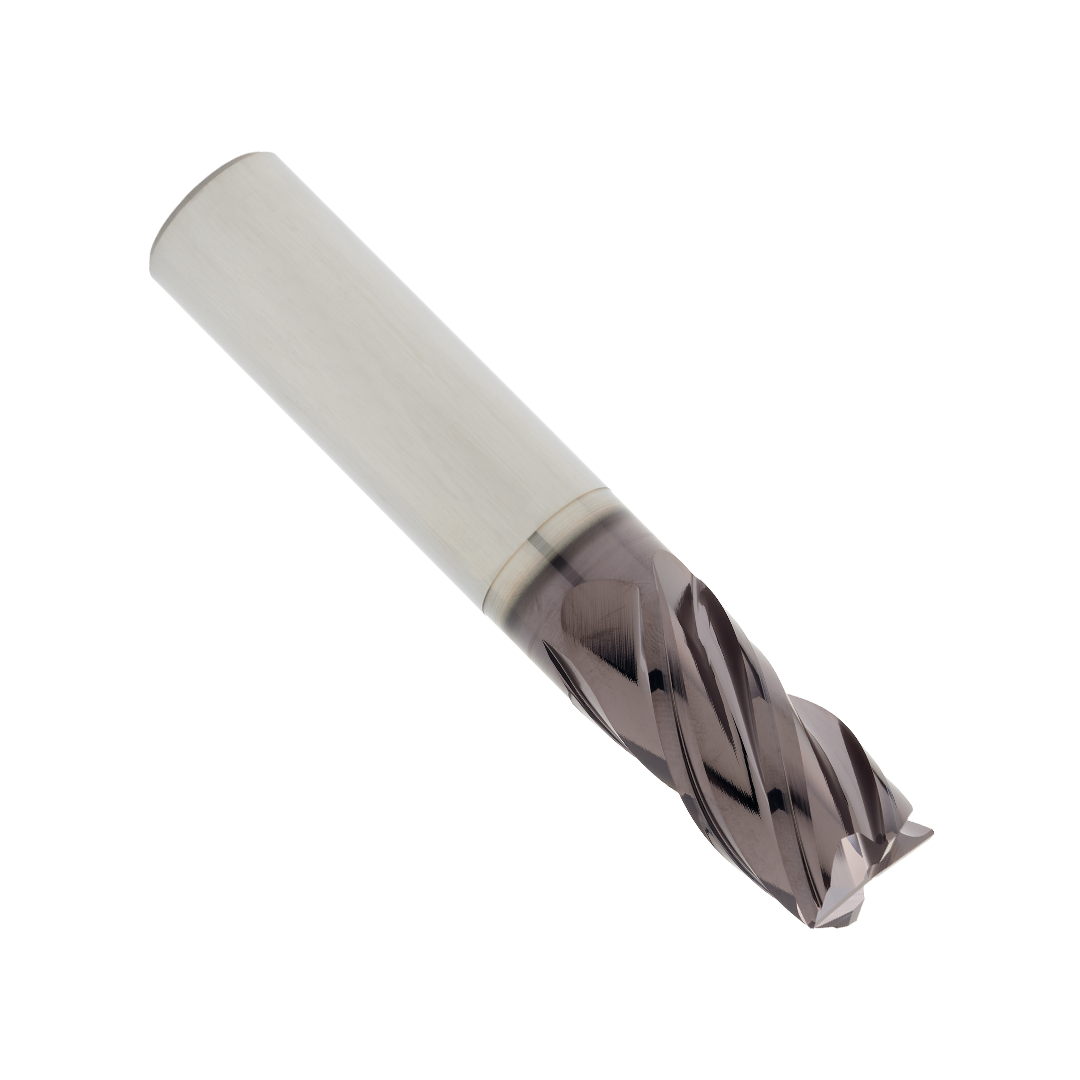

SC ENDMILL HC40SS 4 080 19 PHU920
1180329Z9 | FRESA HC40SS 4 080 19 PHU920
Product data
Material classification level 1 (TMC1ISO)
- M
Hand (HAND)
N
Grade (GRADE)
PHU920
Depth of cut maximum (APMX)
19 mm
Connection diameter (DCONMS)
8 mm
Cutting diameter (DC)
8 mm
Flute count (NOF)
4
Flute Helix Angle (FHA)
40-41
Usable length (LU)
27 mm
Overall length (OAL)
63 mm
