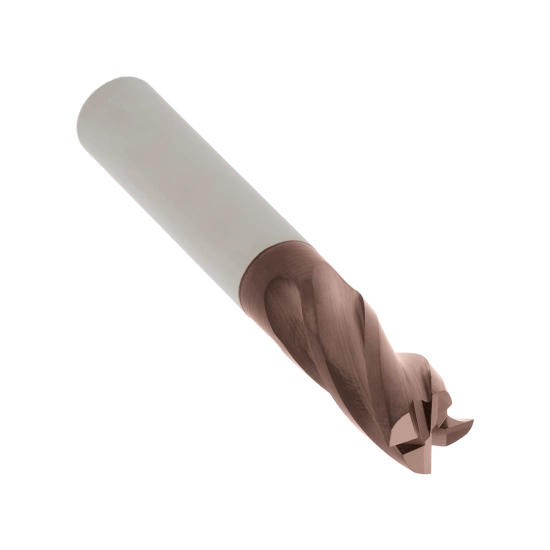

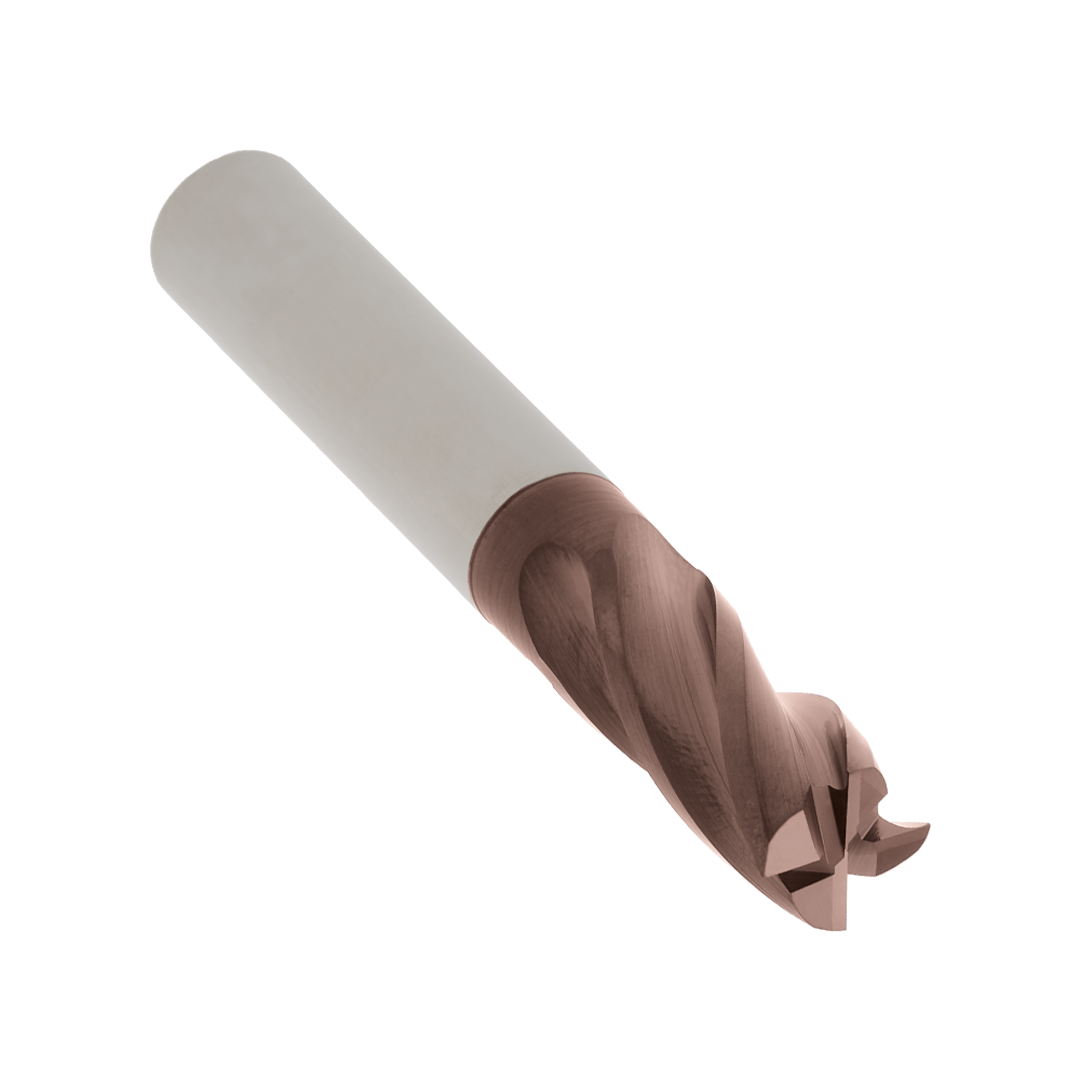

SC ENDMILL HF30HL 4 100 40 PHH603
1180359X4 | FRESA HF30HL 4 100 40 PHH603
Product data
Material classification level 1 (TMC1ISO)
- H
Hand (HAND)
N
Grade (GRADE)
PHH603
Depth of cut maximum (APMX)
40 mm
Connection diameter (DCONMS)
10 mm
Cutting diameter (DC)
10 mm
Flute count (NOF)
4
Flute Helix Angle (FHA)
30
Usable length (LU)
40 mm
Overall length (OAL)
100 mm
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
