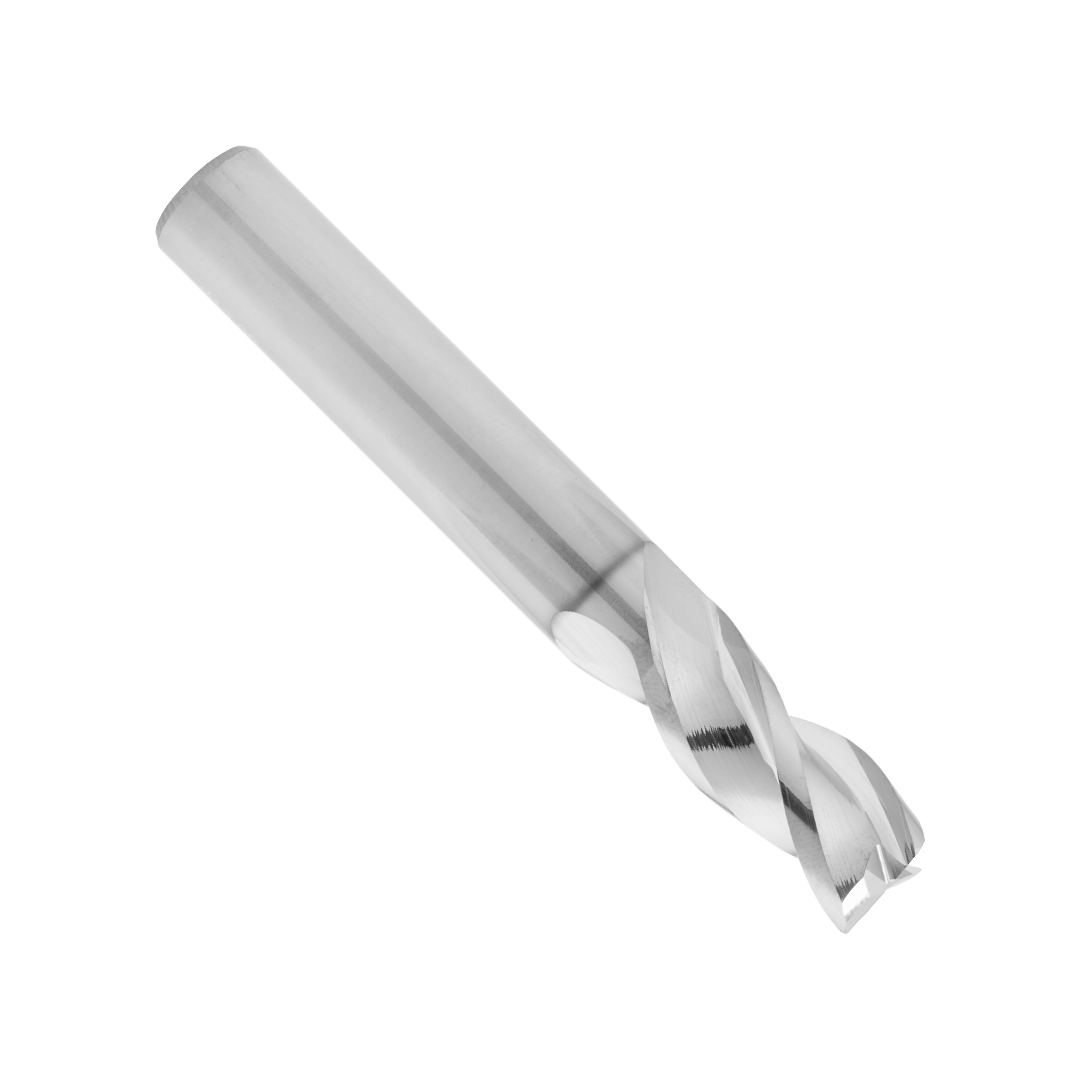

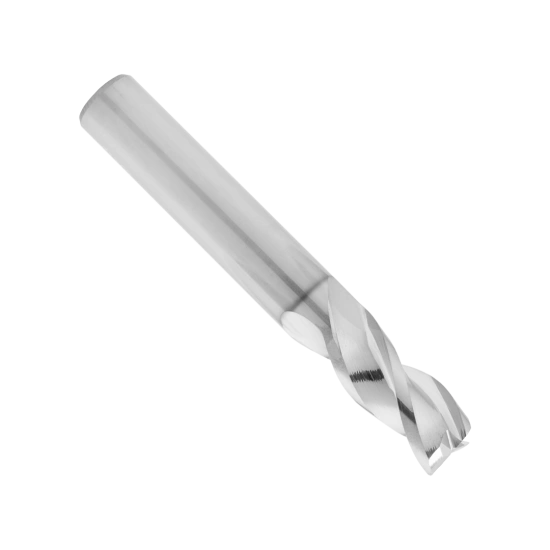

SC ENDMILL HR35HPAS 3 180 36 R050 PHT910

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

1182448H3 | FRESA HR35HPAS 3 180 36 R050 PHT910

Product data

Material classification level 1 (TMC1ISO)

Corner radius (RE)

0.5 mm

Hand (HAND)

Grade (GRADE)

PHT910

Depth of cut maximum (APMX)

36 mm

Connection diameter (DCONMS)

18 mm

Cutting diameter (DC)

18 mm

Flute count (NOF)

Flute Helix Angle (FHA)

Overall length (OAL)

92 mm
