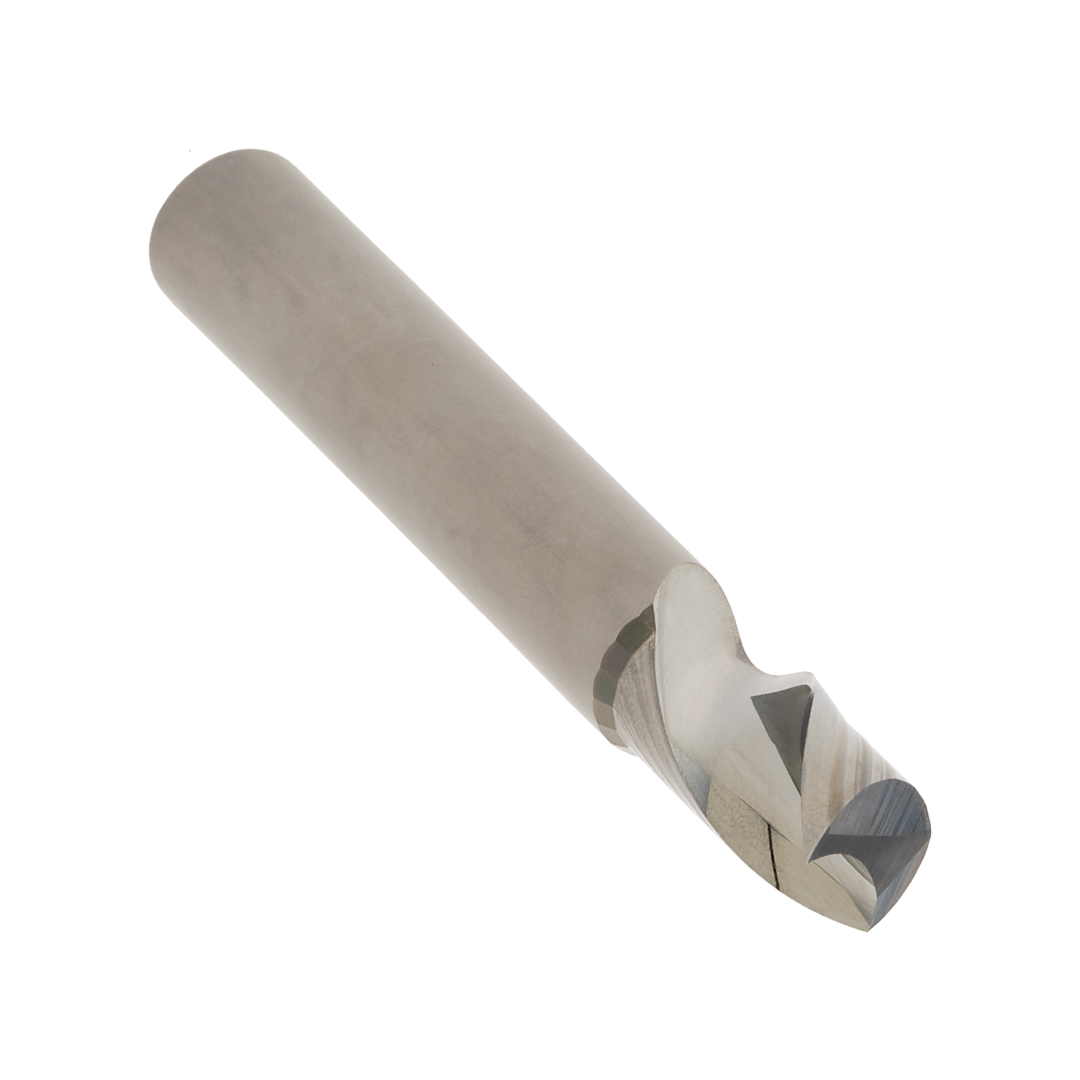

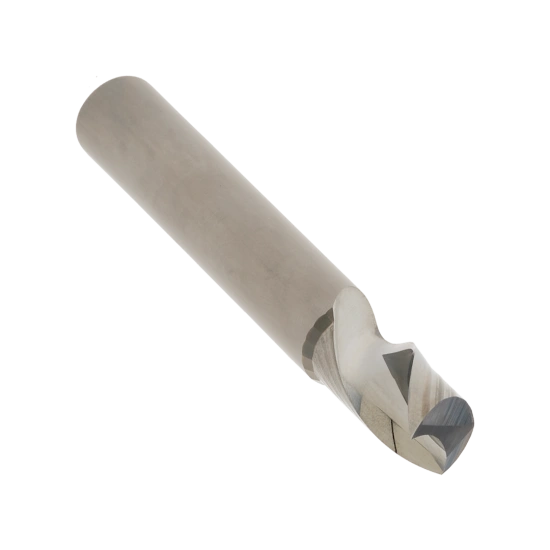

SC ENDMILL HF30AS 1 100 25 PH0920
118075712 | FRESA HF30AS 1 100 25 PH0920
Product data
Material classification level 1 (TMC1ISO)
- N
Hand (HAND)
N
Grade (GRADE)
PH0920
Depth of cut maximum (APMX)
25 mm
Connection diameter (DCONMS)
10 mm
Cutting diameter (DC)
10 mm
Flute count (NOF)
1
Flute Helix Angle (FHA)
30
Usable length (LU)
25 mm
Overall length (OAL)
72 mm
