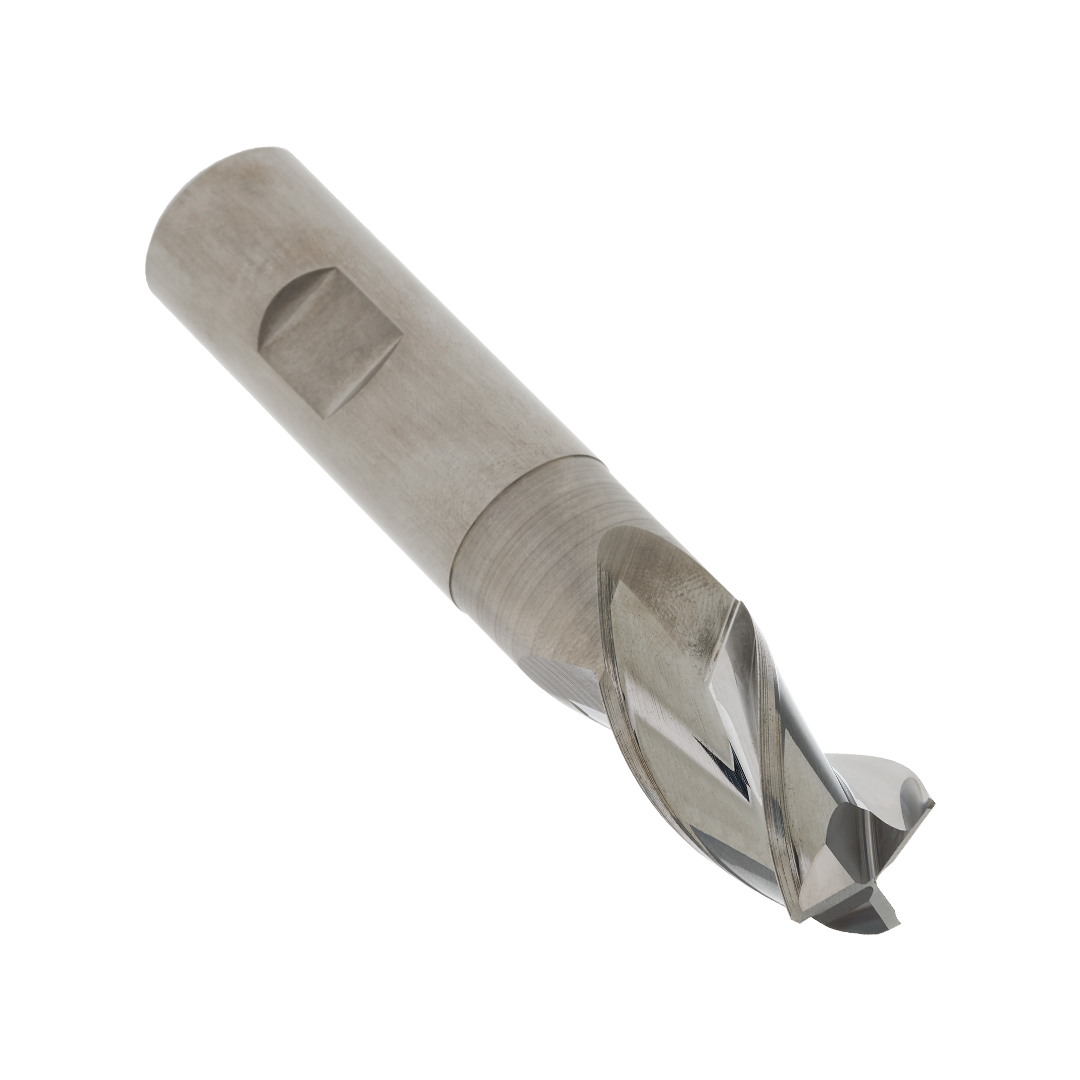

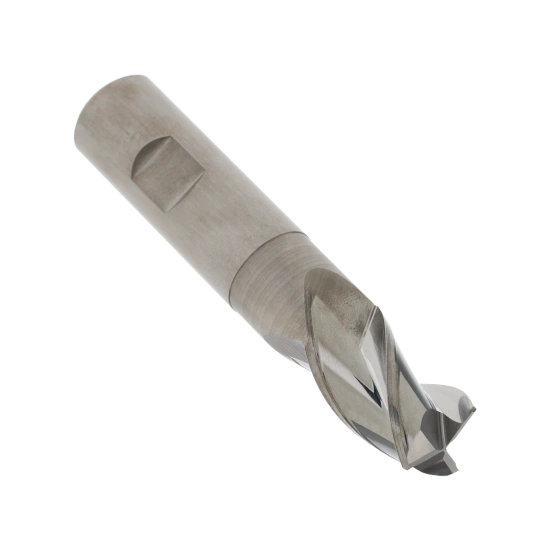

SC ENDMILL HC38AS 3 100 19 PH0920
118040612 | FRESA HC38AS 3 100 19 PH0920
Product data
Material classification level 1 (TMC1ISO)
- N
Hand (HAND)
N
Grade (GRADE)
PH0920
Depth of cut maximum (APMX)
19 mm
Connection diameter (DCONMS)
10 mm
Cutting diameter (DC)
10 mm
Flute count (NOF)
3
Flute Helix Angle (FHA)
38
Usable length (LU)
32 mm
Overall length (OAL)
72 mm
