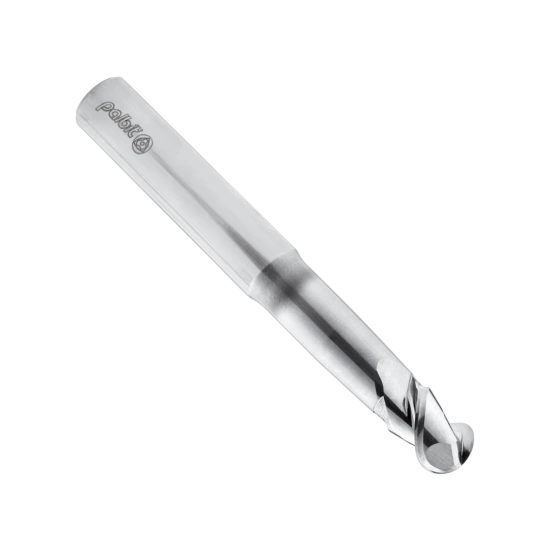

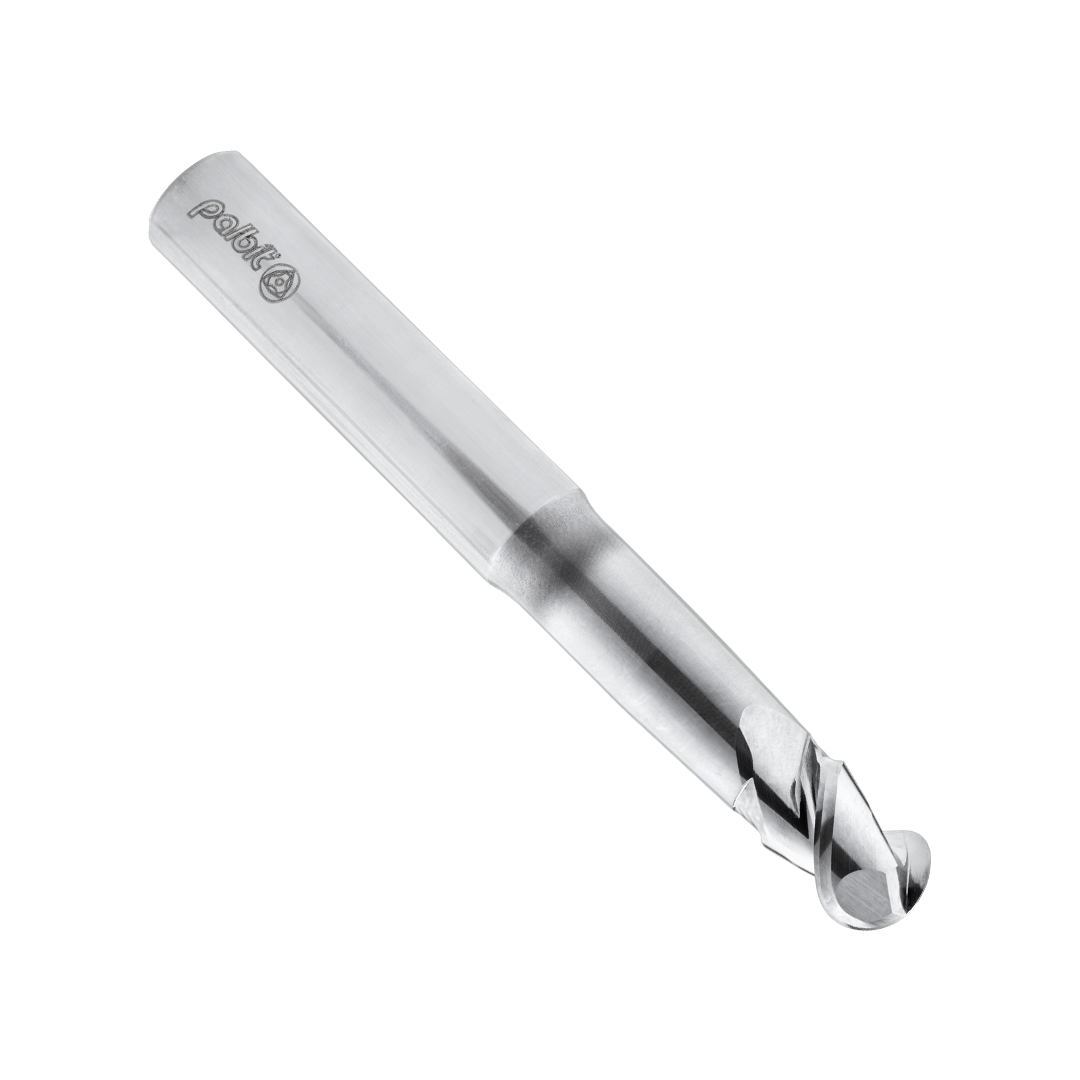

SC ENDMILL HB50HPAS 2 200 20 PHT910
1182462H3 | FRESA HB50HPAS 2 200 20 PHT910
Product data
Material classification level 1 (TMC1ISO)
- N
Hand (HAND)
N
Grade (GRADE)
PHT910
Depth of cut maximum (APMX)
20 mm
Connection diameter (DCONMS)
20 mm
Cutting diameter (DC)
20 mm
Flute count (NOF)
2
Flute Helix Angle (FHA)
50
Usable length (LU)
50 mm
Overall length (OAL)
104 mm
* cutting tool parameters according to ISO 13399. Read more here
