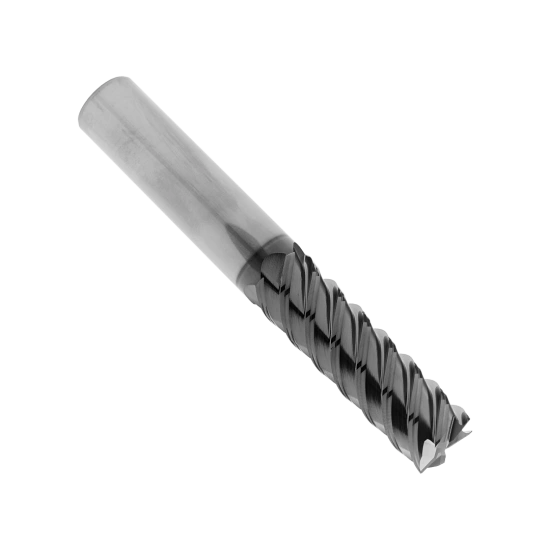

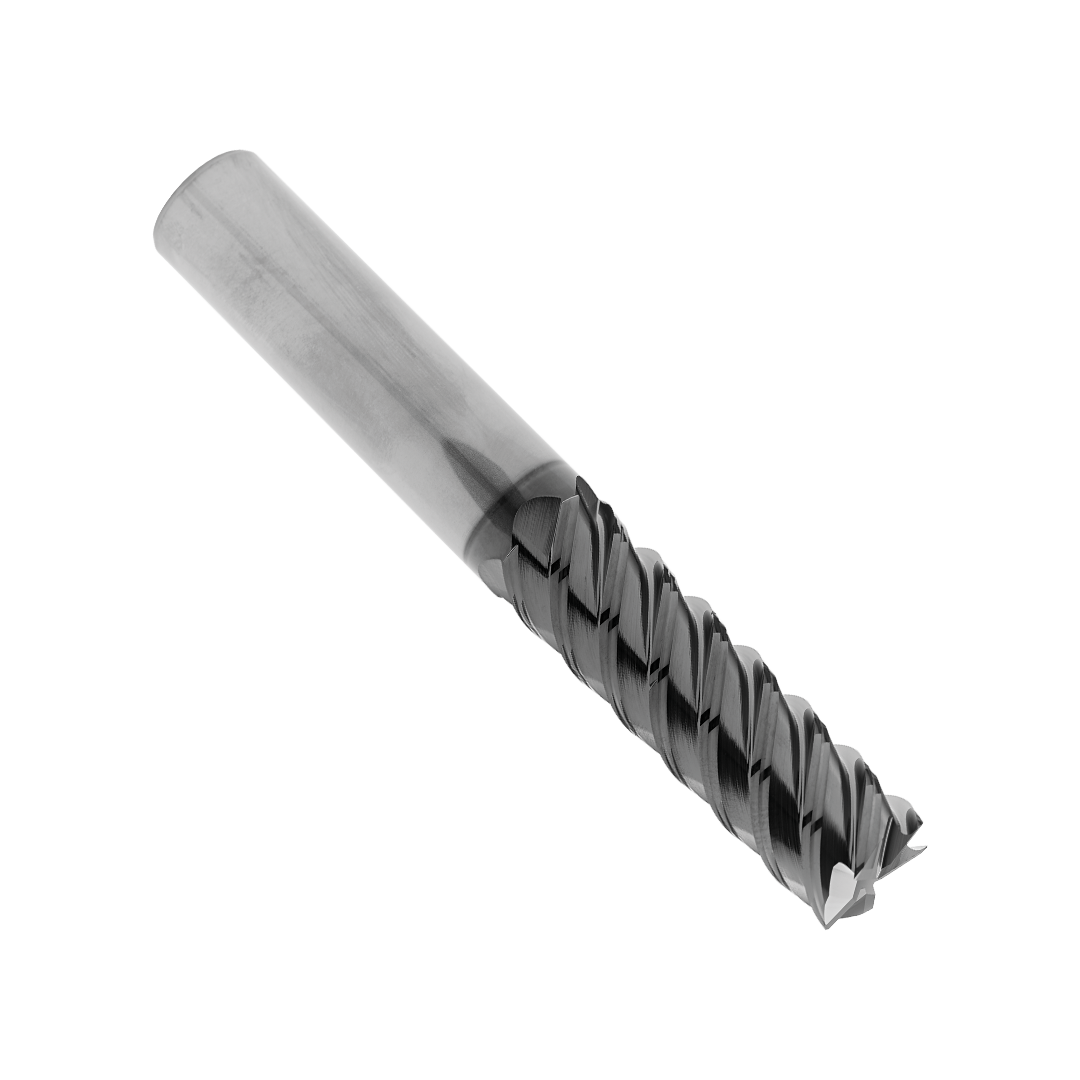

SC ENDMILL HC40TSPXL 5 060 30-W PHP920
1180514T1 | FRESA HC40TSPXL 5 060 30-W PHP920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Hand (HAND)
R
Grade (GRADE)
PHP920
Depth of cut maximum (APMX)
30 mm
Connection diameter (DCONMS)
6 mm
Cutting diameter (DC)
6 mm
Flute count (NOF)
5
Usable length (LU)
36 mm
Overall length (OAL)
75 mm
