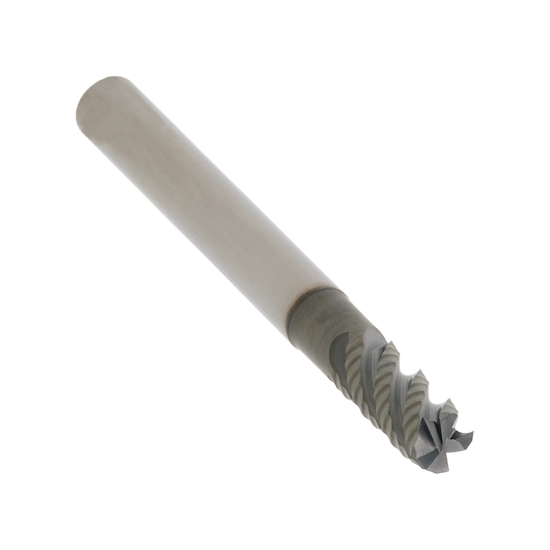

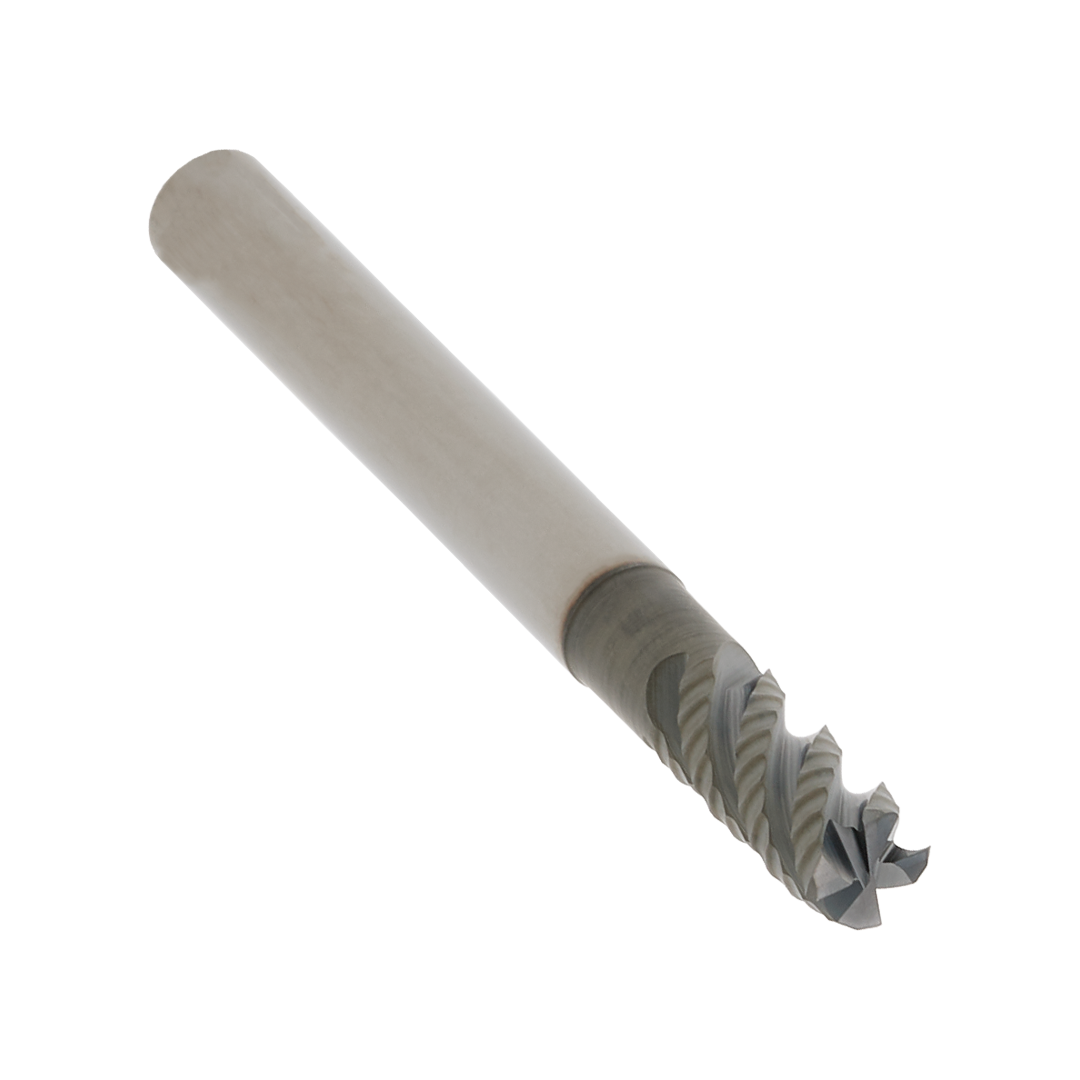

SC ENDMILL HRO45GS 5 160 32-W PHU920
1180567Z9 | FRESA HRO45GS 5 160 32-W PHU920
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
Hand (HAND)
R
Grade (GRADE)
PHU920
Depth of cut maximum (APMX)
32 mm
Connection diameter (DCONMS)
16 mm
Cutting diameter (DC)
16 mm
Flute count (NOF)
5
Flute Helix Angle (FHA)
45
Usable length (LU)
44 mm
Overall length (OAL)
92 mm
