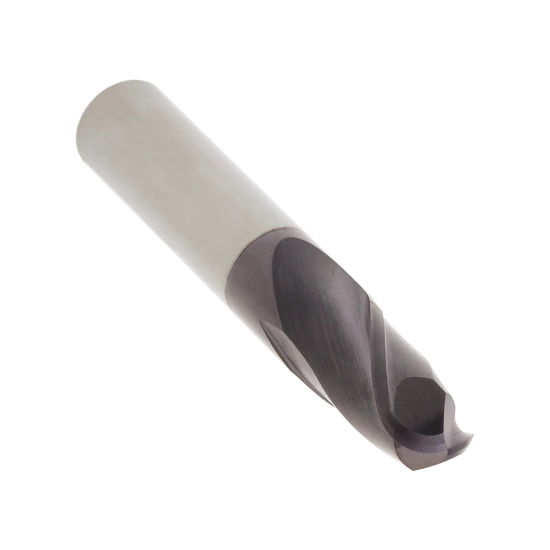

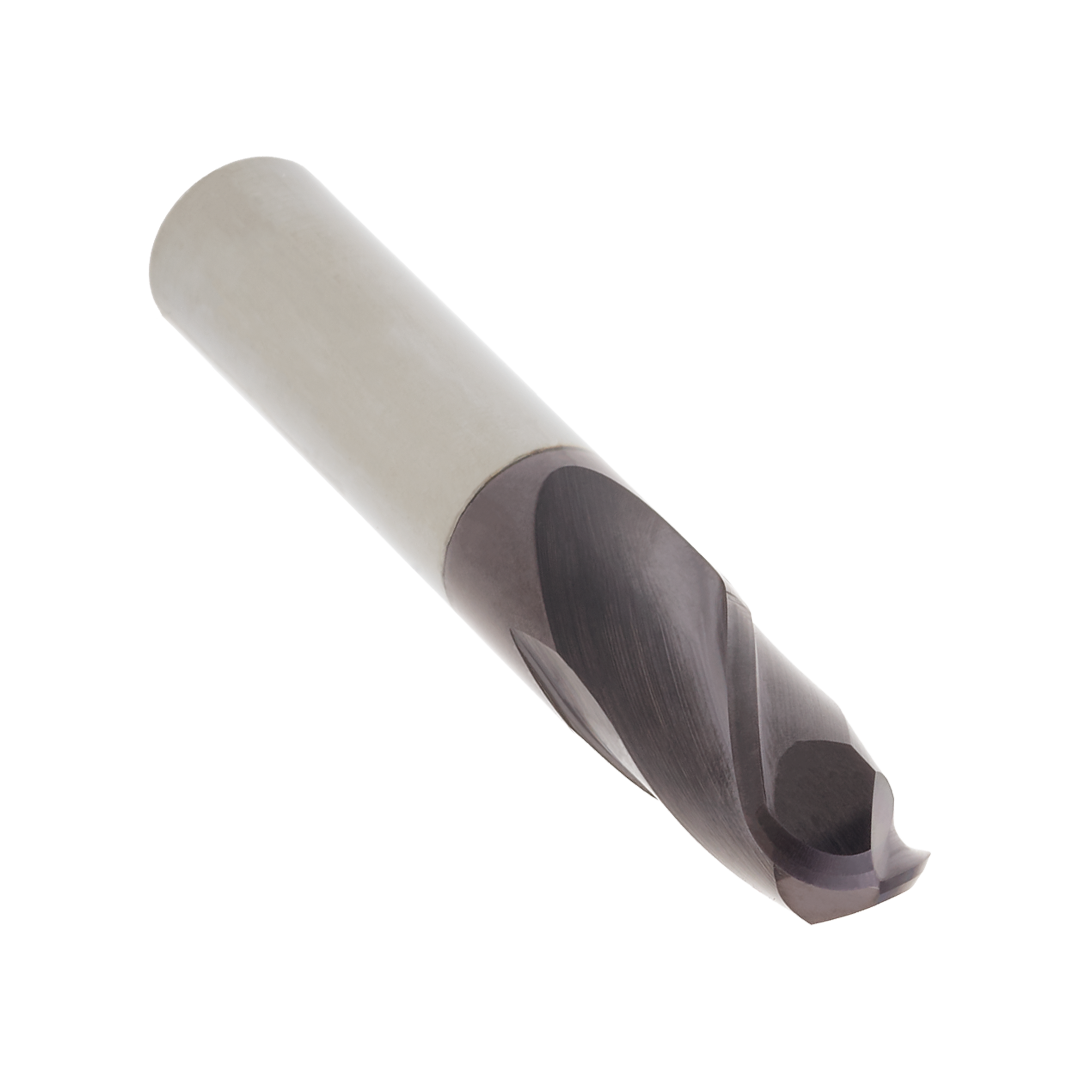

SC ENDMILL HB30GS 2 040 14 PHP920
1180280T1 | FRESA HB30GS 2 040 14 PHP920
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
Hand (HAND)
R
Grade (GRADE)
PHP920
Depth of cut maximum (APMX)
14 mm
Connection diameter (DCONMS)
4 mm
Cutting diameter (DC)
4 mm
Flute count (NOF)
2
Flute Helix Angle (FHA)
30
Overall length (OAL)
50 mm
