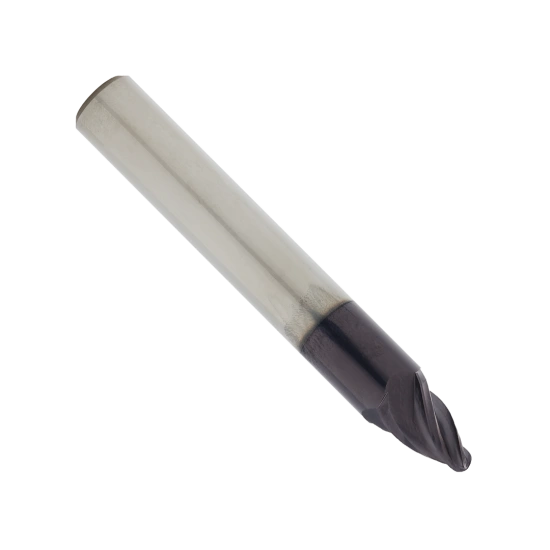

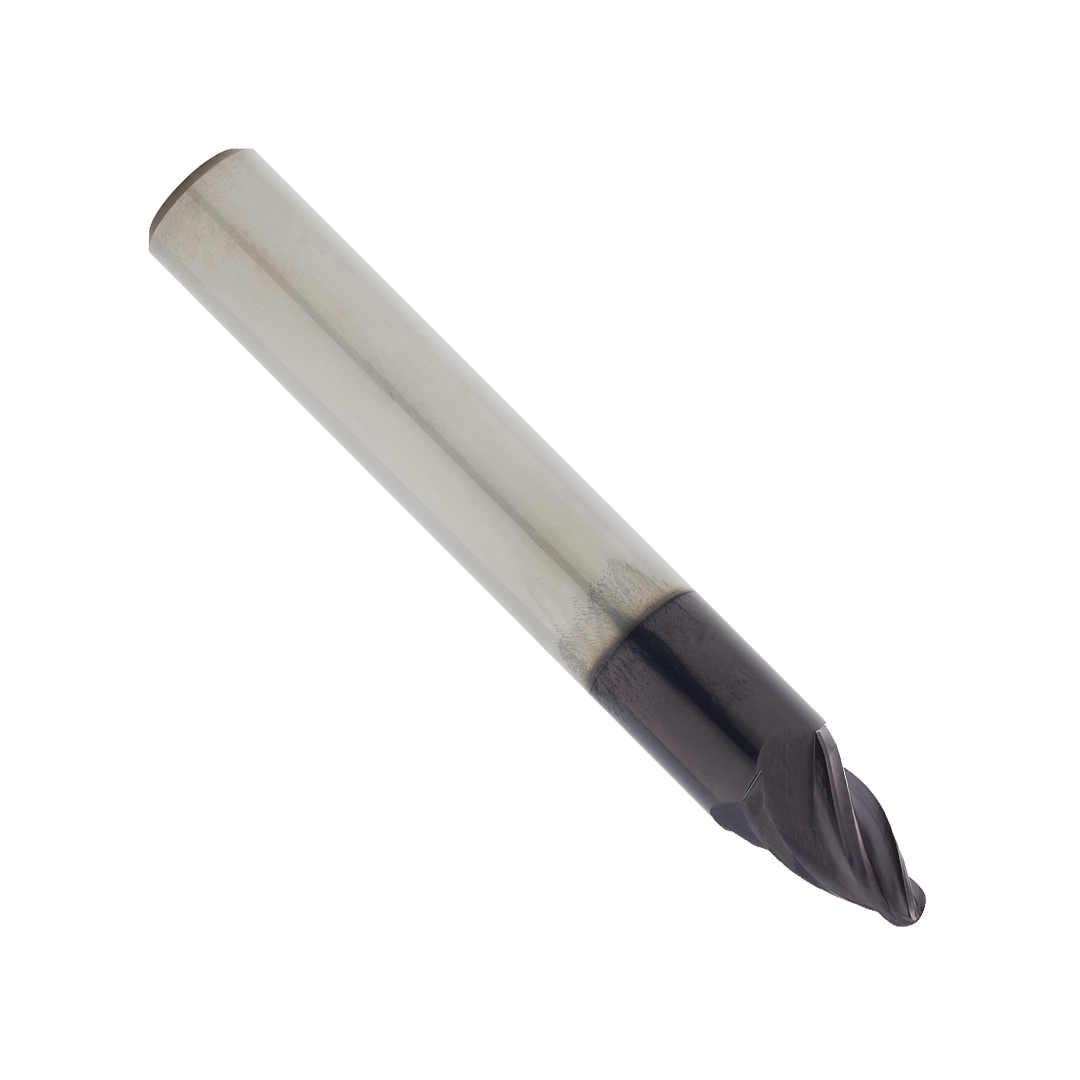

SC ENDMILL HXC30GL 4 160 11 28RM080 PHP920
1180051T1 | FRESA HXC30GL 4 160 11 28RM080 PHP920
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
- S
Corner radius (RE)
4 mm
Hand (HAND)
R
Grade (GRADE)
PHP920
Depth of cut maximum (APMX)
16 mm
Connection diameter (DCONMS)
16 mm
Cutting diameter (DC)
16 mm
Usable length (LU)
11 mm
Overall length (OAL)
110 mm
Profile radius (PRFRAD)
1200 mm
