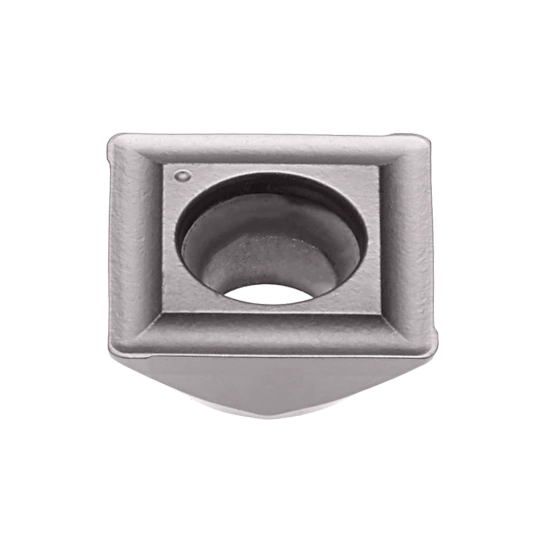

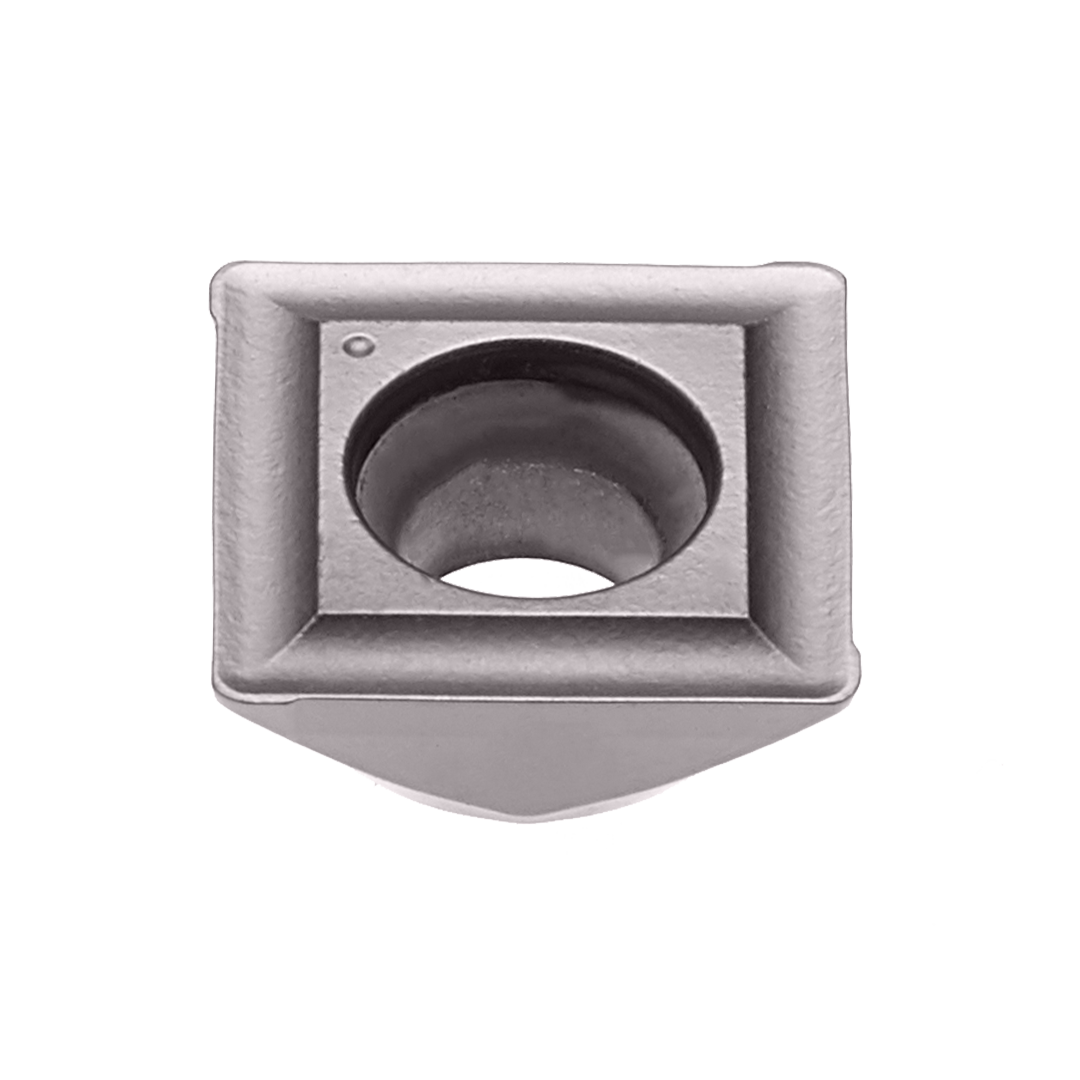

INSERT SOMT 11T308 PH7920
1112425G4 | PAST. SOMT 11T308 PH7920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Specialty Milling
Cutting edge count (CEDC)
4

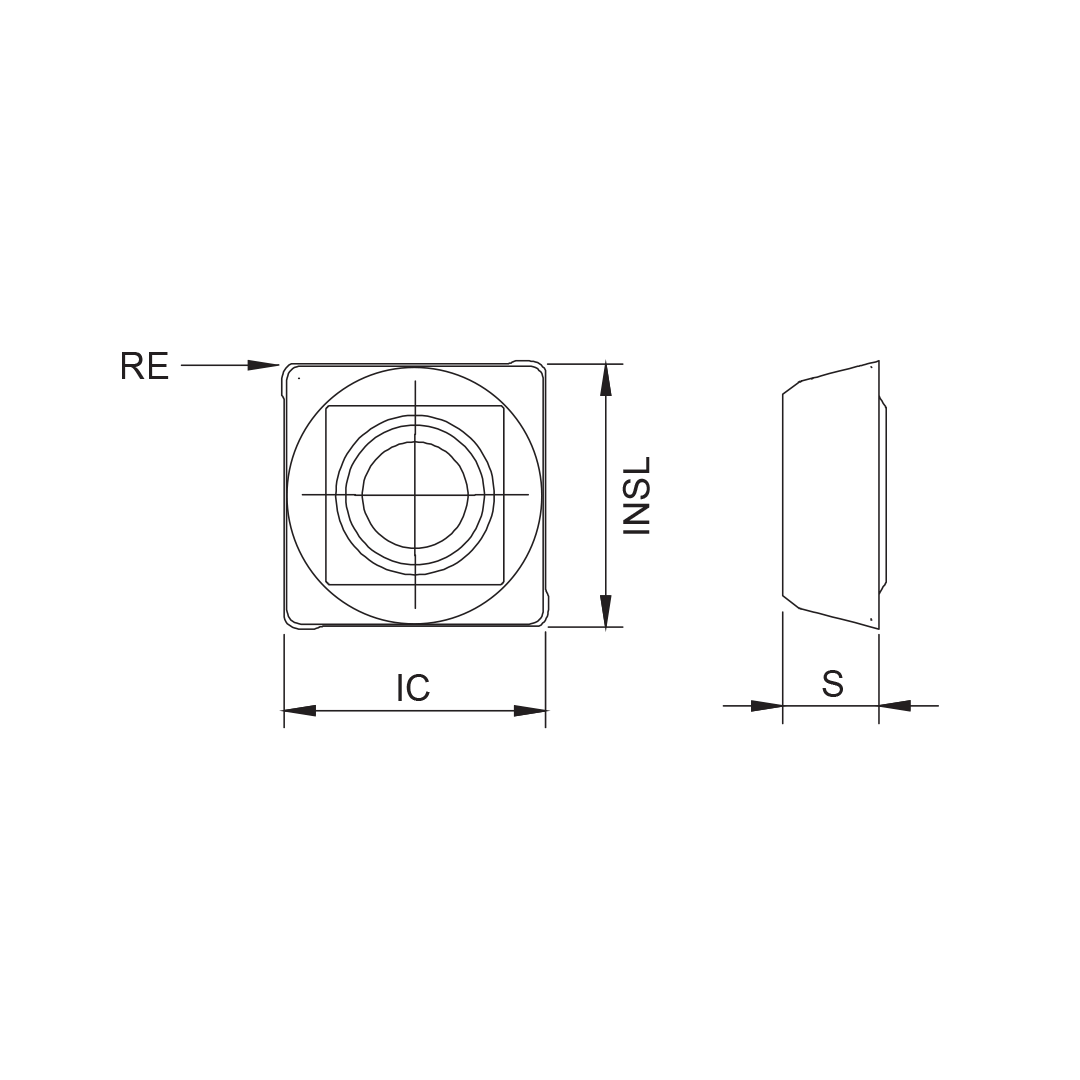

Inscribed circle diameter (IC)
10.85 mm
Insert shape code (SC)
S
Corner radius (RE)
0.8 mm
Hand (HAND)
N
Grade (GRADE)
PH7920
Insert thickness (S)
4.02 mm
Chip breaker manufacturer's designation (CBMD)
08
Fixing hole diameter (D1)
0.1732 mm
Insert length (INSL)
11 mm
Tolerance class insert (TCINS)
M
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
