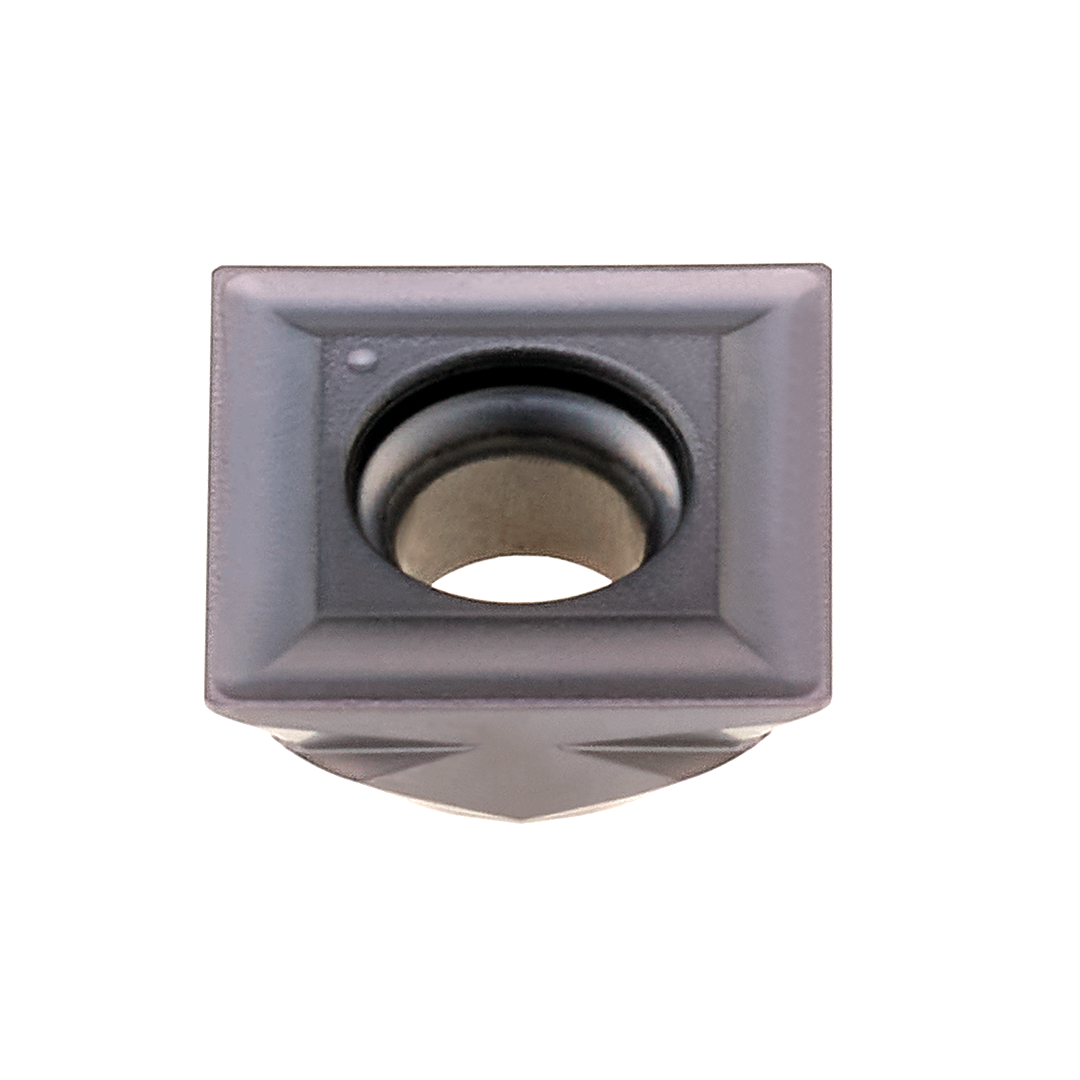

INSERT SOGT 11T303 PH7920

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

1112973G4 | PAST. SOGT 11T303 PH7920

Technical flyer

Product data

Material classification level 1 (TMC1ISO)

Operation type (CTPT)

Specialty Milling

Cutting edge count (CEDC)

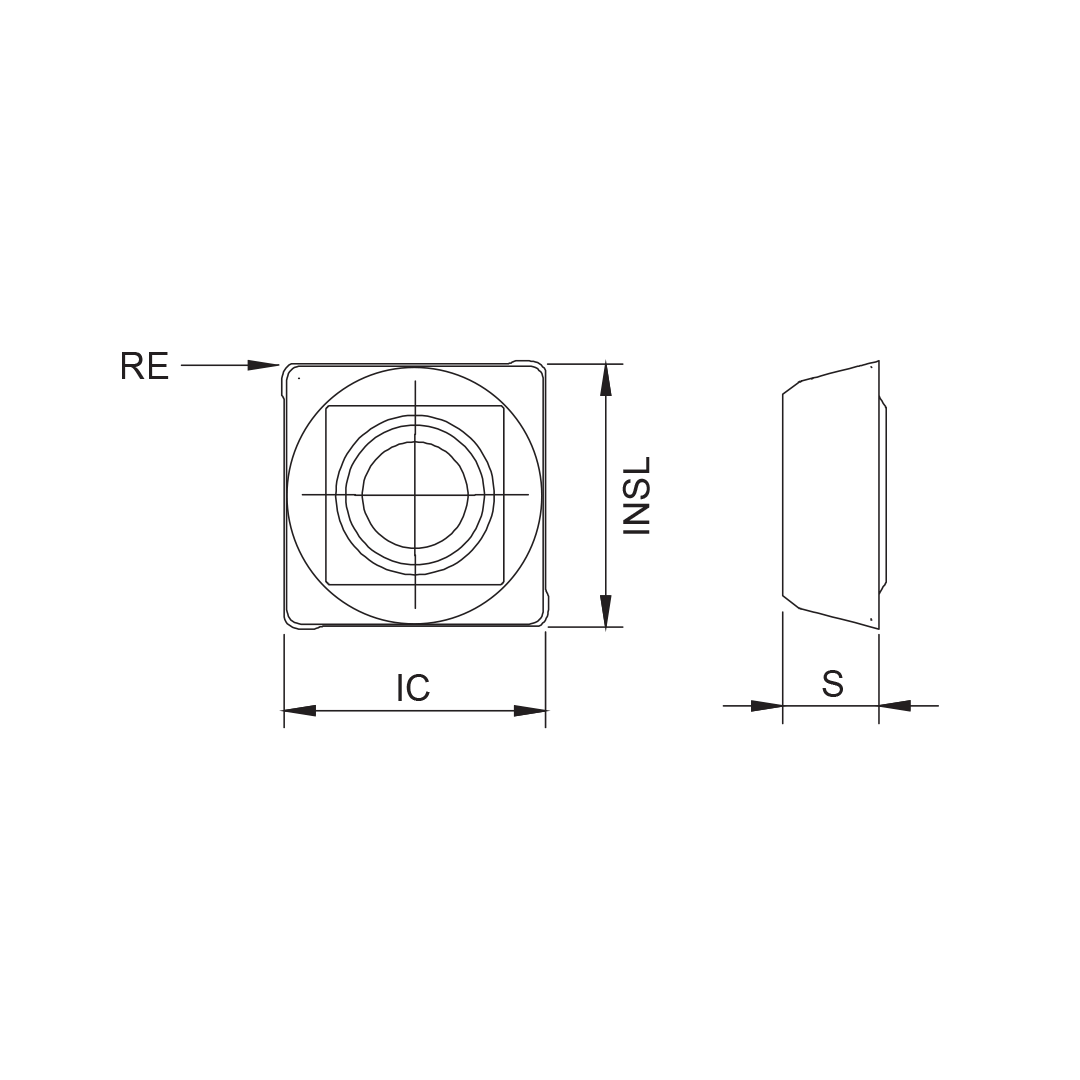

Inscribed circle diameter (IC)

10.85 mm

Insert shape code (SC)

Corner radius (RE)

0.3 mm

Hand (HAND)

Grade (GRADE)

PH7920

Insert thickness (S)

4.02 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

0.1732 mm

Insert length (INSL)

11 mm

Tolerance class insert (TCINS)
