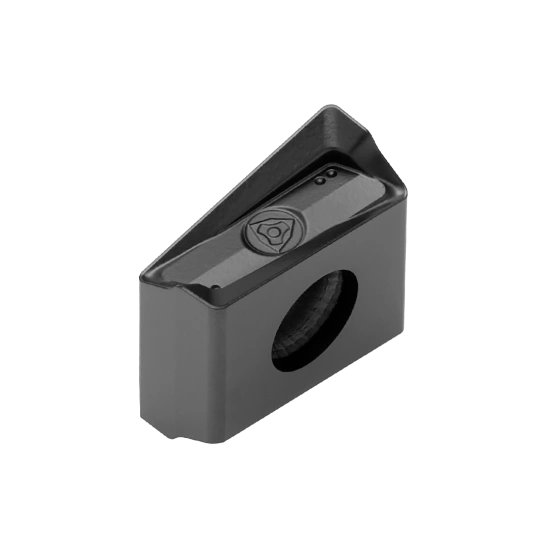

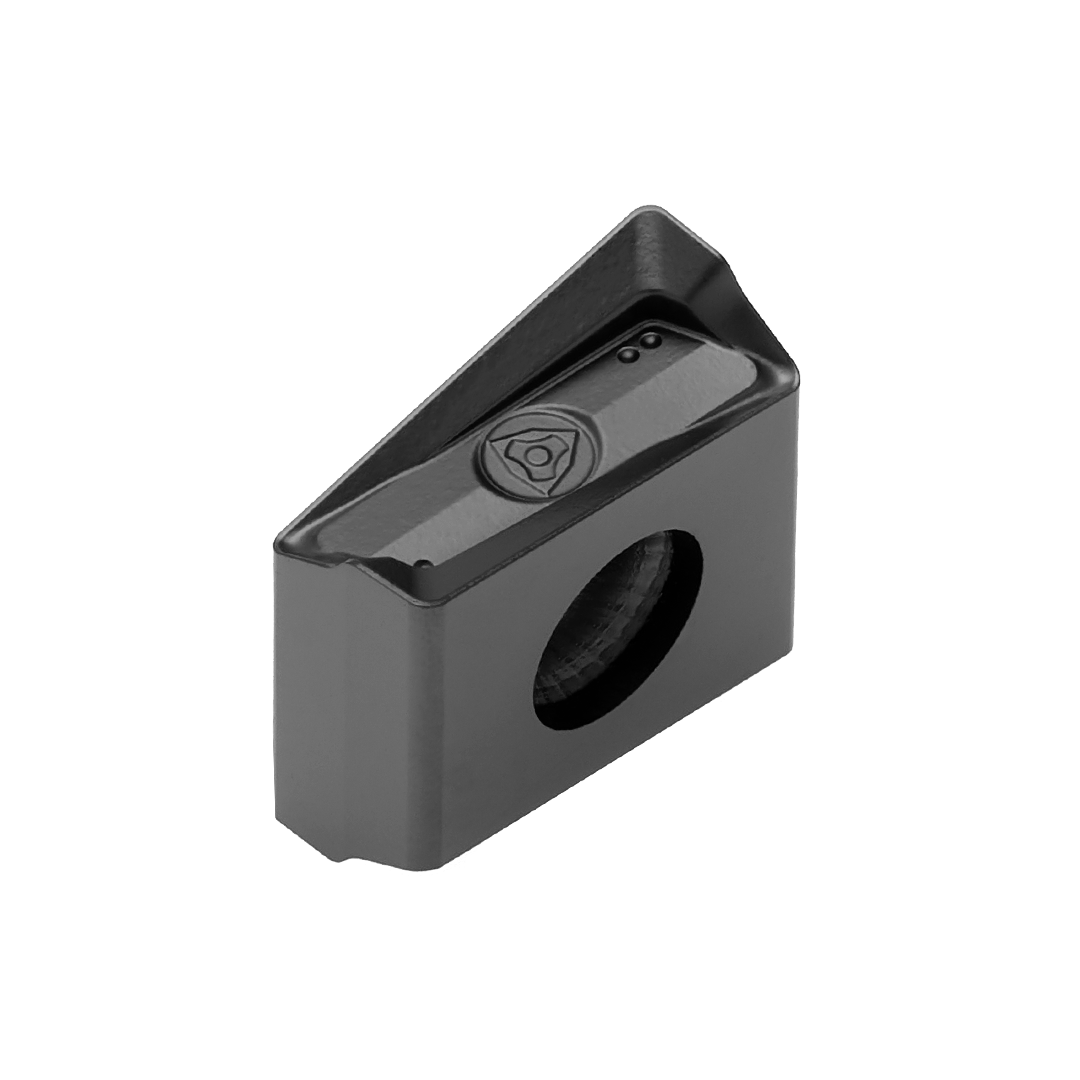

INSERT LNXT 150612 PNER-MP PH5740

1111590L9 | PAST. LNXT 150612 PNER-MP PH5740

Product data

Material classification level 1 (TMC1ISO)

Operation type (CTPT)

Shoulder Milling

Cutting edge count (CEDC)

Insert shape code (SC)

Corner radius (RE)

1.2 mm

Hand (HAND)

Grade (GRADE)

PH5740

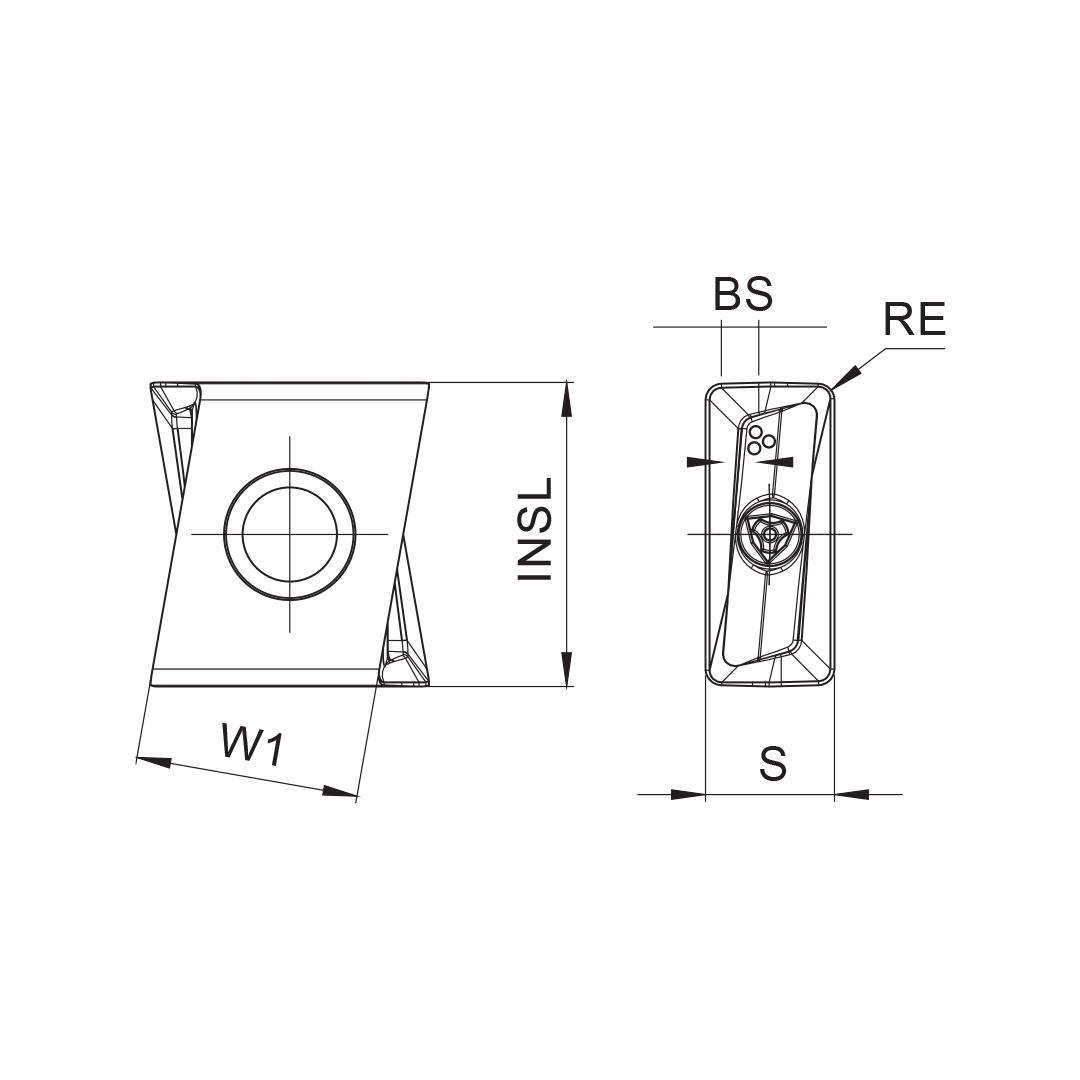

Insert thickness (S)

6.35 mm

Wiper edge length (BS)

1.8 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

0.5906 mm

Tolerance class insert (TCINS)

VC (m/min) (120 - 260)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (1.2 - 14)
