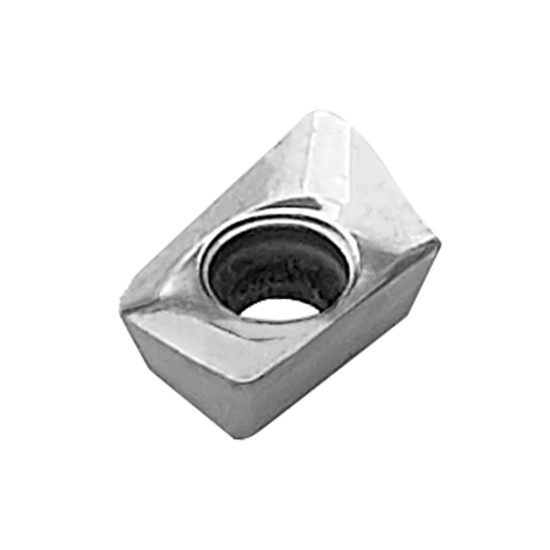

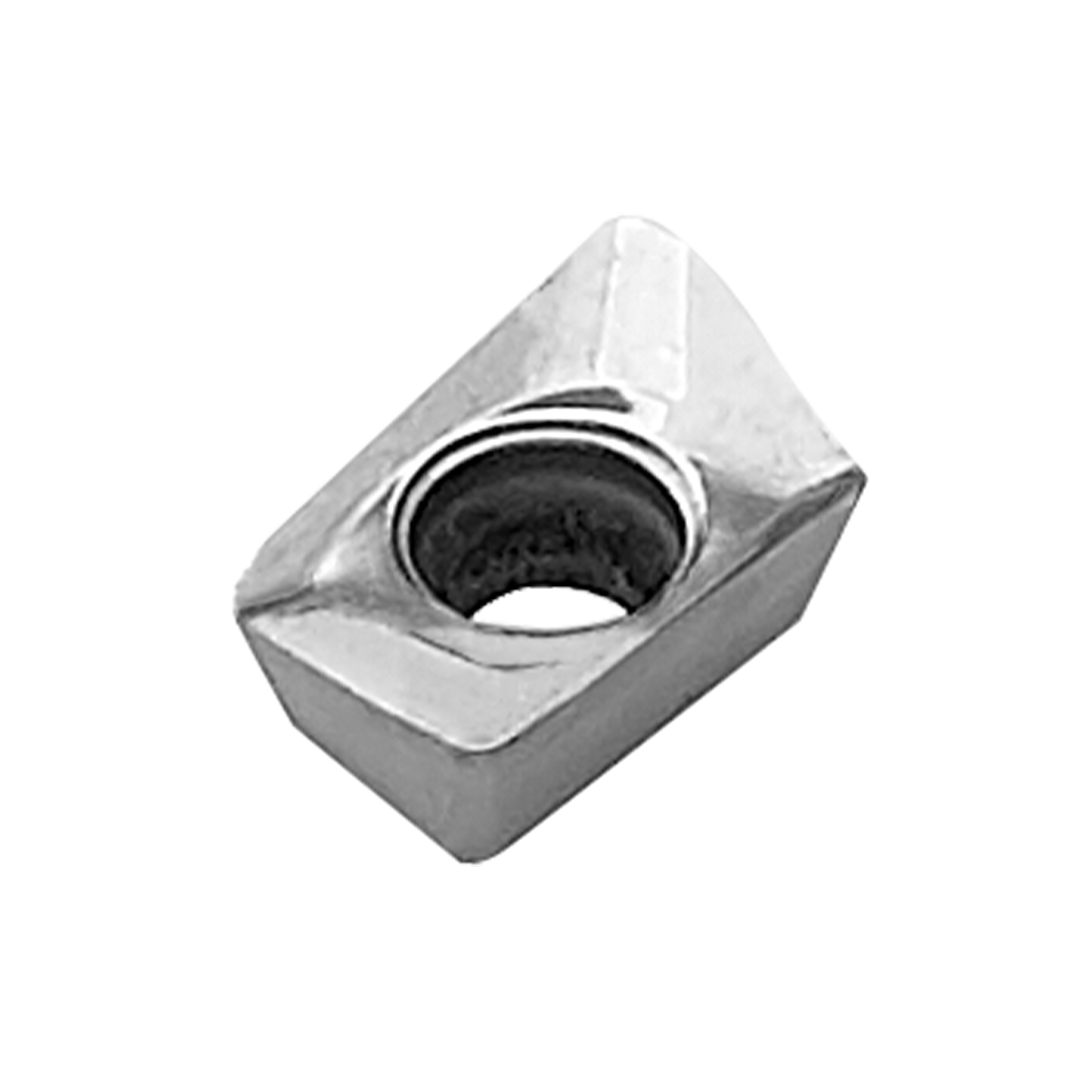

INSERT XPET 060204 PDFR-LN PH0910
111258010 | PAST. XPET 060204 PDFR-LN PH0910
Product data
Material classification level 1 (TMC1ISO)
- N
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
2
Insert shape code (SC)
X
Cutting edge effective length (LE)
5.1 mm
Corner radius (RE)
0.4 mm
Hand (HAND)
R
Grade (GRADE)
PH0910
Insert thickness (S)
2.4 mm
Wiper edge length (BS)
0.8 mm
Chip breaker manufacturer's designation (CBMD)
LN
Fixing hole diameter (D1)
0.0756 mm
Insert length (INSL)
0 mm
Tolerance class insert (TCINS)
E
Start values
- N
VC (m/min) (100 - 2000)
FZ (mm/t) (0.05 - 0.07)
AP (mm) (0.4 - 4)
FZ (mm/t) (0.05 - 0.07)
AP (mm) (0.4 - 4)
