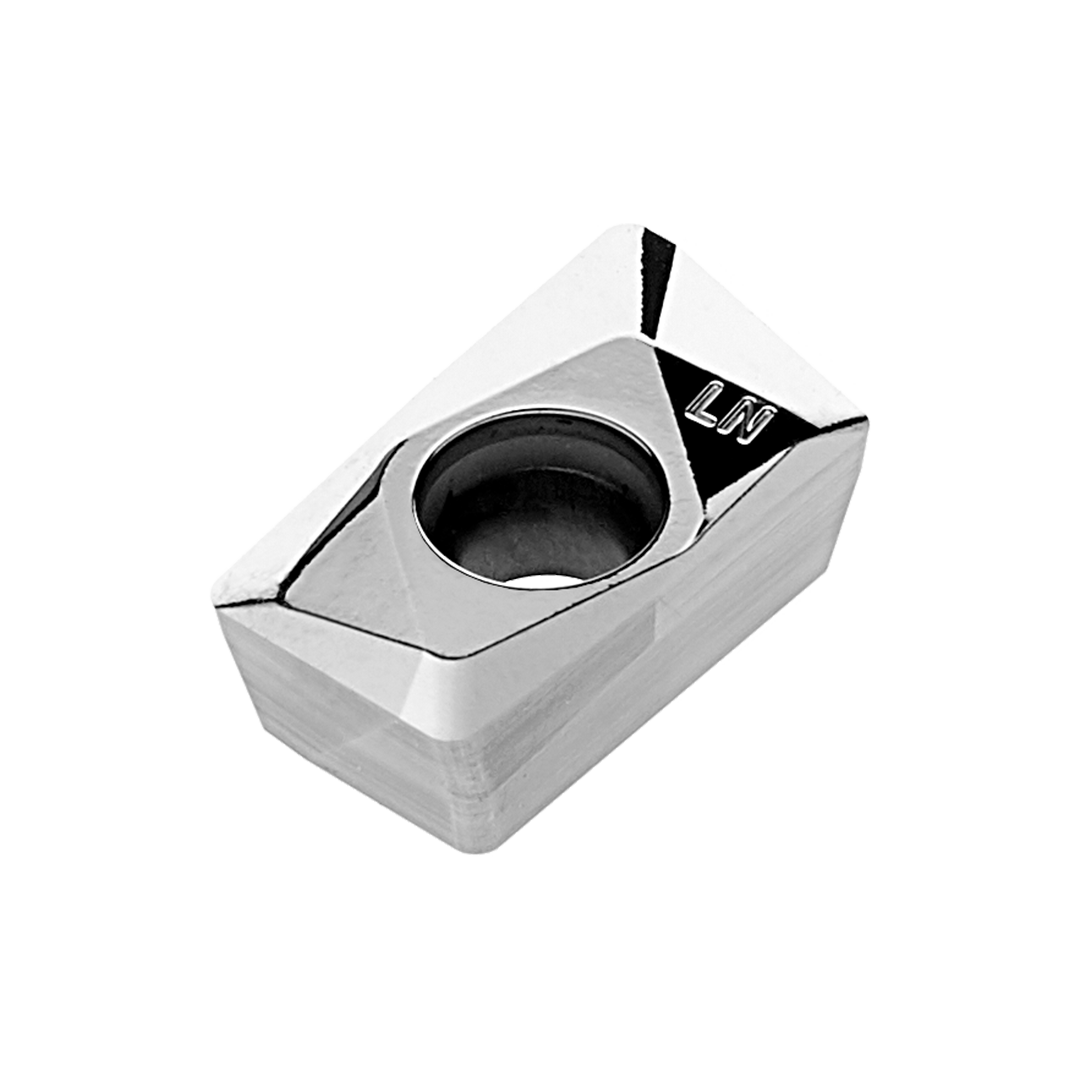

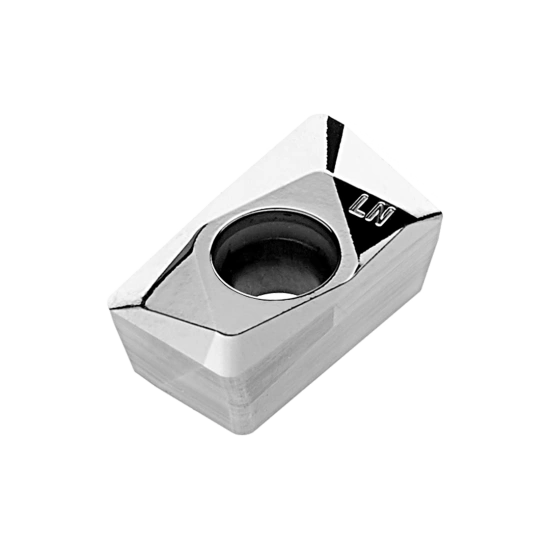

INSERT APKT 160408 PDFR-LN PH0910
111192310 | PAST. APKT 160408 PDFR-LN PH0910
Product data
Material classification level 1 (TMC1ISO)
- N
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
2
Insert shape code (SC)
A

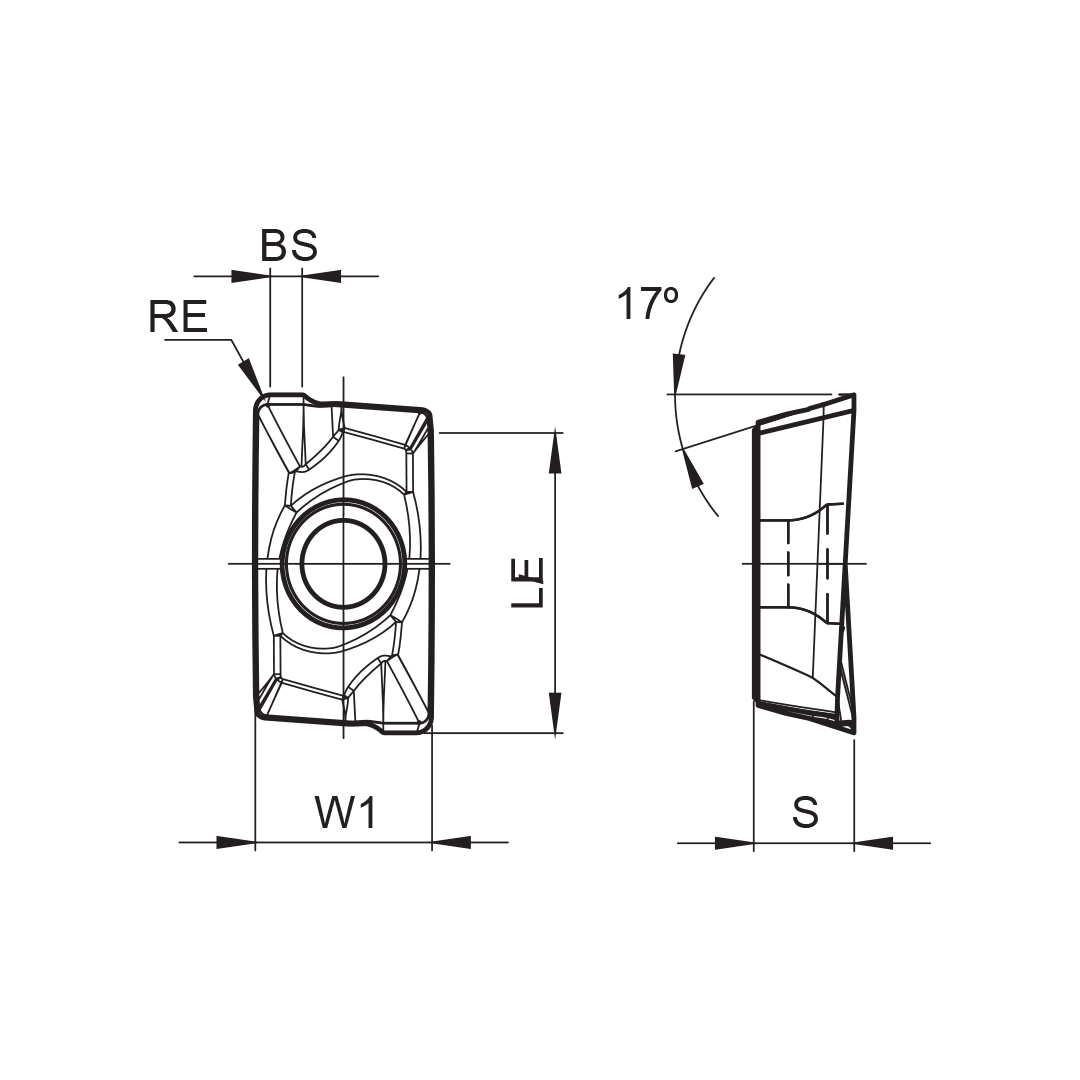

Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PH0910
Insert thickness (S)
5.35 mm
Chip breaker manufacturer's designation (CBMD)
LN
Fixing hole diameter (D1)
0.1732 mm
Tolerance class insert (TCINS)
K
Start values
- N
VC (m/min) (100 - 2000)
FZ (mm/t) (0.1 - 0.2)
AP (mm) (0.8 - 14.5)
FZ (mm/t) (0.1 - 0.2)
AP (mm) (0.8 - 14.5)
