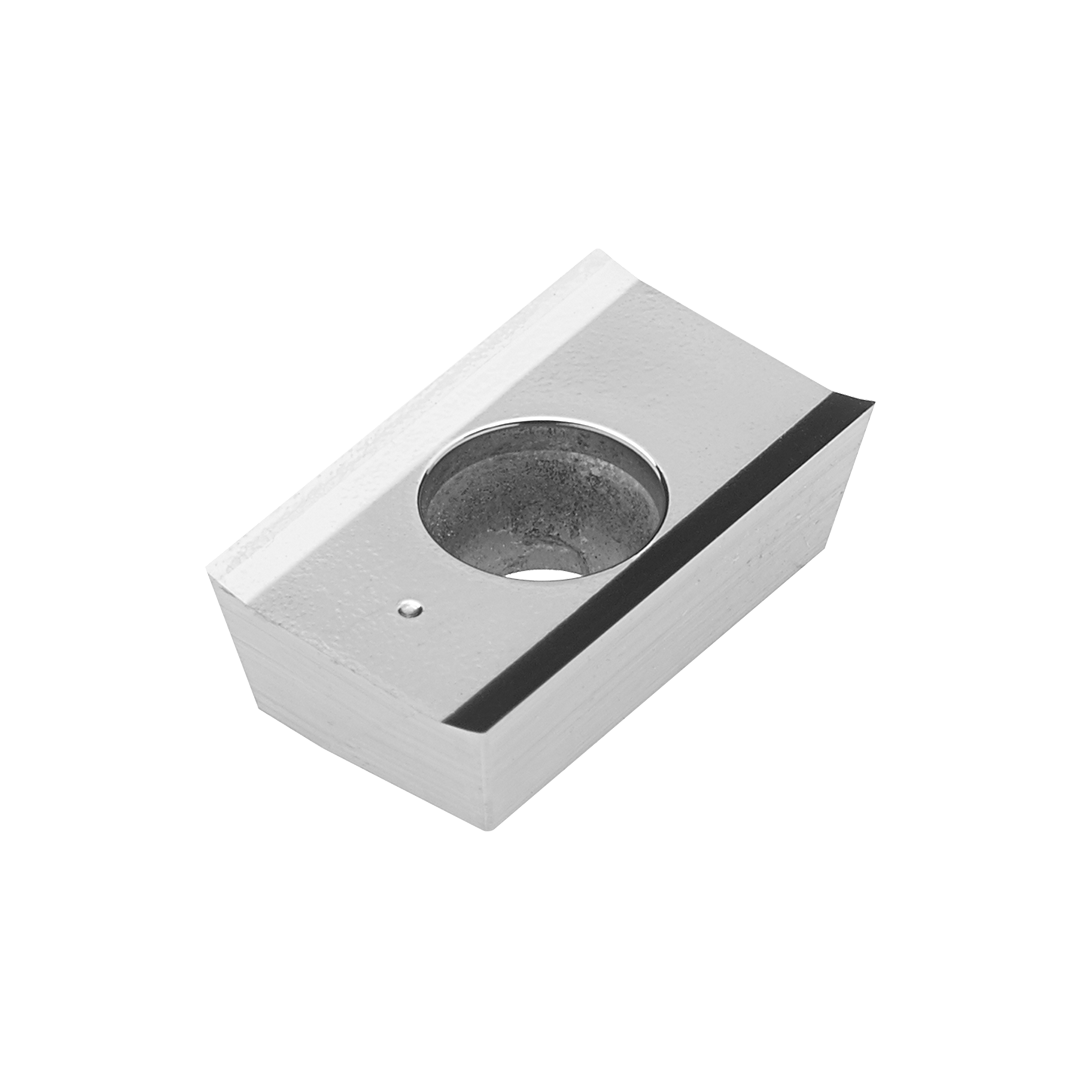

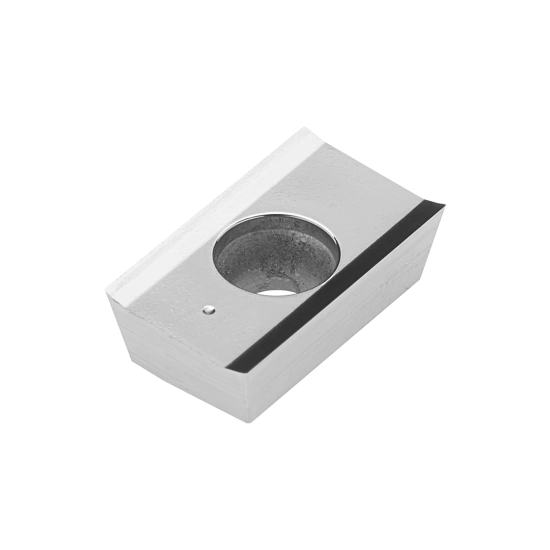

INSERT APHT 1604 PDFR-LN PH0910
111192410 | PAST. APHT 1604 PDFR-LN PH0910
Product data
Material classification level 1 (TMC1ISO)
- N
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
2
Insert shape code (SC)
A
Corner radius (RE)
0.2 mm
Hand (HAND)
R
Grade (GRADE)
PH0910

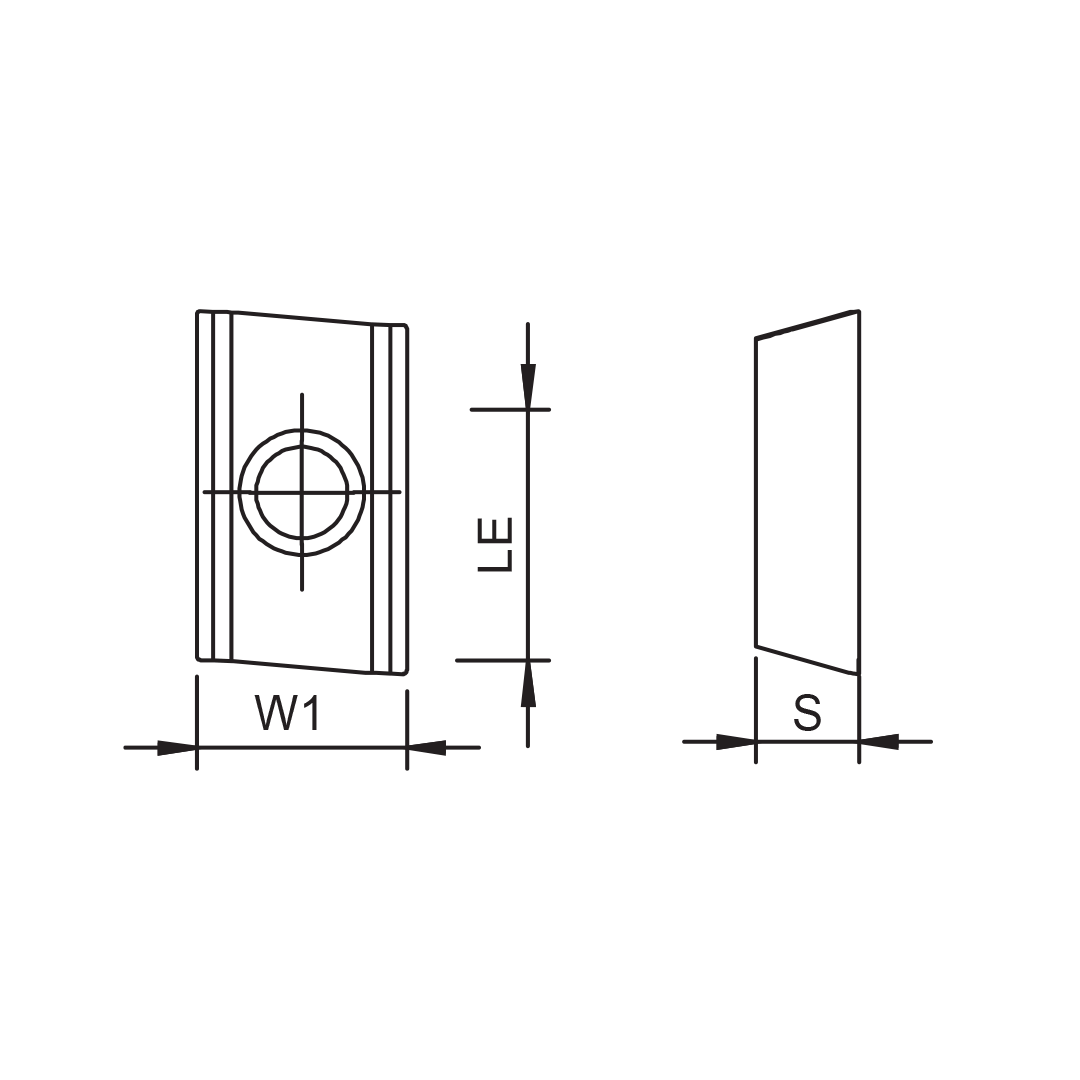

Insert thickness (S)
5.35 mm
Chip breaker manufacturer's designation (CBMD)
LN
Fixing hole diameter (D1)
0.1732 mm
Tolerance class insert (TCINS)
H
Start values
- N
VC (m/min) (100 - 2000)
FZ (mm/t) (0.07 - 0.2)
AP (mm) (1.6 - 14.5)
FZ (mm/t) (0.07 - 0.2)
AP (mm) (1.6 - 14.5)
